Page 92

Section 5 - Attachments
5-22
31200749
Mast Carriage
Use Mast Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-3.

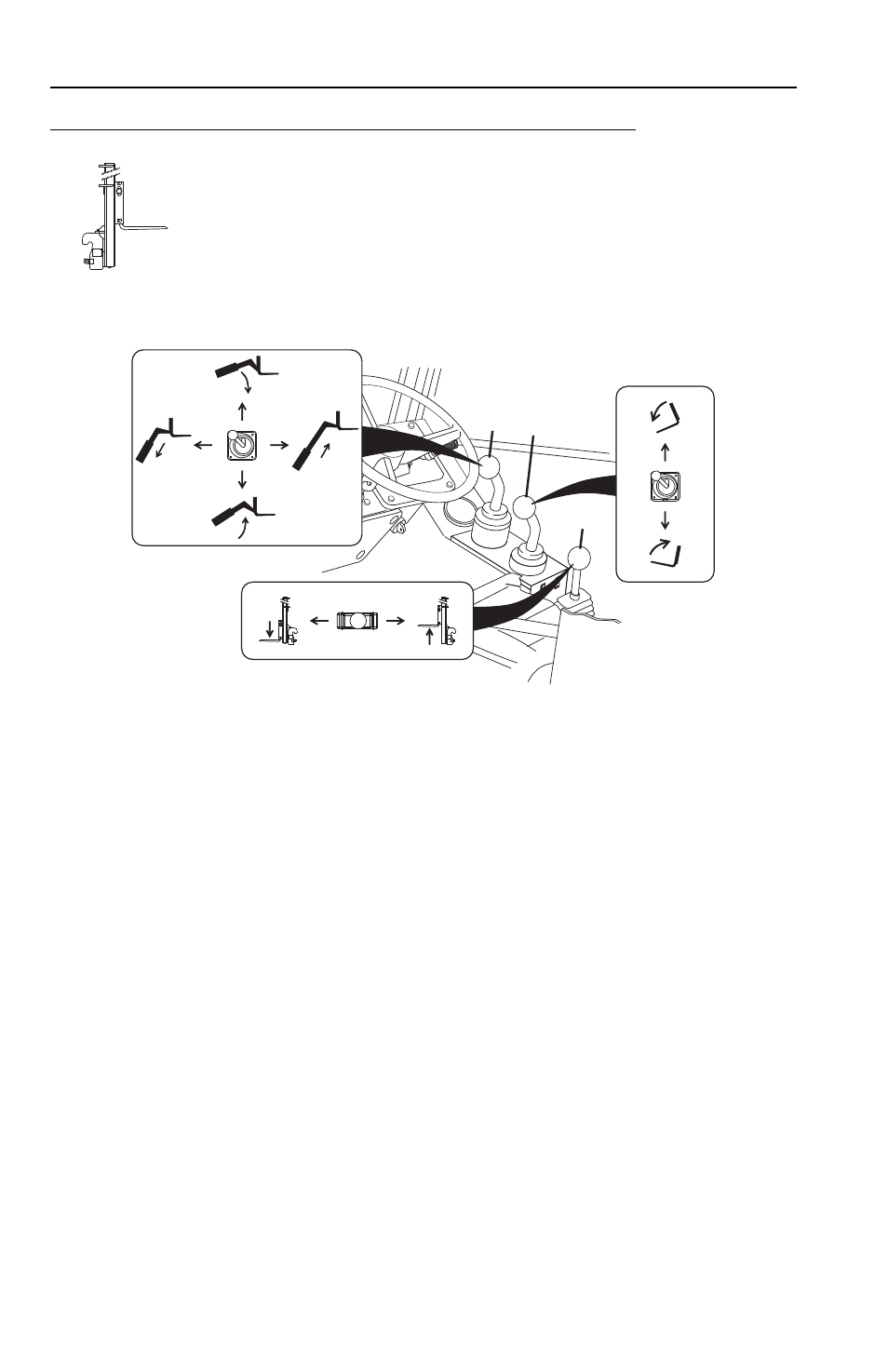

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Raise/Lower Mast:
The auxiliary hydraulic joystick (3) controls the raise/lower movement of the mast.
• Move joystick left to lower.
• Move joystick right to raise.
Installation Procedure:
Refer to “Attachment Installation” on page 5-10.
OY0580
OH4490
2
1
3
