Section 5 - Attachments
5-10
31200749
5.6
ATTACHMENT INSTALLATION

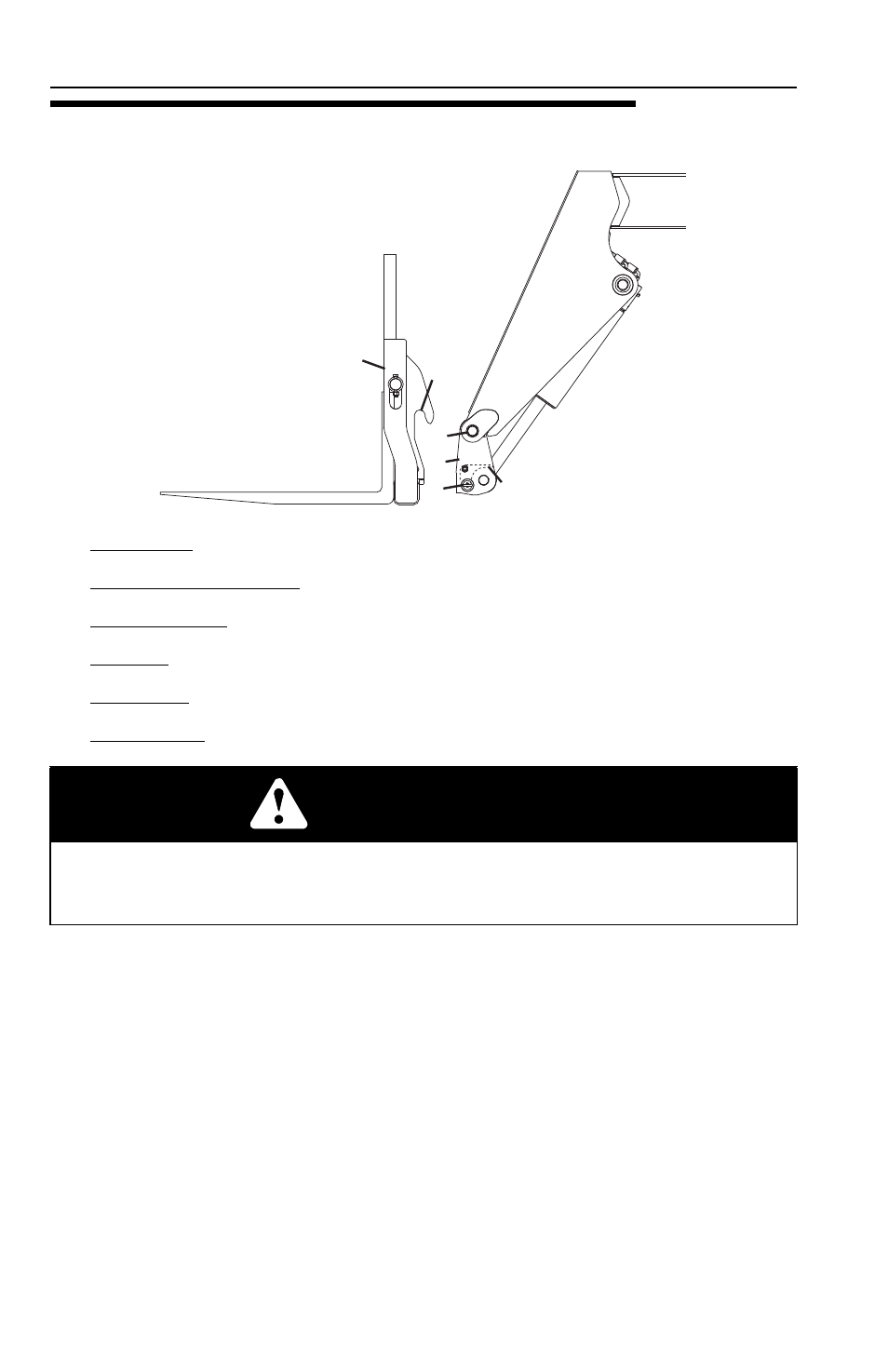

1. Attachment
2. Attachment Pin Recess
3. Attachment Pin
4. Lock Pin
5. Lock Lever
6. Quick Attach (attachment tilt control in cab, see page 3-11)
WARNING
CRUSH HAZARD. Always be certain that carriage or attachment is properly
positioned on boom and is secured by lock pin and lock lever. Failure to ensure
proper installation could permit carriage/attachment/load to disengage.
OH4430
4
5
3
6
1
2
