Section 5 - Attachments
5-20 31200749
Dual Fork Positioning Carriage
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-3.

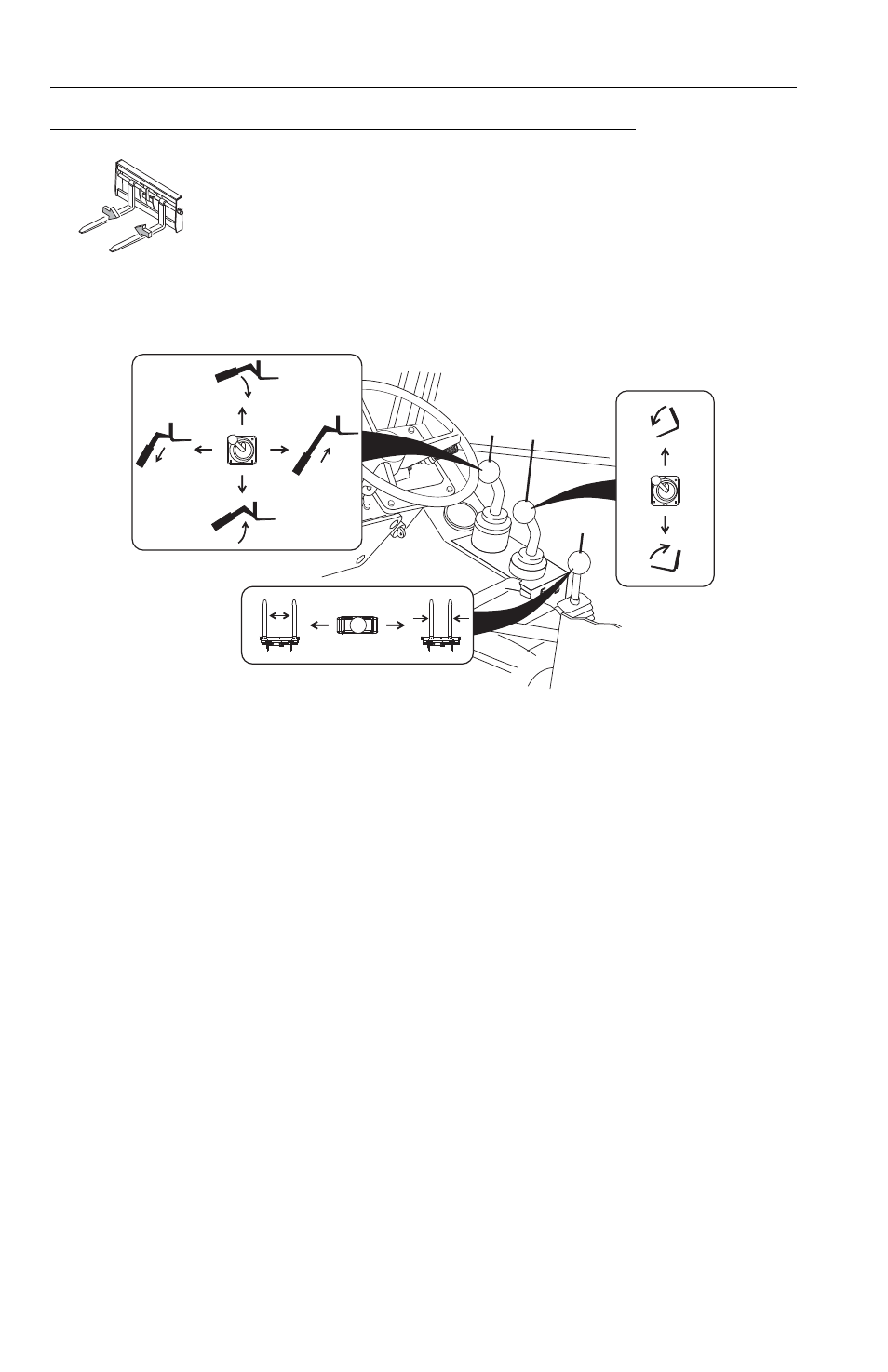

The boom joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt joystick (2) controls fork tilt.
• Move joystick back to tilt up.
• Move joystick forward to tilt down.
To Fork Position:
The auxiliary hydraulic joystick (3) controls the swing function.
• Move joystick left to shift forks out.
• Move joystick right to shift forks in.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-10.
