Section 3 - Controls and Indicators
3-4
31200749

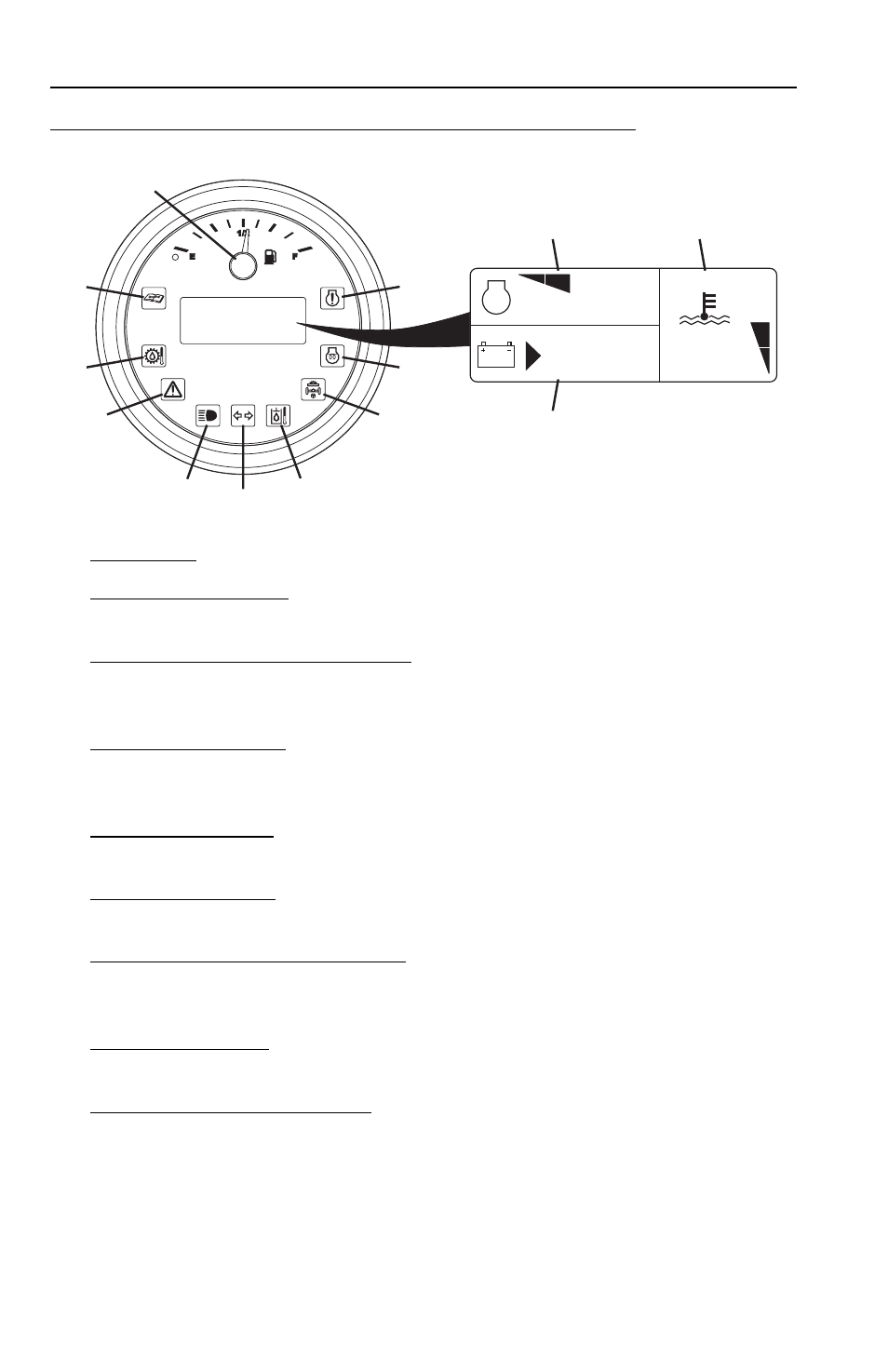

Instrument Cluster
1. Fuel Gauge: Indicates amount of fuel in fuel tank.
2. Maintenance Indicator: Illuminates when maintenance is required. See Service
Manual for details.
3. Transmission Temperature Indicator: Illuminates when transmission oil
temperature is too high. Stop and idle engine with transmission in neutral,
allowing time for cooling. If light remains on, shut-down engine.
4. System Distress Light: Illuminates when an issue with the fuel level or machine
system is present. Flashes when an issue with the machine charge system is
present.
5. High Beam Indicator (if equipped): Illuminates while high beam lights are
activated.
6. Turn Signal Indicator (if equipped): Illuminates and flashes while turn signals or
hazard lights are activated.
7. Hydraulic Oil Temperature Indicator: Illuminates when hydraulic oil temperature
is too high. Stop and idle engine, allowing time for cooling. If light remains on,
shut-down engine.
8. Stabil-Trak Indicator (6042, 8042, 10042 & 10054): Illuminates when Stabil-Trak
system has been activated. See page 3-16.
9. Engine Pre-Heat Indicator Light: Illuminates with ignition key in position 1. Light
goes out when start temperature is reached.
(If equipped for ULS) Pre-heat indicator will flash and fault code will appear on
instrument cluster display during starter lockout. Return ignition switch to
position 1 for a minimum of two minutes to allow system to reset before trying to
start again.
