FITTING PROCEDURE

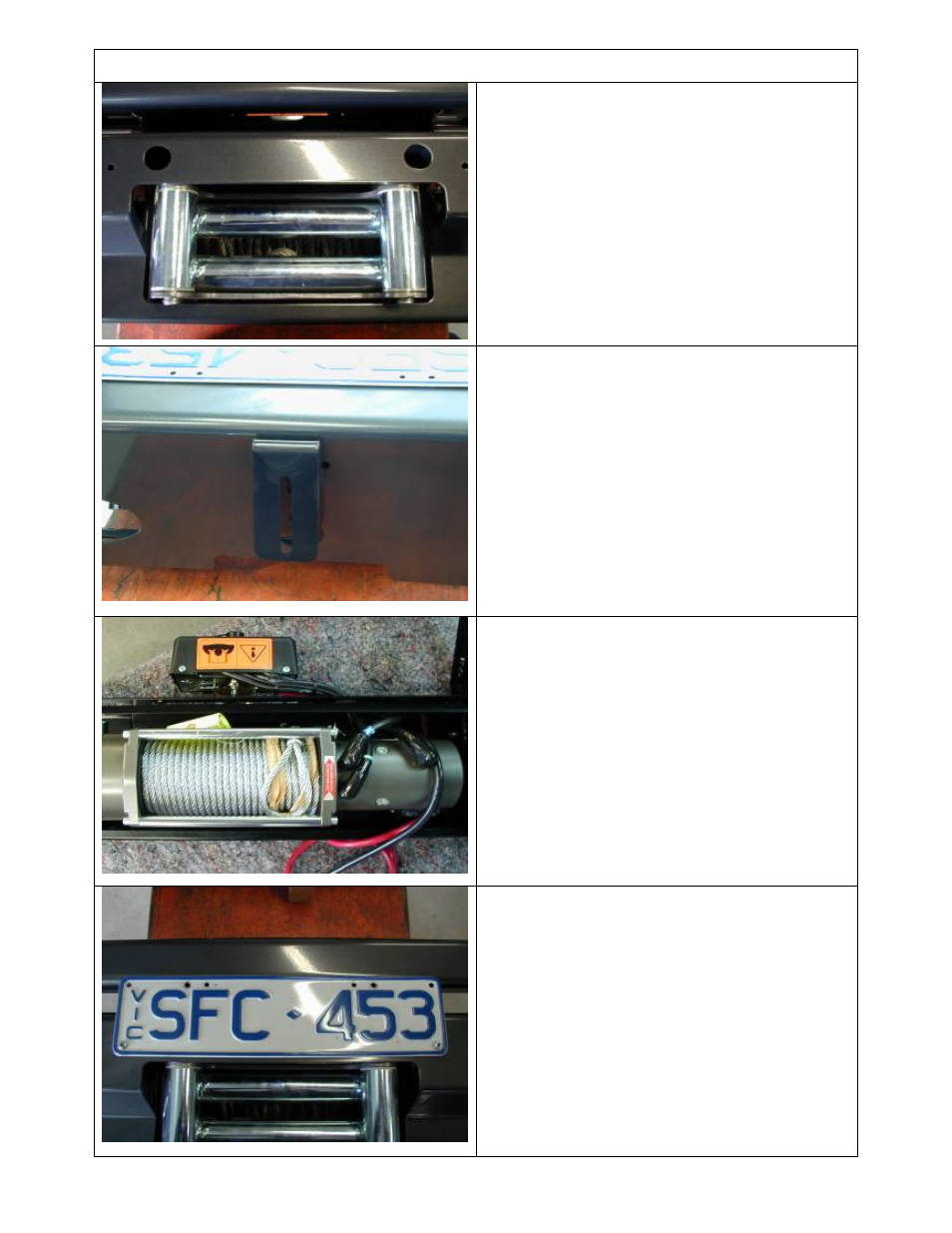

25. Position the roller fairlead, and remove the
circlips from the lower of the vertical rollers
and push the pins up to give access to the
lower bolts.
26. Fix the roller fairlead to the bar using the 1
¾” x 3/8” bolts, spring and flat washers
27. Fit the control box bracket to the bull bar
using two M8 x 20mm bolts, M8 flat washers
and M8 flange nuts.
28. Fit the control box to the control box bracket
and connect the power cables to the winch as
per the winch instructions.
29. Connect the ground wire to the tension bar of
the winch.
CAUTION: Cable-tie all cables together and
keep all cables clear of sharp edges and all
moving parts.
30. Insert square grommets into holes in front of
bar for licence plate fixing. Place the double-
sided tape along the top edge of the number
plate. Using supplied black Hi-lo screws,
attach the licence plate to the bull bar.
NOTE: If winch is not fitted, licence plate can
be located lower on bar front to cover RFL
opening.
