FITTING PROCEDURE

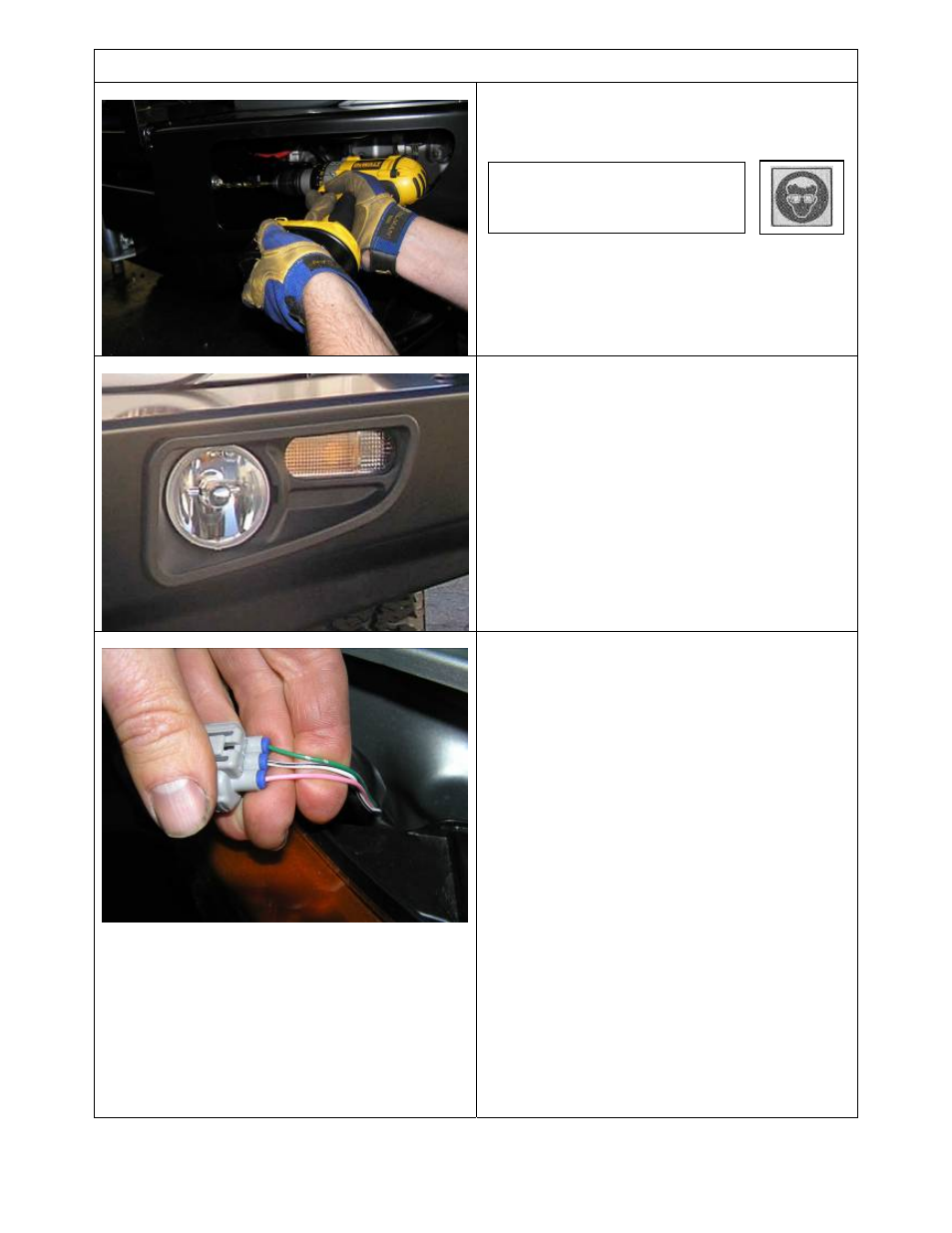

35. With the bull bar in position drill Dia10mm
pinning holes, one though pilot hole in mount
bracket and one through hole in upright for
both sides of mounts.
36. Fix in place using two M10 x 30mm SEMS
bolts, M10 Flat washers and M10 x 1.5 nuts
per side.
37. Assemble and install combination light
surrounds (P# 3163015) as per instructions
# 3786421 supplied with surround kit. Note:
Optional fog lamps can be installed at this
point as per fitting instruction #. 3783315
supplied with fog lamp kit # 6821201.
38. Wire the combination lamp to the vehicles
indicator and clearance lamps.
Caution: Cable tie all cables together and keep
all cables clear of sharp edges and moving
parts.
39. Wire up lights using loom extensions
supplied in fitting kit.
Wiring loom detail for flasher and clearance
lamps supplied standard with bullbar;
Red Clearance lamp
Green Flasher lamp
Black Ground
Wiring loom detail on FJ Cruiser;
LHS
Blue Flasher
Green Run
Wh/Blk Ground
RHS
Pink Flasher
Green Run
Wh/Blk Ground
NOTE: Other wiring detail supplied with
accessories.
Warning: Drilling operations can
result in flying metal debris,
safety glasses should be worn.
