FITTING PROCEDURE

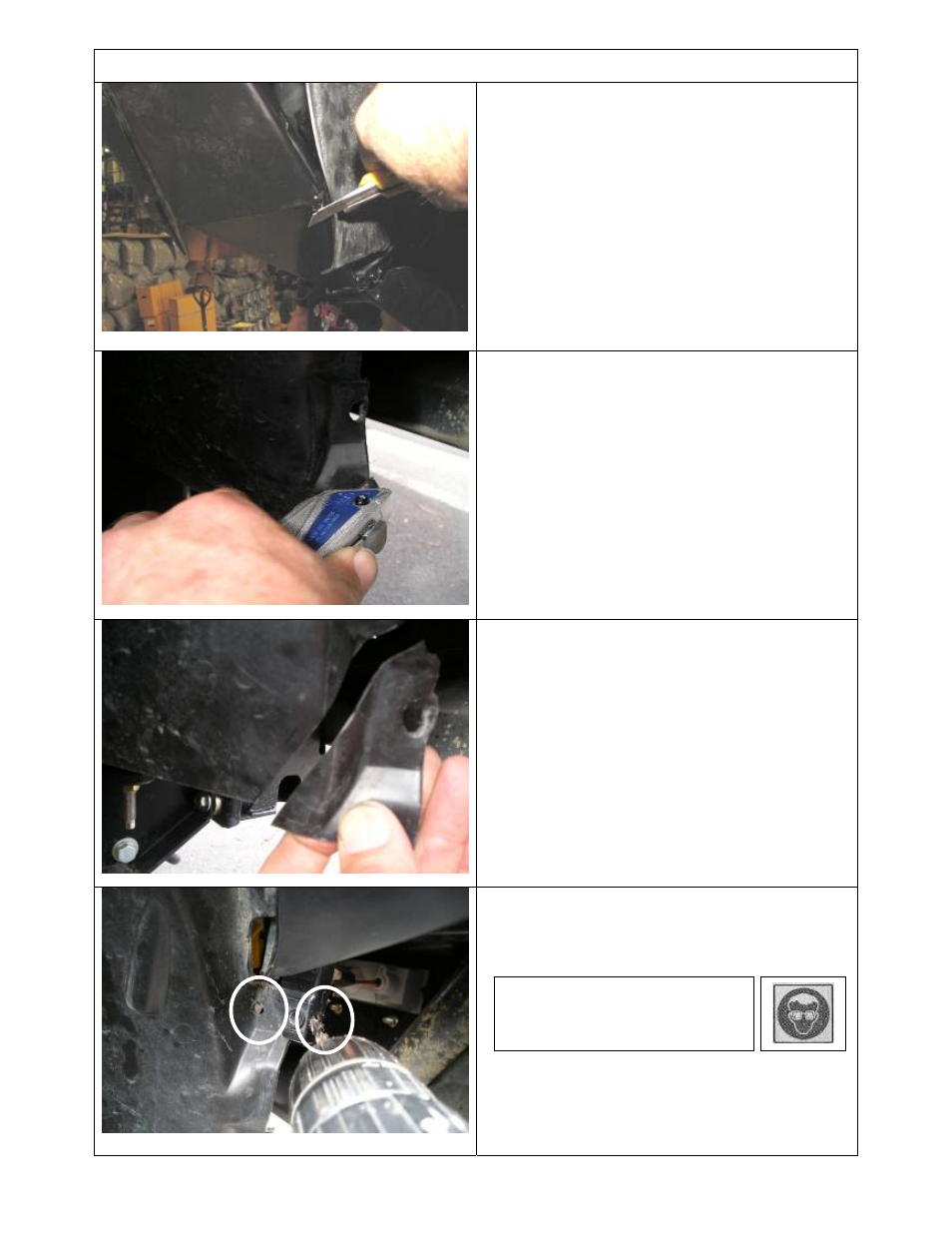

56. Trim fender liner to coincide with the
underside of the wing under panel lower face
as shown
If no wing panels are fitted...
57. Trim fender liner horizontally with sharp knife
approximately 30mm (1 ¼”) below hole as
shown.
58. Trim corner as shown.
59. Drill 7mm securing holes in the liner and the
plastic bracket arm as shown.
Warning: Drilling operations can
result in flying metal debris,
safety glasses should be worn.
