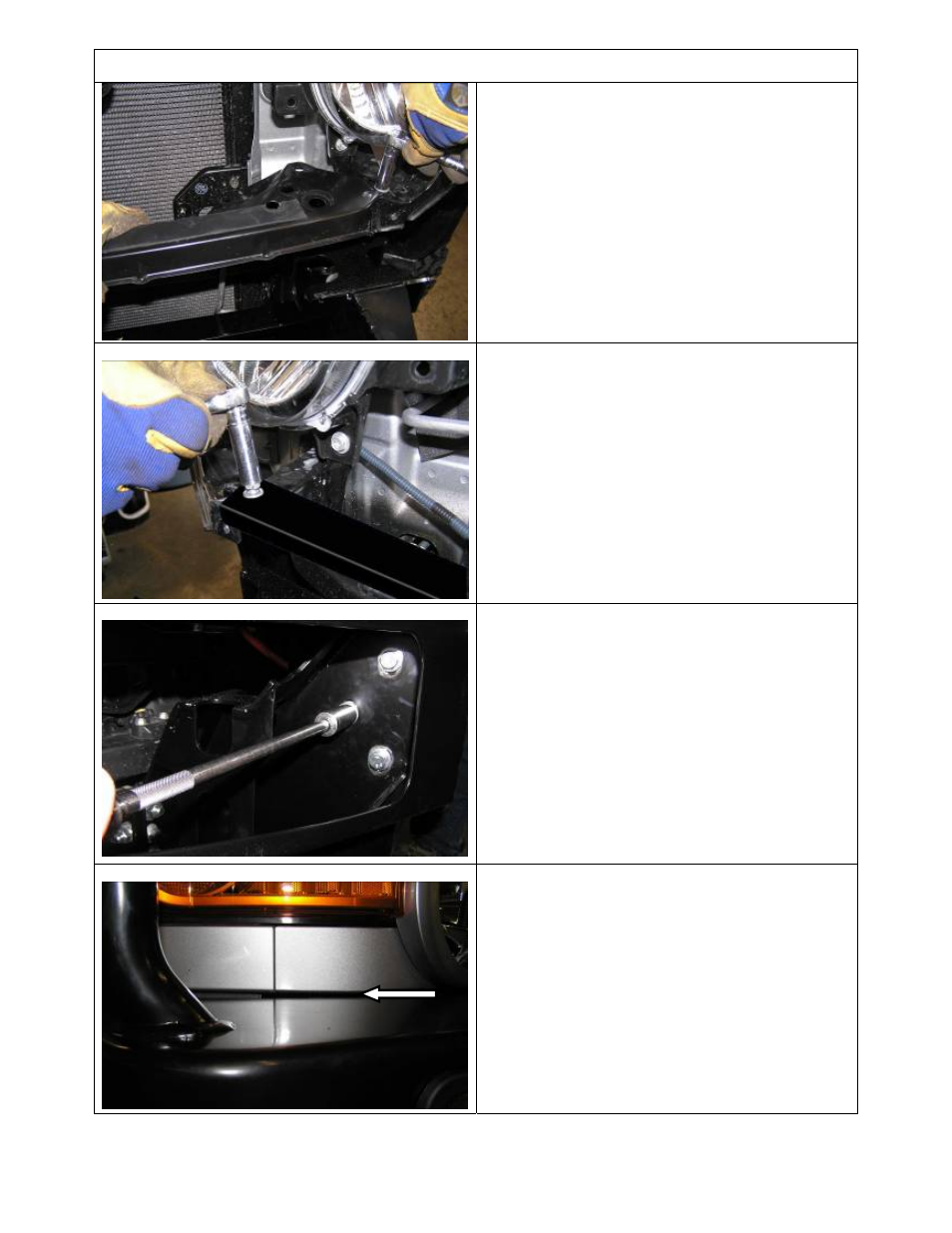

FITTING PROCEDURE
31. Remove original grille brace member. Retain
screws.
32. Fit supplied replacement brace and secure
with original fasteners
33. With the help of an assistant position the bull
bar on the chassis bracket and fix with six
M10 x 30mm bolts, M10 spring and flat
washers.
CAUTION: Nip up bolts, but do not tighten
them yet.
34. Position the bull bar so that there is an even
gap of approximately 5mm from the top face
of the bar to the underside of the body edge.
Then tighten all the bolts.
