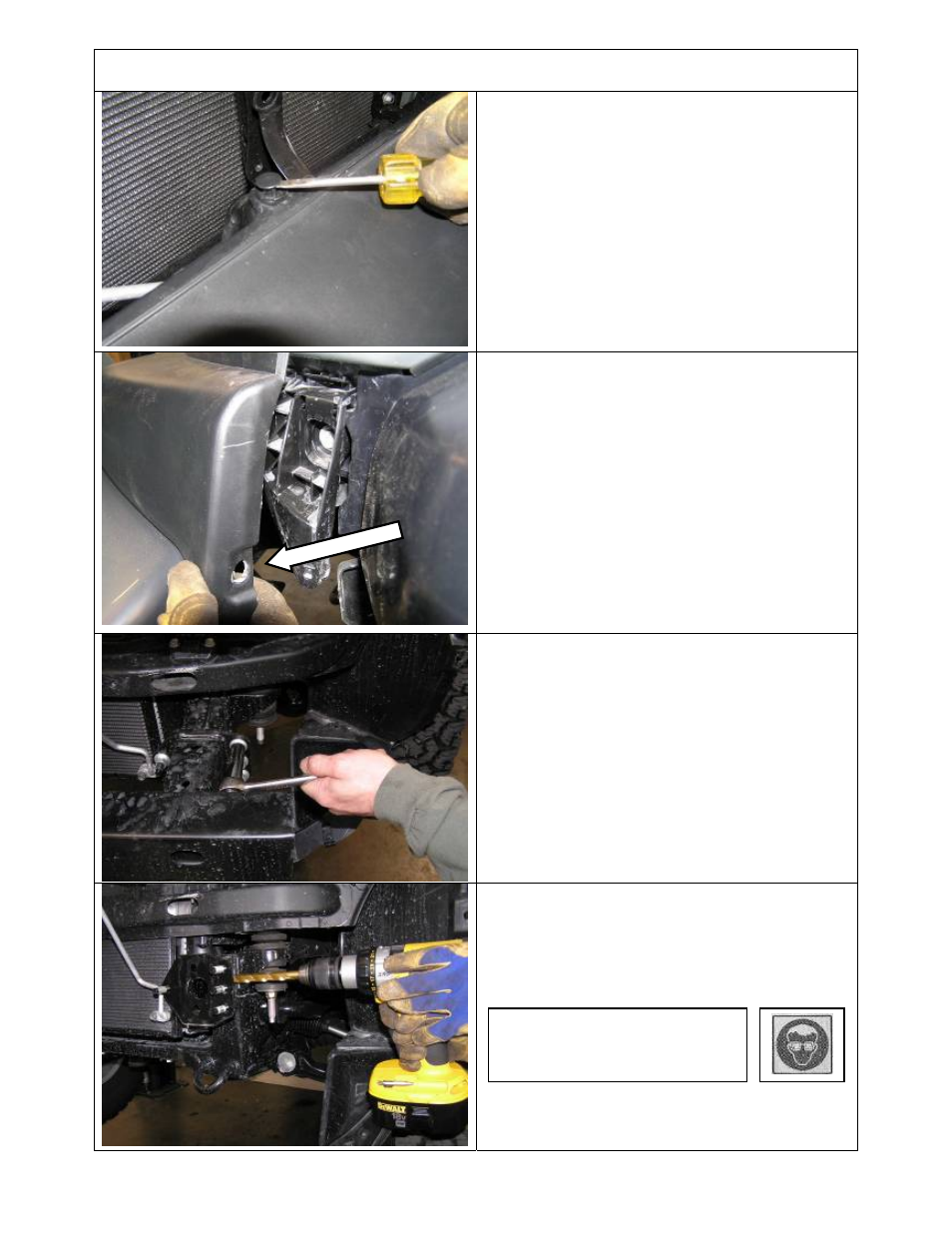

FITTING PROCEDURE
5. Remove plastic rivets along top of bumper
6. Remove screw then remove front bumper
cover from vehicle.
NOTE: Prise the rear lip of the bumper off the
retaining spigot where screw was located (as
shown with arrow) then pull bar wing outward
.
7. Remove front bumper reinforcing bar.
NOTE: Retain the 8 x flange nuts removed for
fitment of the bull bar chassis mount.
8. Using the 13mm drill bit and power drill, drill
out the M8 captive nut located at the outboard
side of the chassis as shown, on both sides of
the vehicle.
Warning: Drilling operations can
result in flying metal debris,
safety glasses should be worn.
