FITTING PROCEDURE

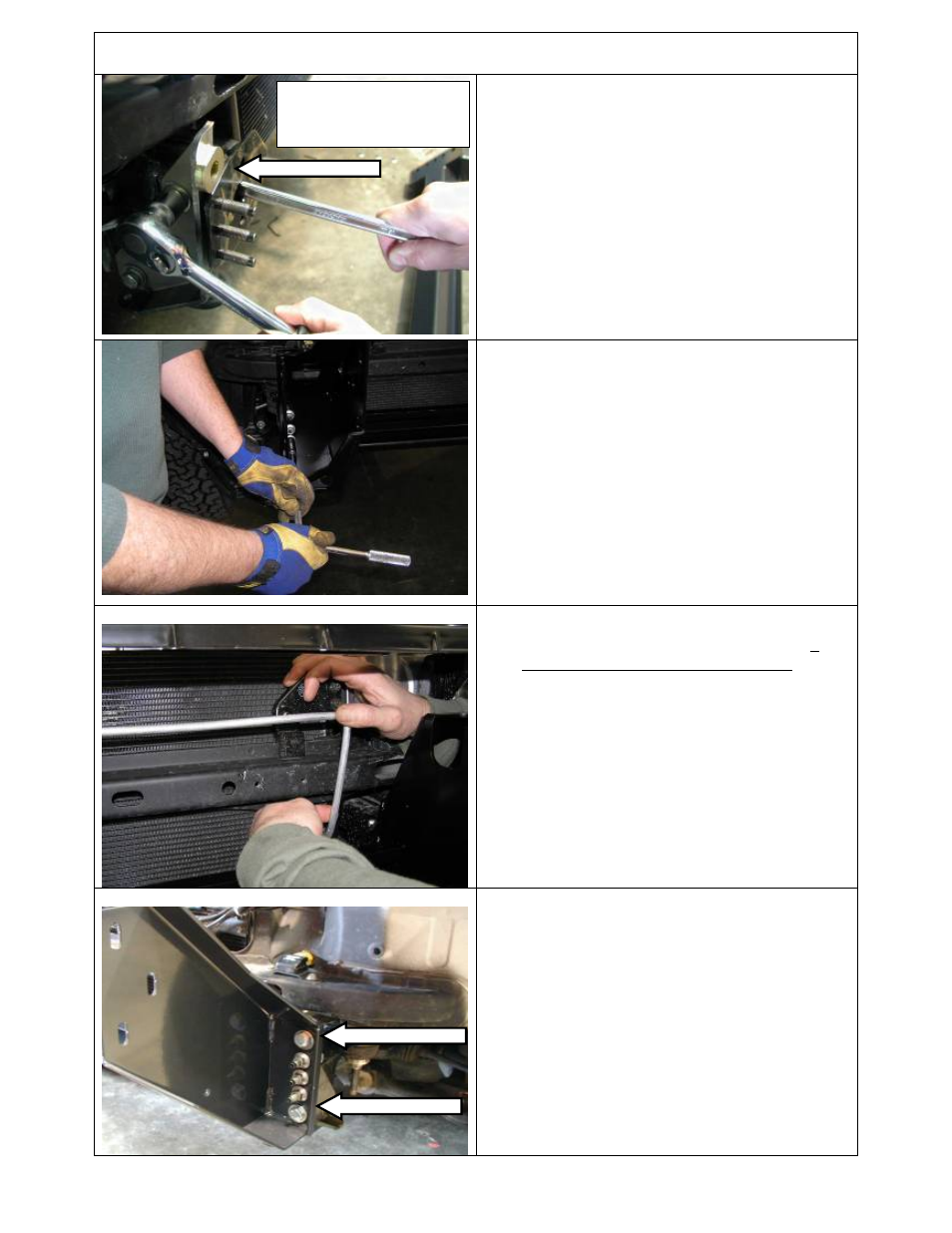

13. Hold the 8mm spacer against the chassis
mount brace forward facing surface and
position the brace so that the spacers sit just
below the surface of the chassis front face.
Tighten the bolts.
14. If fitting the bar to an Australian delivered
vehicle, please refer now to fitting instructions
#3787967 to relocate the power steering
lines. If not proceed to the next step.
15. Fit the chassis mount bracket to the chassis
using the original flange nuts removed with
the bumper reinforcing bar. Centre the
chassis mount bracket and tighten.
CAUTION: When fitting the Chassis mounting
bracket carefully bend the air-conditioning pipe
out of the way.
16. If required, carefully bend A/C piping clear of
mount bracket assembly as shown, with a
minimum clearance of 20mm (3/4”).
CAUTION: Piping must not rub on
sharp edges, secure with cable tie
and protective sheath if required.
17. Fix the chassis mount bracket to the chassis
mount brace using M12 x 40mm bolts, M12
spring and flat washers, the 8mm spacers
and M12 x 1.75 nuts. Tighten bolts
Position brace so
spacer won’t protrude
from the chassis
