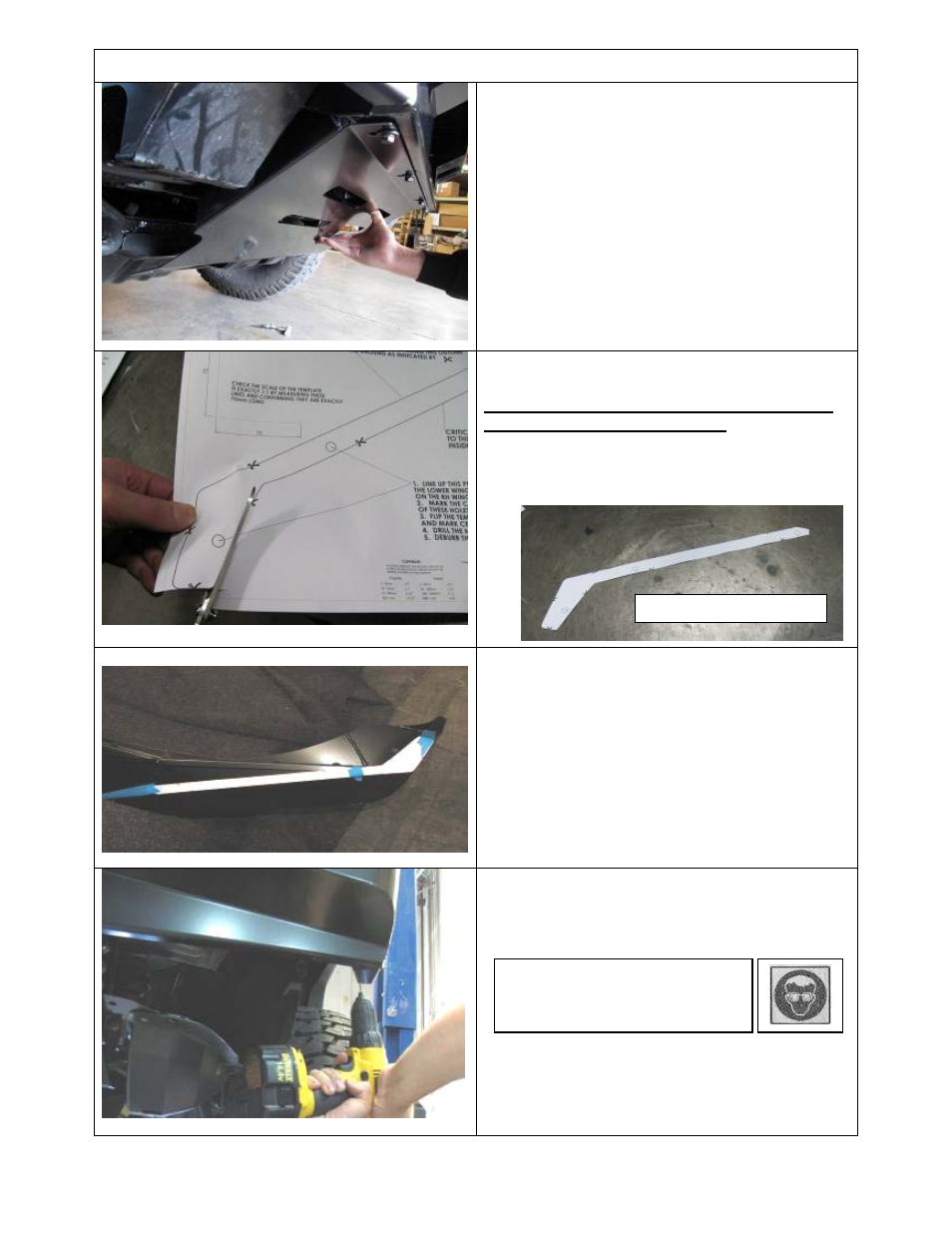

FITTING PROCEDURE
FROM SUPLEMENTARY KITS – 3520010 & 20
STONE TRAY
40. Fit the bull bar stone tray by sliding the tray
under the front of the vehicles original stone
tray
41. Fit the front of the stone tray to the bull bar
with four M6 x 20mm bolts, M6 large panel
washers and M6 spring washers.
ONLY FROM SUPLEMENTARY KIT - 3520020
WING UNDER PANELS
Check first, then if there are no holes in lower
flange of wing for fixing panels- follow the next
6 steps
42. Cut out the hole position paper template
43. Locate on the RH wing lower flange and
align to the inner flange edge then tape in
position
44. Centre punch the hole positions onto the
wing lower flange
45. Remove template, apply to LH wing and
centre punch holes
46. Drill the holes to Dia 9mm (11/32”)
47. Deburr then touch up the bared steel with
rust preventing paint
Warning: Drilling operations can
result in flying metal debris,
safety glasses should be worn.
Final shape of template
