FITTING PROCEDURE BAR ON VEHICLE

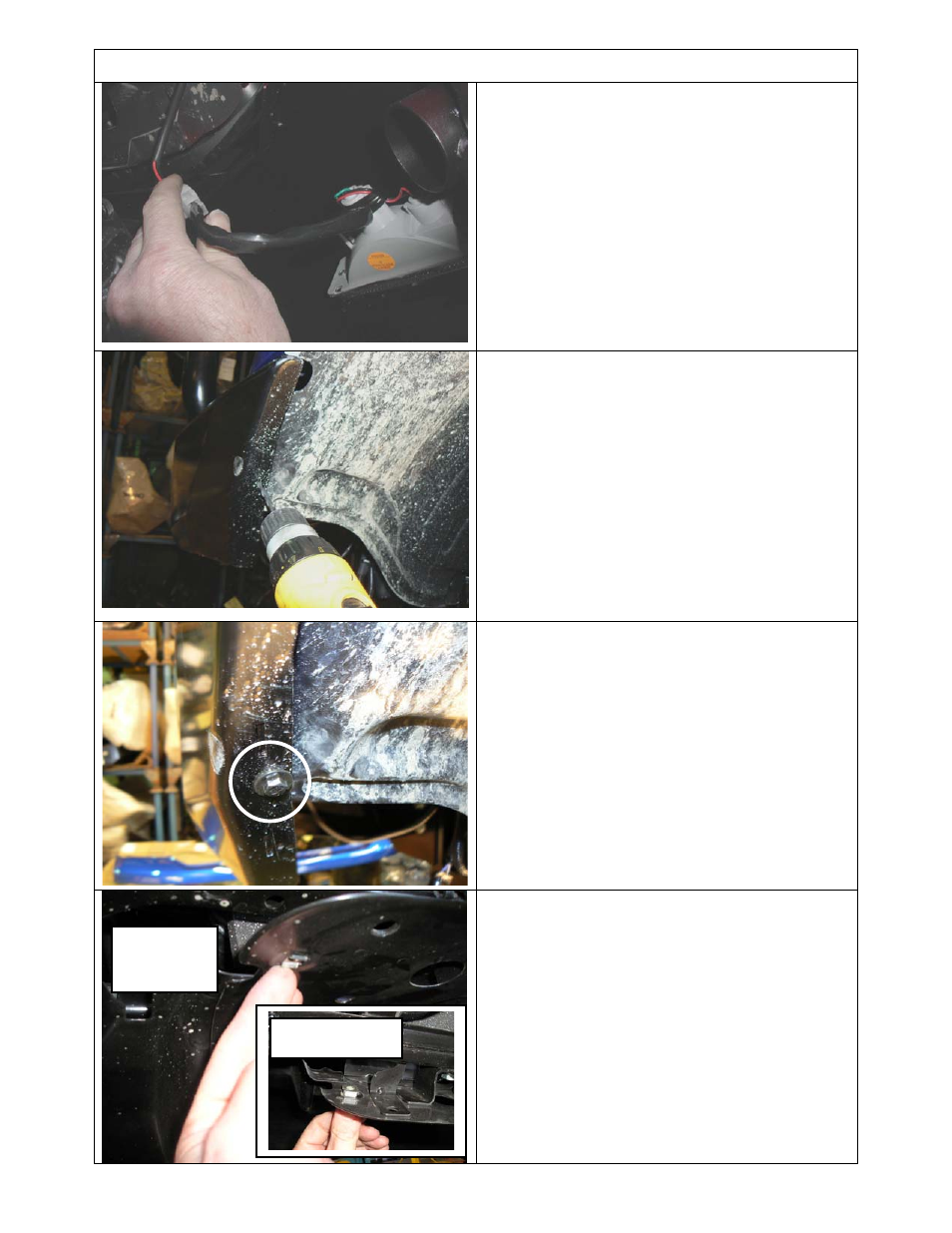

74. Wire up indicators and running lamps. Wire
loom extensions are supplied in fitting kit.
Note:
Wiring of indicator looms;
Black = ground
Green = indicator (amber)
Red = run lamp (clear)
75. Trim fender liner if required. Tuck behind
wing return.
76. Drill Dia 7.0 hole through fender liner flange
behind wing return using existing hole in wing
as guide.
77. Then secure fender liner using M6 x 20 black
bolts and 2 x black washers with flange nut.
78. Using square file, increase slot length in 2 x
existing holes in sump guard (those pitched
570mm apart) to a size of 12.3mm A/F.
79. Fit two M8 cage nuts to slots in sump guard
(NOTE: nut body above panel as shown).
View from
underneath
View from top
