FITTING PROCEDURE BAR ON VEHICLE

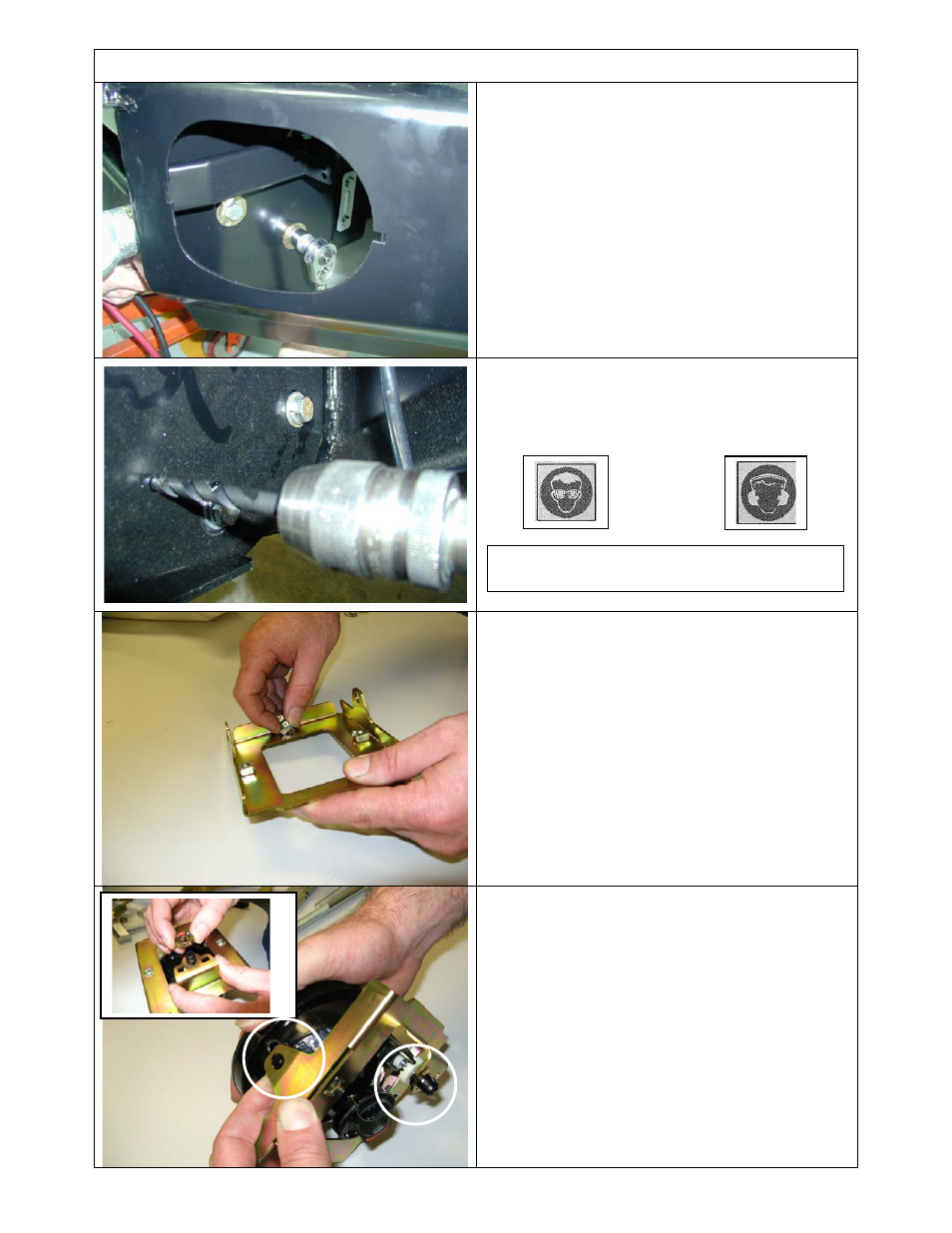

62. Tighten M12x 40mm mounting bolts.
63. Tighten up the M10 brace bolts in 7 places.
64. Using the M10 pilot hole in mount brackets,
drill pinning hole through uprights of bull bar.
Fit M10 SEMS bolt and flange nut, do up
tight.
If fitting optional accessory fog lamps kit
9381FCK follow fitting instructions supplied
with kit. If fitting OE fog lights follow steps 65 –
70.
65. Fit M6 cage nuts to adaptor bracket as
shown.
66. Fit light to adaptor bracket by locating mount
lugs from light body into holes in adaptor
bracket flanges.
67. Push adjuster knuckle nut through the hole in
bracket and fit washer OD 20mm x ID 11mm
x 4mm thick to secure it. Adjust light so it will
sit vertical when fitted to bar.
Warning: Drilling operations can result in
flying metal debris, safety glasses should be
