FITTING PROCEDURE BAR ON VEHICLE

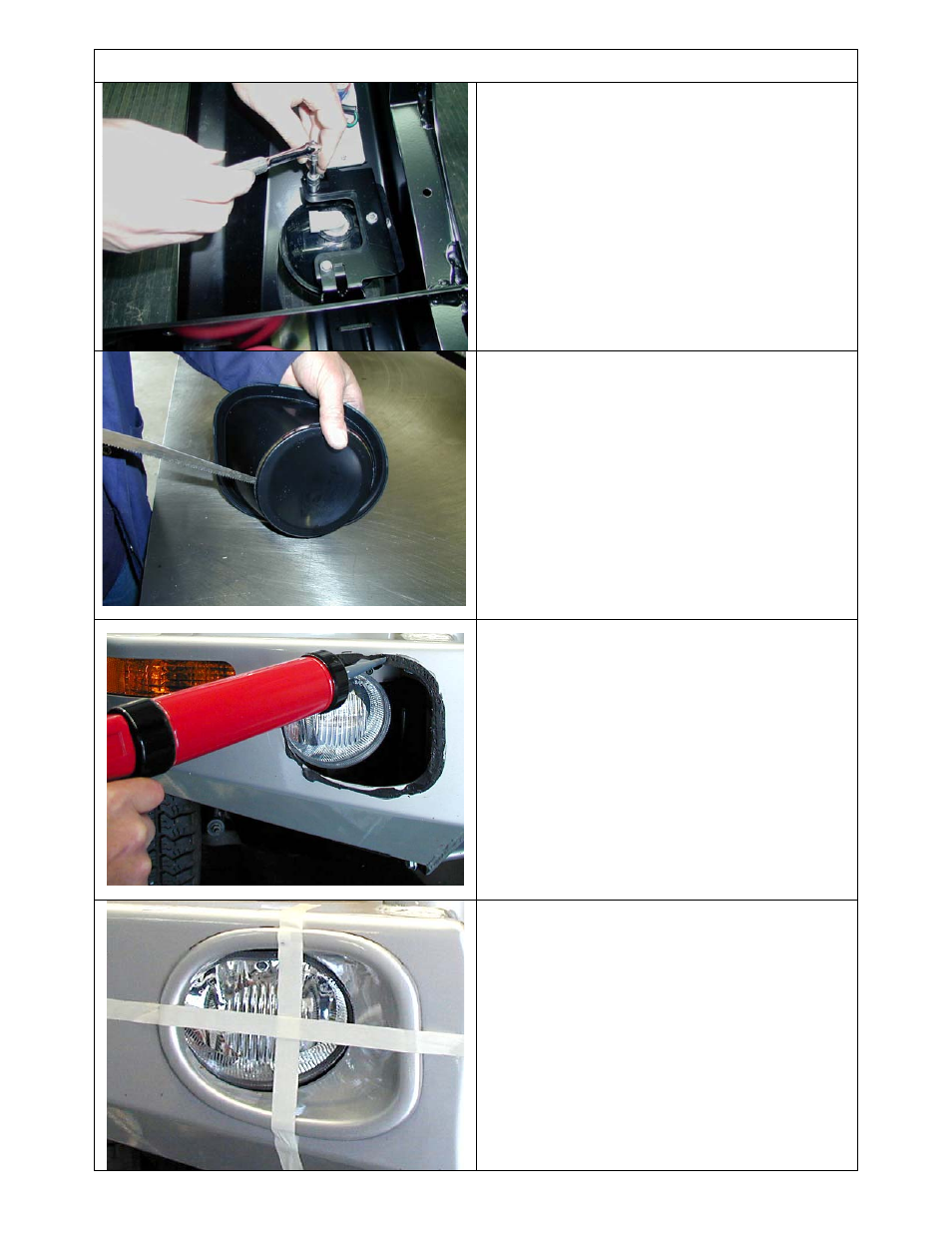

68. Fit adapter bracket and fog lamp assembly
into brackets in bull bar wings, as shown.
69. Bolt in place with M6 x 16 bolt and washer
sets into cage nuts.
Fitting plastic fog lamp aperture moldings.
70.
I f fog lamps are to be fitted, cut centre panel
out of light aperture moldings using a hack
saw blade.
71. If fog lamps are not fitted leave centre panel
in place.
72. Note that the aperture moldings are handed
(RH or LH), select correct hand for each wing
aperture. Apply Sikaflex to recess in aperture
molding flange or face of wing then fit molding
aperture in wing.
73. Use adhesive tape to secure plastic mold
while Sikaflex cures.
