Class1 Valve - 119138 - Manual (Page 22)

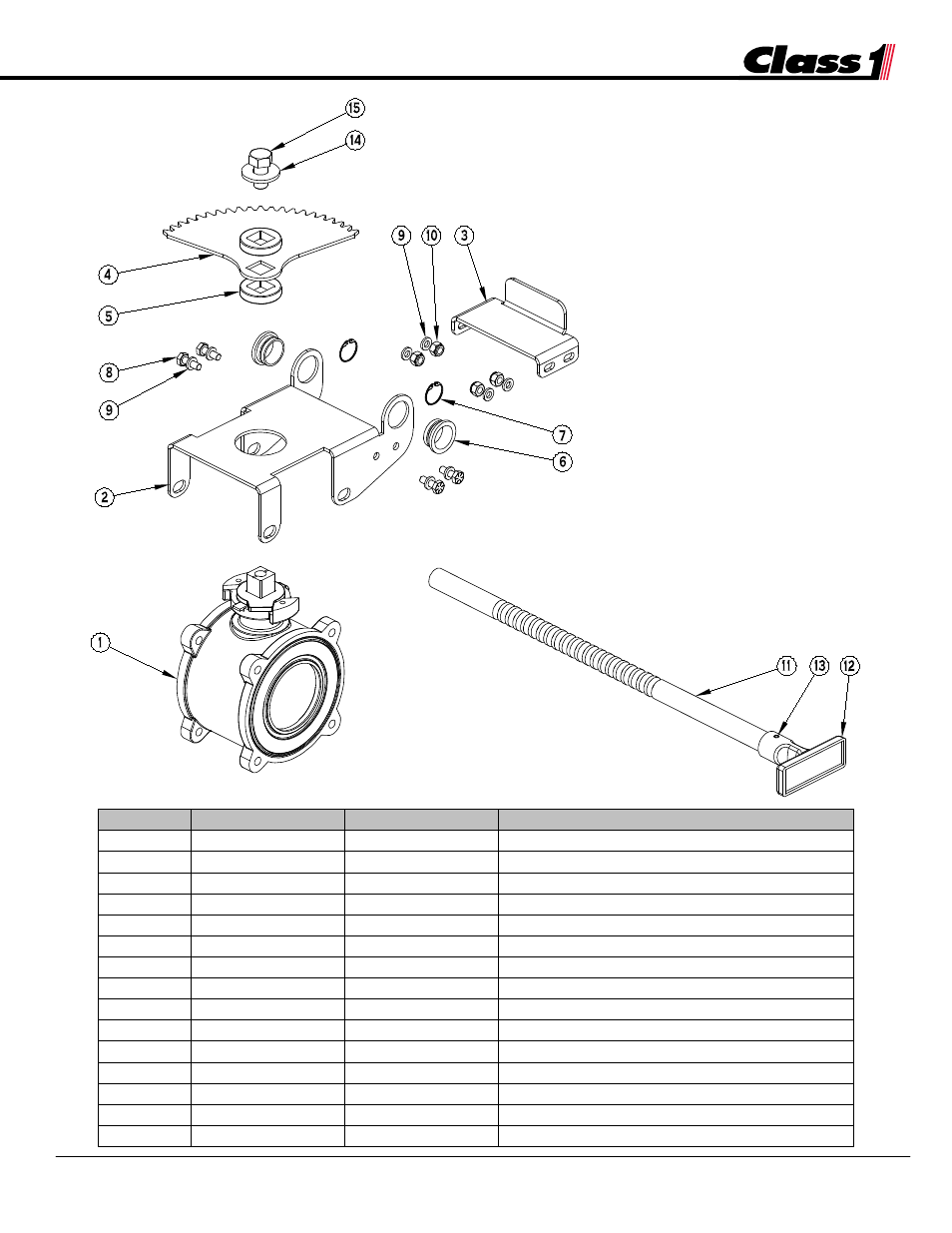

22 Class 1 Valve Manual
p/n: 119138
Item 2.5” Valve P/N 3.0” Valve P/N Description
1 C25-0000-00-0 C30-0000-00-0 Valve Center Body
2 119417 117376 Main Bracket
3 119418 117371 Lock Bracket
4 117374 117374 Gear
5 117373 117373 Gear Spacer
6 119881 119881 Brass Bushing
7 106623 106623 Snap Ring
8 018-1206-02-0 018-1206-02-0 Hex Head Bolt 1/4-20 x 0.75” G5 Zinc
9 097-0020-02-0 097-0020-02-0 Flat Washer 1/4”
10 110-1200-11-0 110-1200-11-0 Nut Nylock 1/4”
11 117372 117372 Rack Rod
12 100294 100294 Handle
13 100379 100379 Roll Pin
14 106949 106949 Washer Flat 1/2” (Included with valve)
15 113303 113303 Hex Head Bolt 1/2-13 x 1.00” SST (Included with valve)
