Parts list, Emi-automatic, Riming – Hale SPV User Manual

Page 14: Alve

background image

S

emi-Automatic

P

riming

V

alve

12

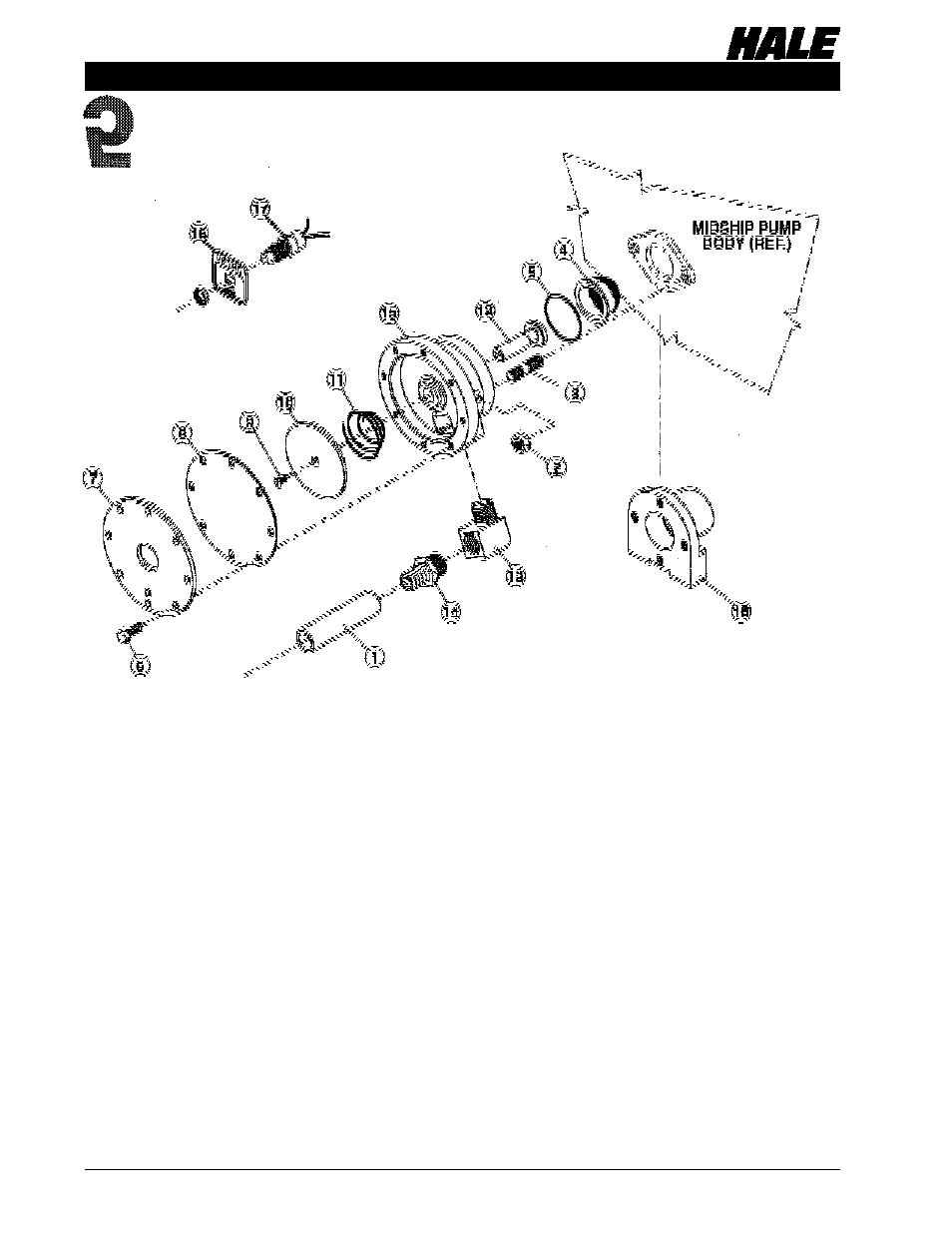

PARTS LIST

ITEM

PART NUMBER

DESCRIPTION

QTY

UM

1

340-0640-00-1

3/4 ID HOSE (AEROQUIP 2556-12 or EQUAL)

14

IN

2

110-1800-02-0

NUT, 7/16-14 ZINC PLATED

2

EA

3

018-8040-00-0

STUD, 7/16-14 X 1-3/4 IN. LG. ZINC PLATED

2

EA

4

010-0040-00-0

ZMQ-329H PRM VALVE STRAINER

1

EA

5

040-2260-00-0

40-4N200 RING-SEAL

1

EA

6

018-1406-07-0

SCREW, 5/16-18 X 3/4 IN. LG.

8

EA

7

044-0231-00-0

DIAPHRAGM COVER (PAINTED)

1

EA

8

046-0121-00-0

DIAPHRAGM, 5-3/8 IN. DIA.

1

EA

9

018-1004-32-0

SCREW, #10-24 X 1/2 IN. LG.

1

EA

10

005-0021-00-0

SPV DIAPHRAGM PLATE

1

EA

11

042-0081-00-0

VALVE RETURN SPRING, STAINLESS

1

EA

12

038-0151-00-0

SPV PRIMING VALVE VALVE

1

EA

13

082-4027-00-0

STREET ELBOW, 3/4 MALE NPT
X 3/4 FEMALE NPT

1

EA

14

082-4027-01-0

CONNECTION, 3/4 MALE NPT
X 3/4 HOSE BARB

1

EA

15

038-0141-00-0

SPV PRIMING VALVE BODY

1

EA

16

101-0050-01-0

SPV PRIME PLACARD

1

EA

17

200-0120-04-0

STARTER SWITCH, MOMENTARY PUSH

1

EA

18

007-3370-00-0

SPV UNIVERSAL MOUNTING ADAPTER

1

EA
