75.5185.04 20070727

Page 6 of 8

6

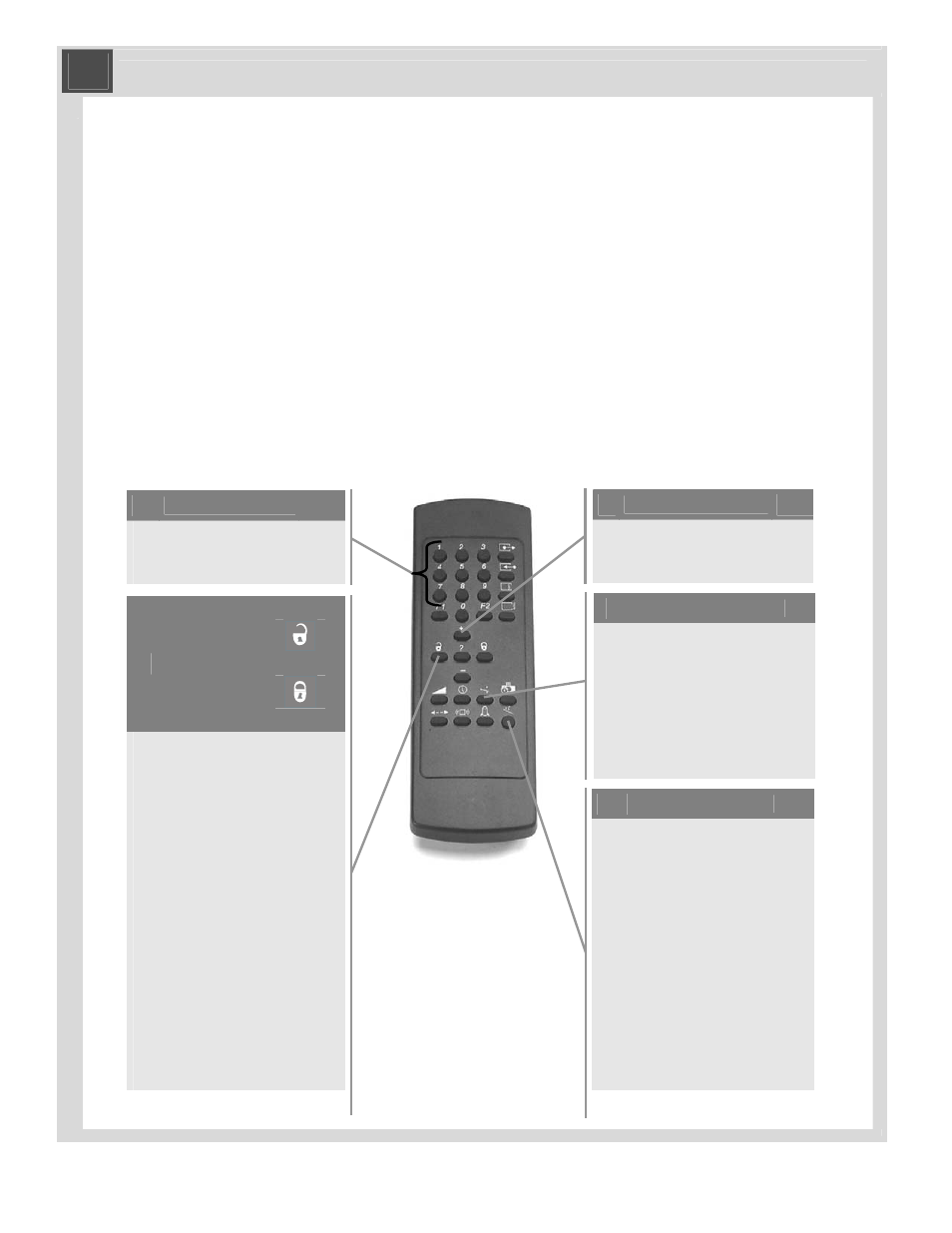

Programming Guide

The Eagle is equipped with a Motion Tracking Feature (MTF). The MTF is available when the Eagle is used in the uni-
directional mode. The Eagle is factory preset with the MTF ON. MTF is recommended for use in short vestibule areas to
help reduce unwanted door hold-open time. Refer to the Programming Guide to alter this setting. BEA recommends
keeping the MTF enabled for all applications. The detection capabilities perform as follows:


BI-DIRECTIONAL MODE:
Detection of all motion towards or away from the sensor.

UNI-DIRECTIONAL MODE:
The detector will work in a uni-directional mode at all times regardless of traffic patterns - detecting only motion moving

toward the sensor.

OR


UNI-DIRECTIONAL MODE WITH MTF: The principle is as follows:
The detector does NOT activate its relay as long as it detects movement exclusively moving away from the detector. It

acts like the classic unidirectional detector.

As soon as the Eagle detects movement toward the sensor, it automatically switches to bi-directional mode.

The Eagle maintains the bi-directional function for approximately 2 seconds following the last detection of motion toward

the door.

At the end of the 2-second time frame, if the Eagle does not detect any further motion, it switches back to the

unidirectional mode.


Unlock

Inquire

Lock

?

To UNLOCK the sensor:
Press the UNLOCK key once. Red LED

flashes quickly


To LOCK the sensor:
Press the LOCK key twice, OR press

once then followed by a 4-digit lock
code. If less than 4 digits, press
lock again after the last digit. LED
goes out when complete.


To INQUIRE the sensor:
Unlock the sensor, press the desired

function key, followed by the
INQUIRY key – the number of
green flashes corresponds to the
value.


Default: 0000

Relay Configuration

The relay configuration has 4 possible
output values:

1= Normally Open Relay
2= Normally Closed Relay
3=Continuous Detection
4=Continuous Non-Detection


Default: 1

Default Values

After pressing the DEFAULT VALUE key,
the red LED flashes quickly. After
pressing a number button, the red LED
flashes slowly.

1 = Normal Mounting Height (only for
serial numbers lower than 84000)

2 = Boost Mode, increases sensitivity for
high mount applications.

9 = Restore default values except lock
code (for serial number 84000 and
greater)

Number Keys

Number keys (0 through 9) are used for
assigning a value for a given function

Adjustment Keys

Plus (+) and minus (-) keys are used for
incremental adjustments to the sensor
