IS40 / IS40P
USER’S GUIDE
COMBINED ACTIVE INFRARED / MICROWAVE AND ACTIVE INFRARED ONLY SENSOR
- The IS40P uses Active Infrared (IR)
technology for presence detection only
and the activation relay can be triggered
by entering or exiting the IR field.
75.5371.01 EN 20080505 (75.5370) Page 1 of 6

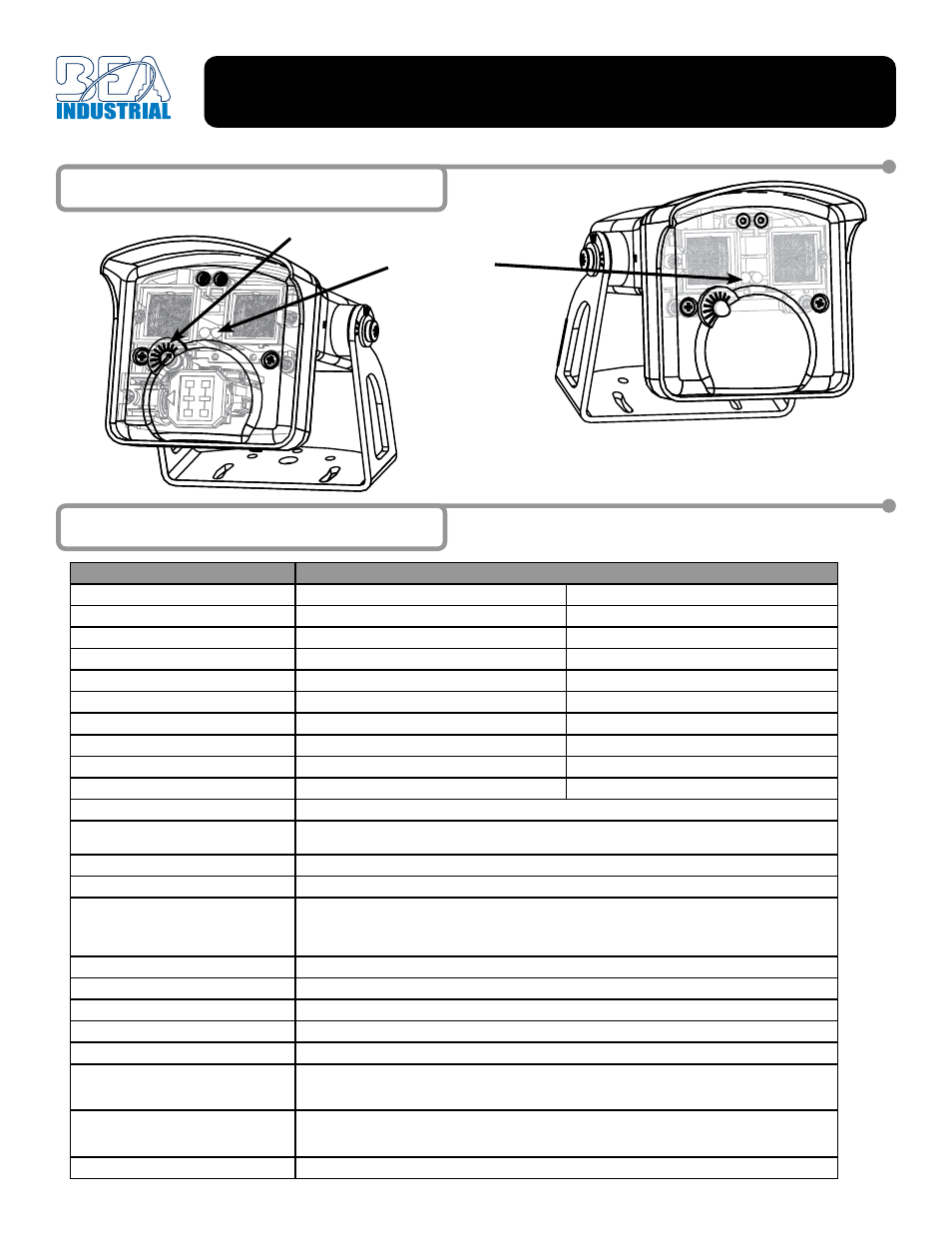

IS40P
IS40
LED INDICATORS
MICROWAVE FIELD ADJUSTMENT
DESCRIPTION SPECIFICATION
TECHNOLOGY MICROWAVE (IS40 Only) INFRARED
RADIATED FREQUENCY
24.175 GHz 875nm
RADIATED POWER DENSITY < 5 mW/cm² < 250mW/m²
DETECTION MODE Motion Motion & Presence
MAXIMUM DETECTION FIELD 13’ x 16’ (4m x 5m) (10’ x 10’) 3m x 3m
OUTPUT HOLD TIME
0.5 sec. to 9 sec. 0.5 sec.
REACTION TIME
100ms 250ms
MINIMUM TARGET SPEED 2 in/sec (5cm/sec) in sensor axis 0 in/sec (0cm/sec)
LED SIGNAL Green Red
ANTENNA TILT ANGLE -8° to 22° (relative to sensor front face) N/A
SENSOR TILT ANGLE
15° to 45°
SUPPLY VOLTAGE
12 to 24VAC ± 10%
12 to 24VDC +30% / -5%
MAIN FREQUENCY 50 to 60Hz
POWER CONSUMPTION
< 2W
RELAY OUTPUT
- Max. Voltage
- Max. Current
- Max Switching Power
2 Relays with switch-over contact (voltage free)
60 VDC / 125 VAC
1A (resistive)
30W (DC) / 60VA (AC)
INSTALLATION HEIGHT 8’ to 16’ (2.5m to 5m)
TEMPERATURE RANGE
-22°F ( -30°C) to + 140°F (60°C)
PROTECTION DEGREE NEMA-4
NORM CONFORMITY
Electromagnetic compatibility (EMC) according to 2004/108/EEC, R&TTE: 1999/5/EC
DIMENSIONS (D X W X H)
5 in. X 4 in. X 3.75 in. (127mm x 102mm x 96mm)
MATERIAL
- Housing
- Face
ABS
Polycarbonate
COLOR
- Housing
- Face
Black
Transparent Purple
CABLE LENGTH 32 feet (10m)
1 Description
2 Specifications
“The Peak Of Detection”
- The IS40 uses
Microwave
technology for
activation and
Active Infrared
technology
for presence
detection.
