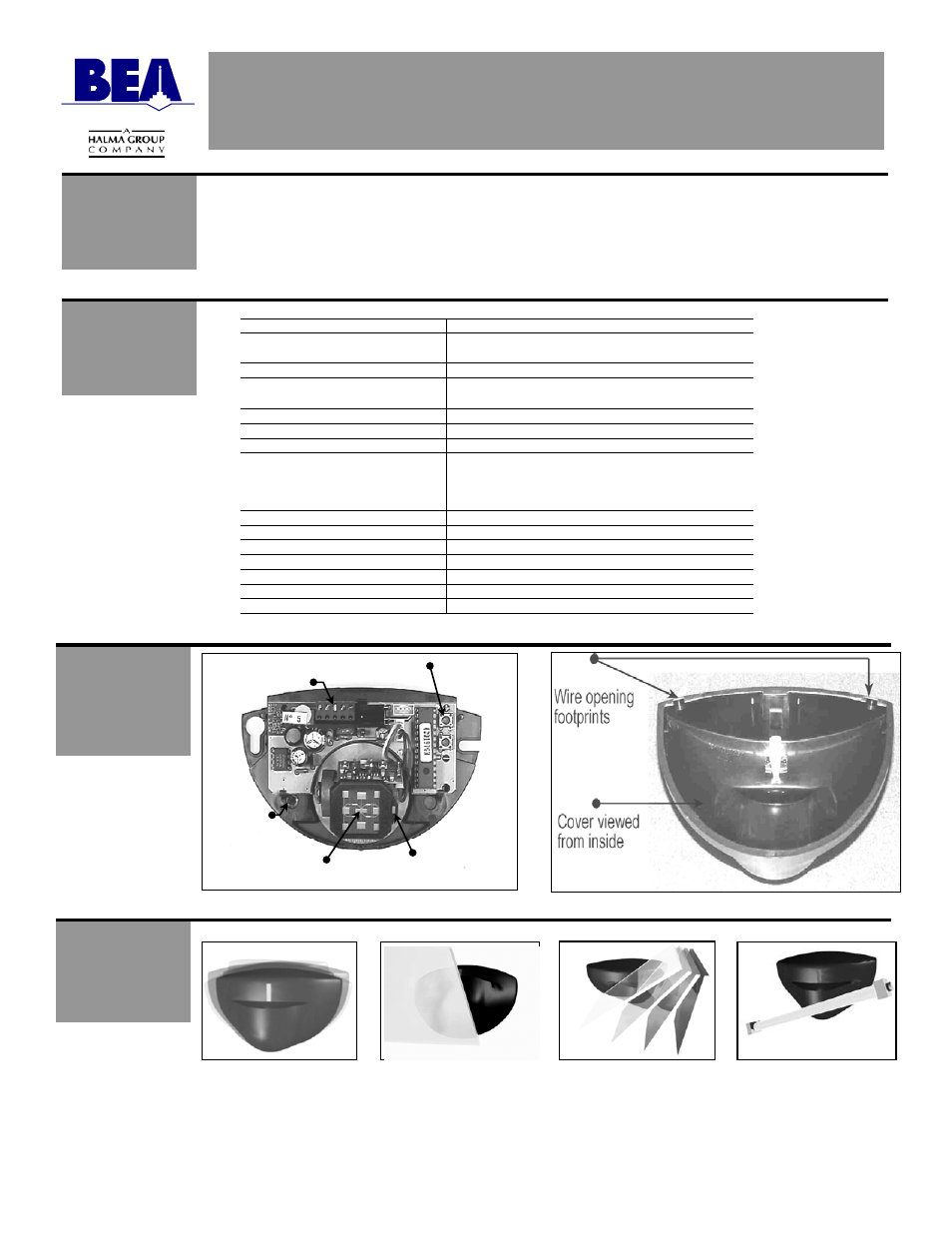

BEA Eagle HM - Manual

75.1038 V2 Aug 2001 [Rev. June 10, 2005] Page 1 of 8
We open up New Horizons
The High Mounting Eagle Motion Detector (PN: 10EAGLE1HM) nd technology combined with digital processing to assure a
sharp, stable activation pattern with outstanding adjustability. Some of the adjustments include unidirectional sensing
capabilities, 3-dimensional angle adjustment, and heightened immunity to highly sensitive motion settings. These
adjustments can be made with BEA’s universal remote control. Other accessories available for the Eagle include the false
ceiling adapter (ECA), and the rain protection cover (ERA).
PRELIMINARY
The sensor must be
firmly fastened in order
not to vibrate. The sensor must not be
placed directly behind a
panel or any kind of
material. The sensor must not
have any object likely to
move or vibrate in its
sensing field. The sensor must not
have any fluorescent
lighting in its sensing
field.
Frequency: 24.125 GHz
Supply voltage: 12 to 24 V AC : ± 10% :
12 to 24 V DC : -10% / +30% :
Mounting height: 16.5 feet
Tilt angle: 0 ° to 90° vertical
-30 ° to +30° lateral
Detection area: 13.1 ft x 8.2 ft
Minimum detection speed: 2in/sec. (measured in axis)
Power consumption: < 2 W
Standard output relay:
Max contact voltage
Max contact current
Max switching power
60 VDC / 125 VAC
1 A (resistive)
30W (DC) / 60VA (AC)
Hold time: 0.5 sec. to 9 sec. (adjustable)
Temperature range: -4°F to 131°F
Dimensions: 4.75in (W) x 3.15in (H) x 2.0in (D)
Weight: 0.5lbs
Material: ABS
Housing color:
Black. Can be painted with non-metallic paint
Cable length: 30ft
DESCRIPTION OF
THE SENSOR
DESCRIPTION
INSTALLATION
TIPS
USERS GUIDE
EAGLE HM
MOTION SENSOR
TECHNICAL
SPECIFICATIONS
Terminal Block
Wire
Passage
Hole
Lateral Adj.
For Antenna
Manual Set-up
Buttons
Planar
Antenna
