Page 20
SERVICE (cont.)
DISPENSE VALVE (cont.)

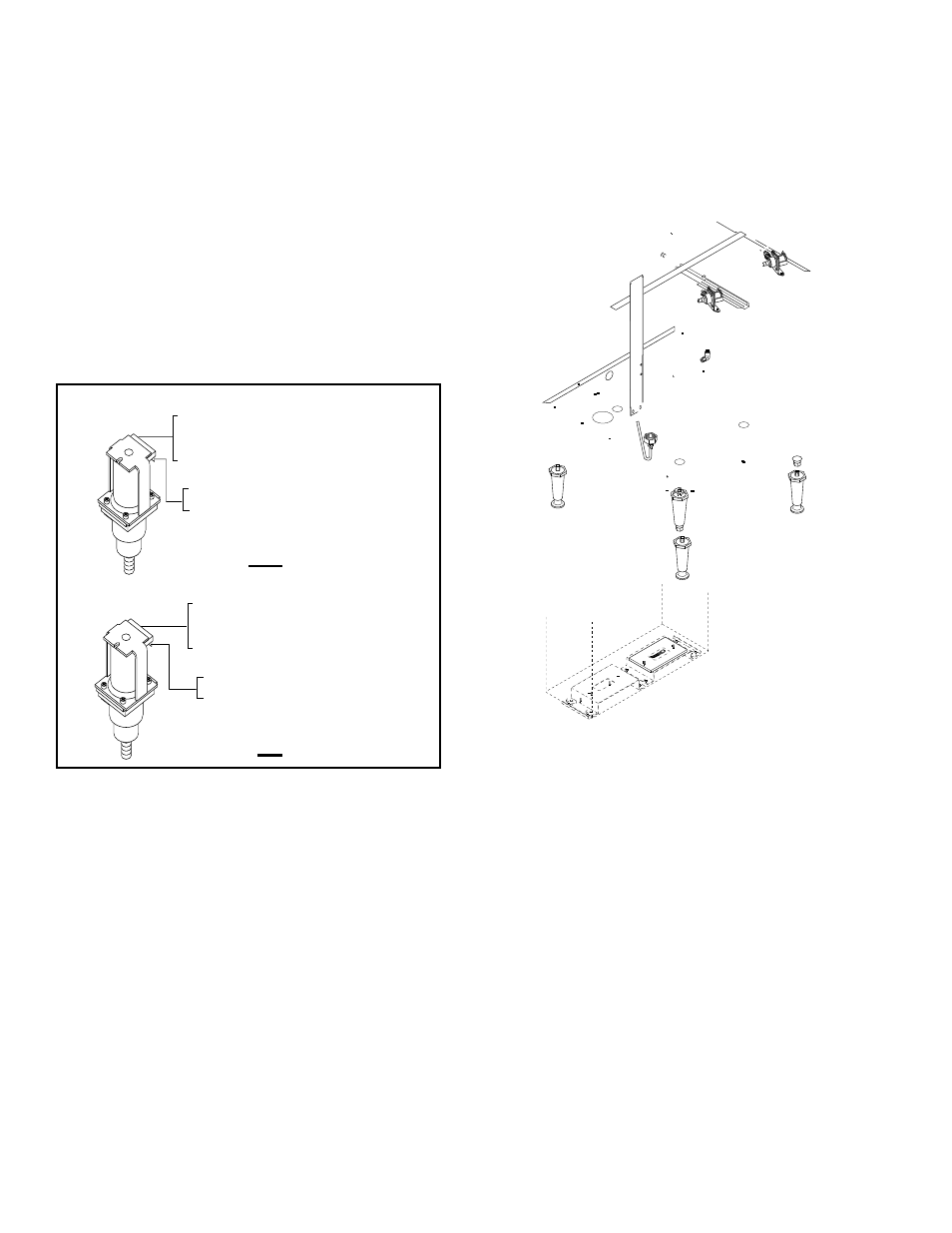

ELECTRONIC CONTROL ASSEMBLY
10. Recovery Booster
Relay
11. Contactor Assembly
12. Bypass Valve
13. Ready Light
14. Solenoid Valve
15. LED
16. Temperature adjust-
ment
17. Triac Assy
18. Server Sensor
1. Electronic Control
2. Terminal Block
3. Timers
4. Liquid Level Switch
& Overflow Cup
5. Tank Heater
6. Limit Thermostat
7. Liquid Level Probe
8. Temperature Sensor
9. Dispense Valve
P782
WHI/BRN to Left Timer TL4
WHI/GRN to Left By-Pass Valve
WHI/RED to Left Timer TL1
WHI/RED to Left Brew Selector Switch
WHI/RED to Left ON/OFF Switch
LEFT
RIGHT
WHI/VIO to Right Timer TL1
WHI/VIO to Right ON/OFF Switch
WHI/RED to Right Brew Selector Switch
WHI/GRN to Right Timer TL4
WHI/GRN to Right By-Pass Valve
12565.0004 12565.0004
