SERVICE (cont.)
BREW SELECTOR SWITCH (cont.)
P991
TAN
GRY
PNK
To Left or Right Timer
WHI/VIO to Left or Right
By-Pass Valve
WHI/RED to Left or Right
Dispense Valve
GRY from Left or Right Selector Switch
to GRY Lead on Interface Socket
PNK from Left Selector Switch
to Grinder Switch (Lower Left)
PNK from Right Selector Switch
to Grinder Switch (Lower Right)
TAN from Left or Right Selector Switch
to TAN Lead on Interface Socket
YEL toServer Sensor
YEL (Pin #4)
WHI/ORA To Left or Right
Start Switch (Electro/mechanical)
WHI/ORA to Interlock Assy
(Electronic)
ORA to Server Sensor ORA
(Pin #3)
WHI/GRN to Left or Right Dispense Valve
and Left or Right Bypass Valve
6. Install the new switch. The positioning tab must be
in the hole in the hood for proper switch and knob
alignment.
7. Install the knob so that the arrow points to the 1-
3/4 gallon position when the switch is turned to the
full right position.
8. Reattach the connector to the brew timer circuit
board.

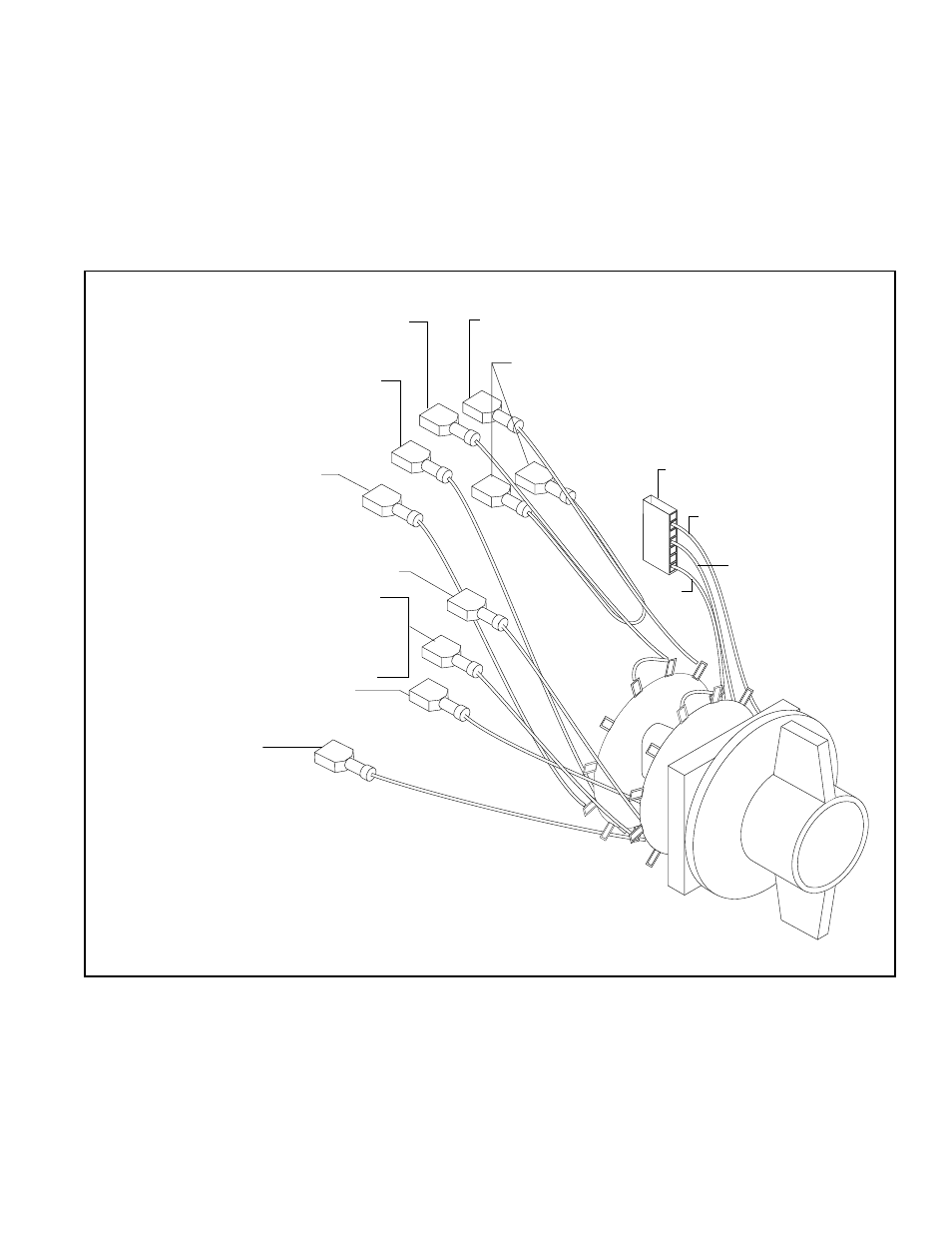

9. Refer to the illustration below when reconnecting
the wires.
