SERVICE (cont.)

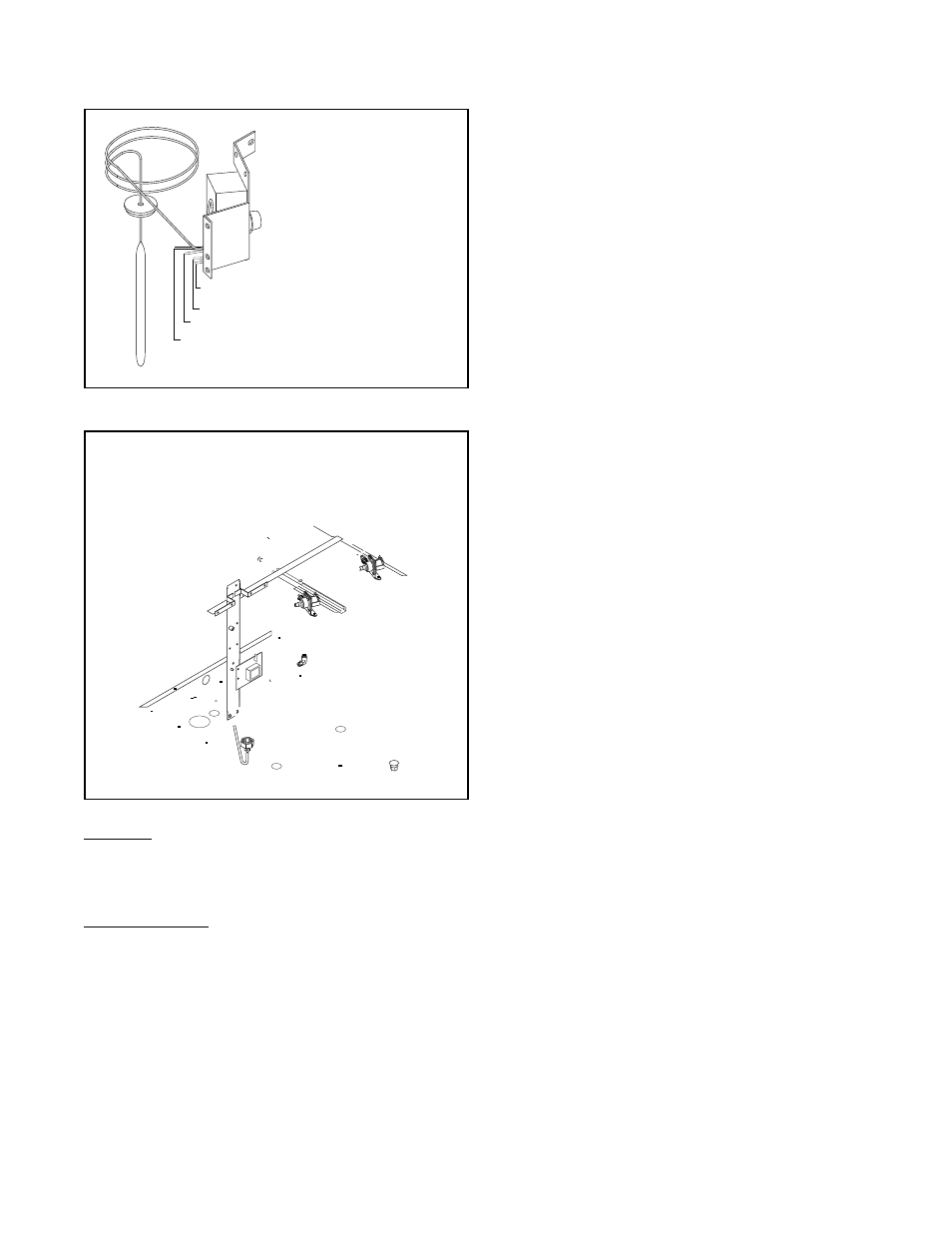

CONTROL THERMOSTAT (cont.)
BLU to Left & Right Ready Lights
BLU to RED Lead From Liquid Level Switch
BLK to BLK Lead of Contactor Coil
BLK toLeft & Right Ready Lights
P780
DISPENSE VALVE
P975
Location:
Dispense valves are located inside the hood in
the center of each sprayhead panel.
Test Procedures:
1. Disconnect the brewer from the power source.
NOTE: ECA MODELS ONLY - Brewer must be at
operating temperature to perform step #2 or brew-
lock must be bypassed. To bypass brew-lock
disconnect white/orange and brown/black for right
timer or orange and red/black for left timer from
brew-lock of ECA and connect harness leads to-
gether.
2. Disconnect the wires from the right dispense valve
and check the voltage across the white/violet wire
