causes a degradation of 3db in the sensitivity of the receiver. The graph below displays the
adjacent channel rejection of the modem receiver as a function of the frequency separation
(Delta F in MHz) between the frequency of the interfering signal and the desired signal.

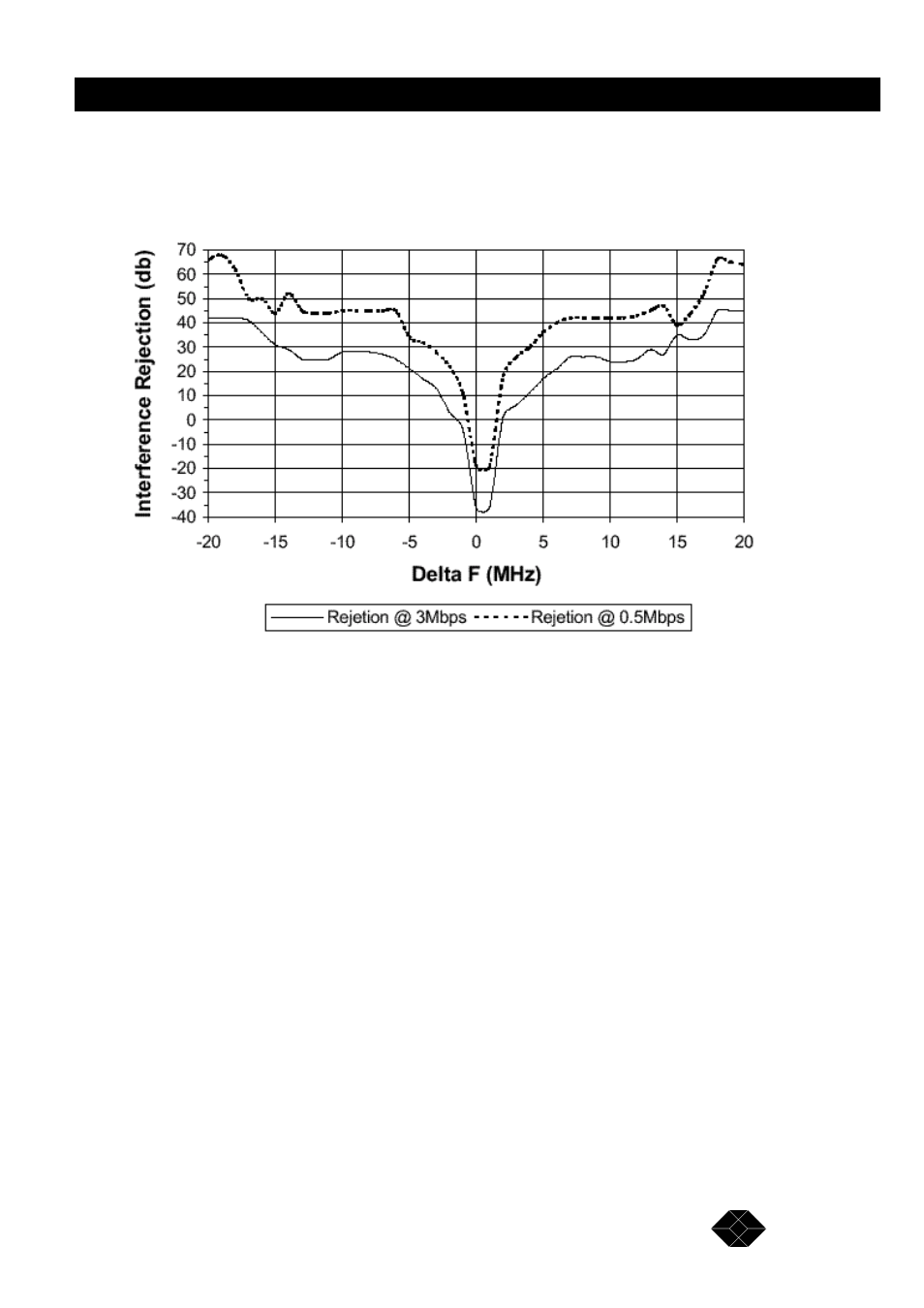

Figure 5-2. Adjacent Channel Rejection
Separate between TX and RX frequencies
Minimum 12MHz for sensitivity degradation of 1dB.
