Chapter 2 hardware functionality – B&B Electronics Celeron M Universal Network Controller with PC/104 Extension UNO-2170 User Manual
Page 14
Chapter 2 Hardware Functionality
2.1 Introduction
The following two figures show the connectors on UNO-2170. The
following sections give you detailed information about function of each
peripheral.

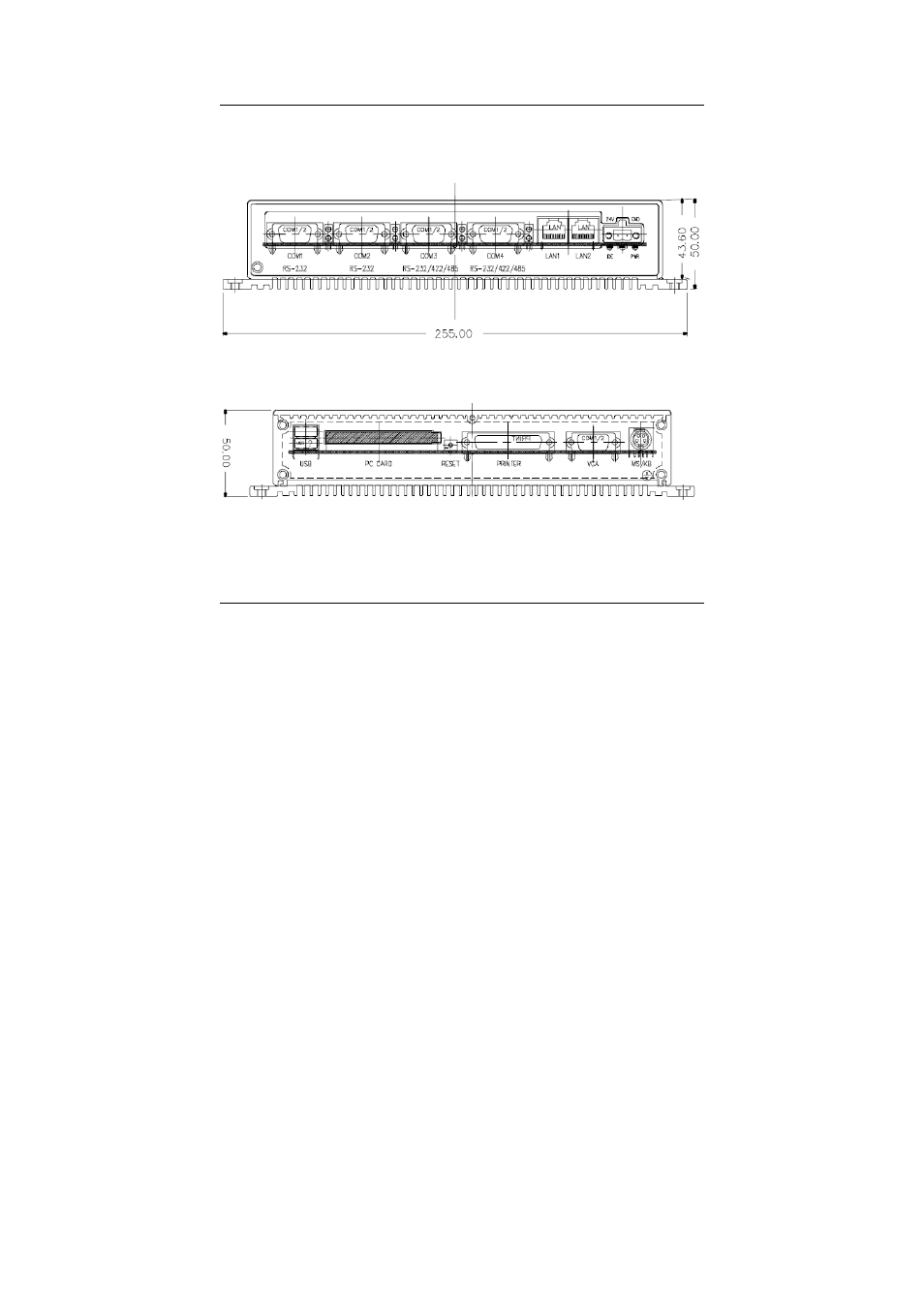

Figure 2.1: Front panel of UNO-2170
Figure 2.2: Rear panel of UNO-2170
2.2 RS-232 Interface (COM1~COM2)
The UNO-2170 offers two standard RS-232 serial communication inter-
face ports: COM1 and COM2. Please refer to A.3 for their pin assignments.
IRQ and Address Setting
The IRQ and I/O address range of COM1 and COM2 are listed below:
COM1: 3F8H, IRQ4
COM2: 2F8H, IRQ3
UNO-2170 User Manual 8
