SEE NOTES: 1,2,4,7,8,9

A02058

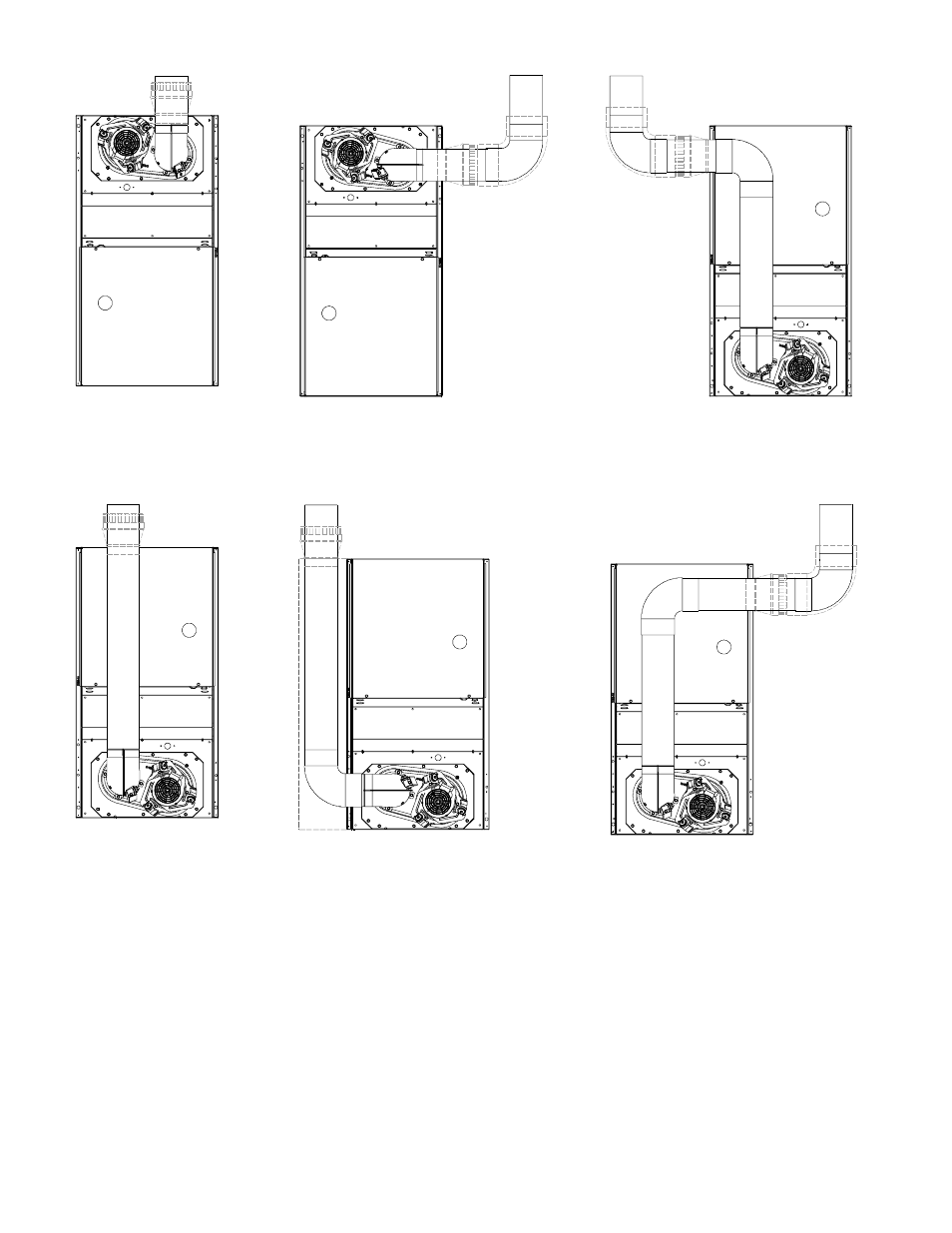

Fig. 26—Upflow Application-

Vent Elbow Up

SEE NOTES: 1,2,3,4,7,8,9

A02059

Fig. 27—Upflow Application-

Vent Elbow Right

SEE NOTES:1,2,3,4,5,7,8,9

A02060

Fig. 28—Downflow

Application-Vent Elbow Up

then Left

SEE NOTES: 1,2,4,5,7,8,9

A02061

Fig. 29—Downflow

Application-Vent Elbow Up

SEE NOTES: 1,2,4,5,6,7,8,9

A02062

Fig. 30—Downflow

Application-Vent Elbow Left

then Up

SEE NOTES: 1,2,3,4,7,8,9

A02063

Fig. 31—Downflow

Application-Vent

Elbow

Up

then Right

See Venting Notes on page 26.
