Step 7: Mount Integral Blower or
Outlet Duct Transition for Remote or
Inline Blower
Integral Blower (see Figures 9 and 11 for
further detail):
Y A. Attach blower in front of round
exhaust outlet with 4-6 (depending on
configuration) #8 sheetmetal screws.
Y B. Feed cord from blower through strain
relief.
Y C. Secure strain relief with screws.
Y D. Attach strain relief to downdraft near
junction box.
Y E. Connect cord to downdraft at 6 pin
connector.
Y F. Connect blower to ductwork.
<*^"P) 6^"
G*"P)F^^
')D
^W*"

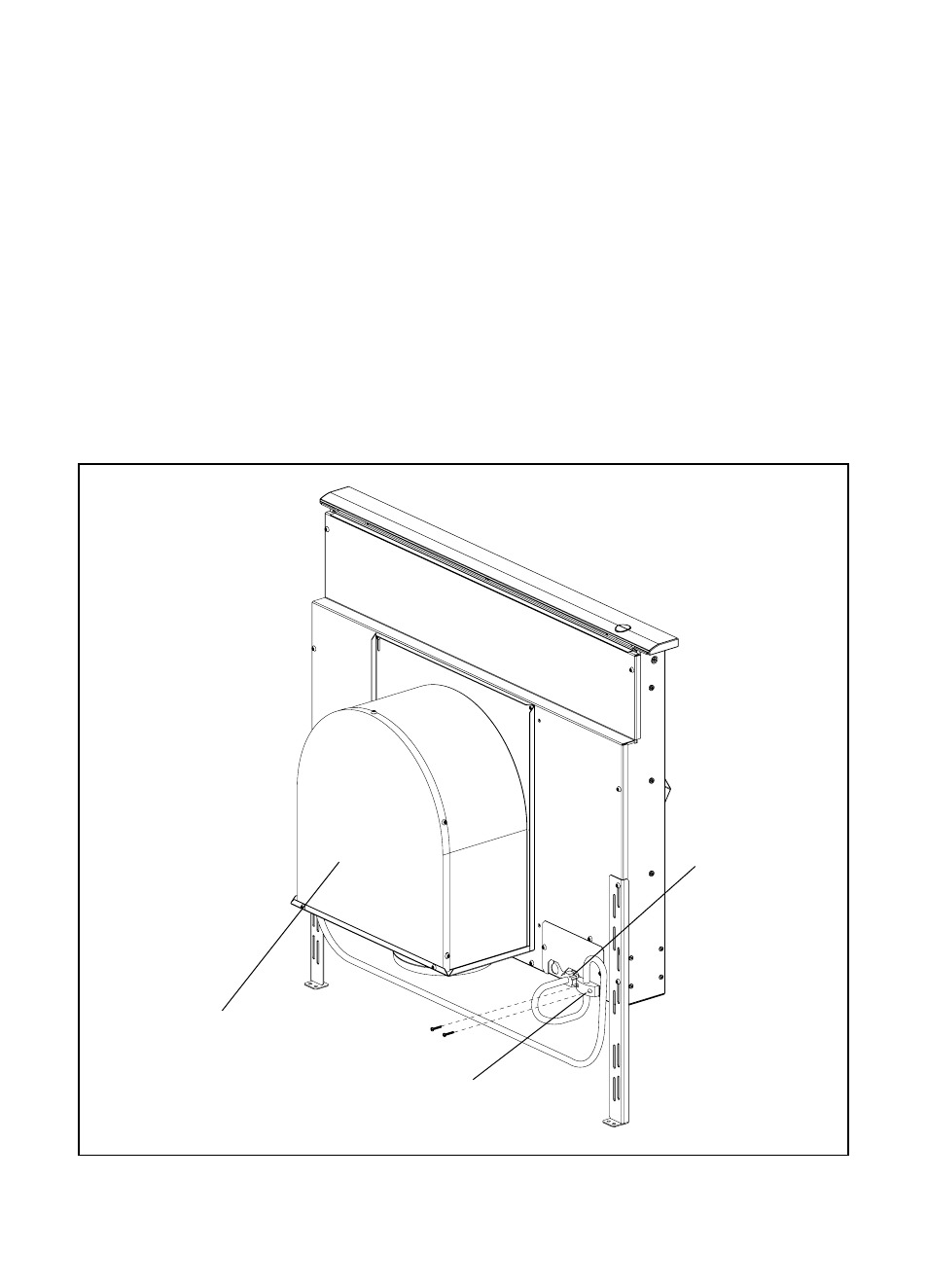

Fig. 9 – Internal Blower
13
Step 7: Mount Integral Blower or
Outlet Duct Transition for Remote
Blower
Integral Blower VTN600CV2C (see Figures
10 and 12 for further detail):
Y G. Place the cooktop in countertop ope-
ning with the rear edge of cooktop over-
lapping the front edge of the vent. Make
sure rear edge of cooktop does not bind
against front of snorkel. Follow the
manufacturer’s installation Instructions
for installing gasket strips, protective
heat tape (if required), securing the cook-
top to the countertop and making the
cooktop electrical and/or gas connec-
tions.
Note: Check boxes as tasks are completed.
Internal Blower
Strain Relief
6 Pin
Connector
