10
Notes

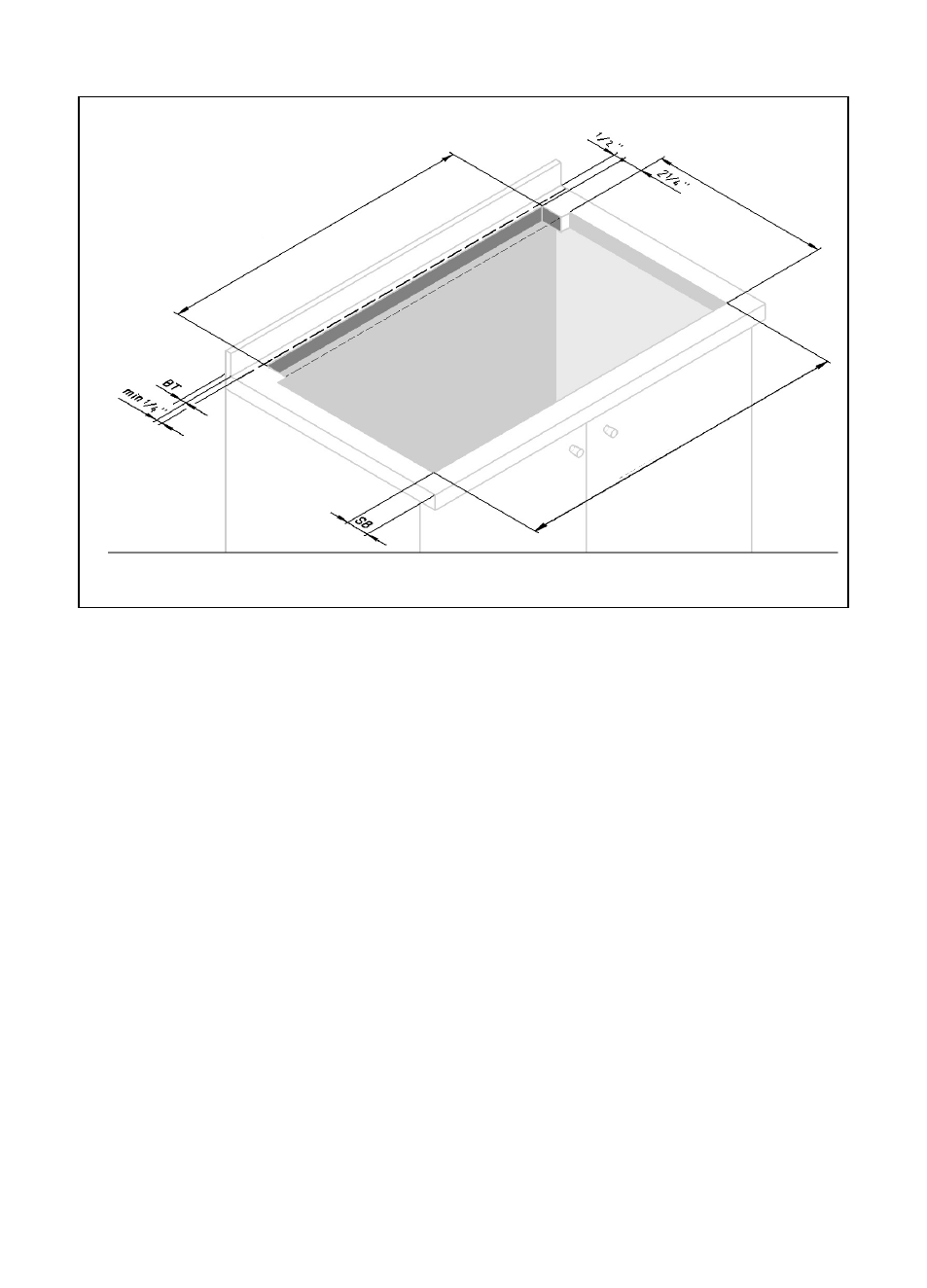

Dimension ”SB” is the minimum distance from the leading edge of the counter to the leading
edge of the cutout.
Dimension ”BT” is the thickness of backsplash that provides 1/4” clearance between vent
and backsplash. Any backsplash with a curved radius where it meets the counter will require
additional clearance. Thicker backsplashes may be used by increasing the counter and cabi-
net depths.
Set the cooktop into the countertop opening so that the back edge of the cooktop overlaps
the leading edge of the downdraft.
Fig. 7
INSTALLATION WITH COOKTOPS
Wide 31”: 28
3 /
8
”
Wide 37”: 34
3 /
8
”
Cutout and Overall Dimensions
Cutout and Overall Dimensions
