48
C06142

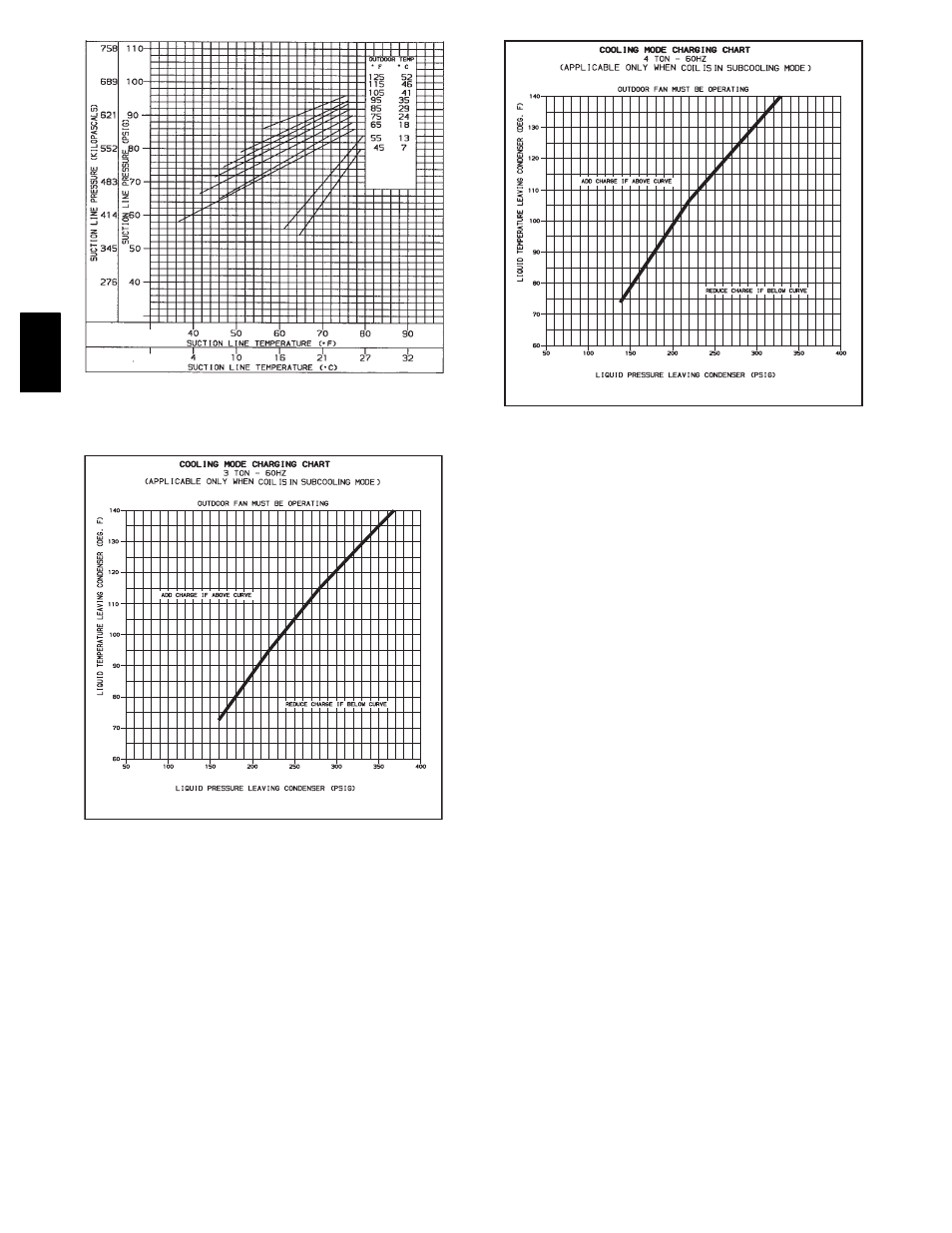

Fig. 54 --- Cooling Charging Chart,
Standard 581B 072
C06143
Fig. 55 --- Cooling Charging Chart, 581B 036 with
Optional Perfect Humidity Adaptive Dehumidification
System
C06144
Fig. 56 --- Cooling Charging Chart, 581B 048 with
Optional Perfect Humidity Adaptive Dehumidification
System
NOTE: When using the charging charts, it is important that only
the subcooling/reheat dehumidification coil liquid line solenoid
valve be energized. The subcooling/reheat dehumidification coil
liquid line solenoid valve MUST be energized to use the charging
charts and the outdoor motor speed controller jumpered to run the
fan at full speed.
The charts reference a liquid pressure (psig) and temperature at a
point between the condenser coil and the subcooling/reheat
dehumidification coil. A tap is provided on the unit to measure
liquid pressure entering the subcooling/reheat dehumidification
coil.
IMPORTANT: The subcooling mode charging charts (Fig.
55--58) are to be used ONLY with units having the Perfect
Humidity adaptive dehumidification system. DO NOT use
standard charge (Fig. 51--54 and 59--62) for units with Perfect
Humidity system, and DO NOT use Fig. 55--58 for standard
units.
