21

FOR OCCUPANCY CONTROL

REPLACE JUMPER WITH

FIELD-SUPPLIED TIME CLOCK

LEGEND

DCV— Demand Controlled Ventilation

IAQ — Indoor Air Quality

LA — Low Ambient Lockout Device

OAT — Outdoor-Air Temperature

POT — Potentiometer

RAT — Return-Air Temperature

Potentiometer Defaults Settings:

Power Exhaust Middle

Minimum Pos.

Fully Closed

DCV Max.

Middle

DCV Set

Middle

Enthalpy

C Setting

NOTES:

1. 620 ohm, 1 watt 5% resistor should be removed only when using differential

enthalpy or dry bulb.

2. If a separate field-supplied 24 v transformer is used for the IAQ sensor power

supply, it cannot have the secondary of the transformer grounded.

3. For field-installed remote minimum position POT, remove black wire jumper

between P and P1 and set control minimum position POT to the minimum

position.

8

7

C06028

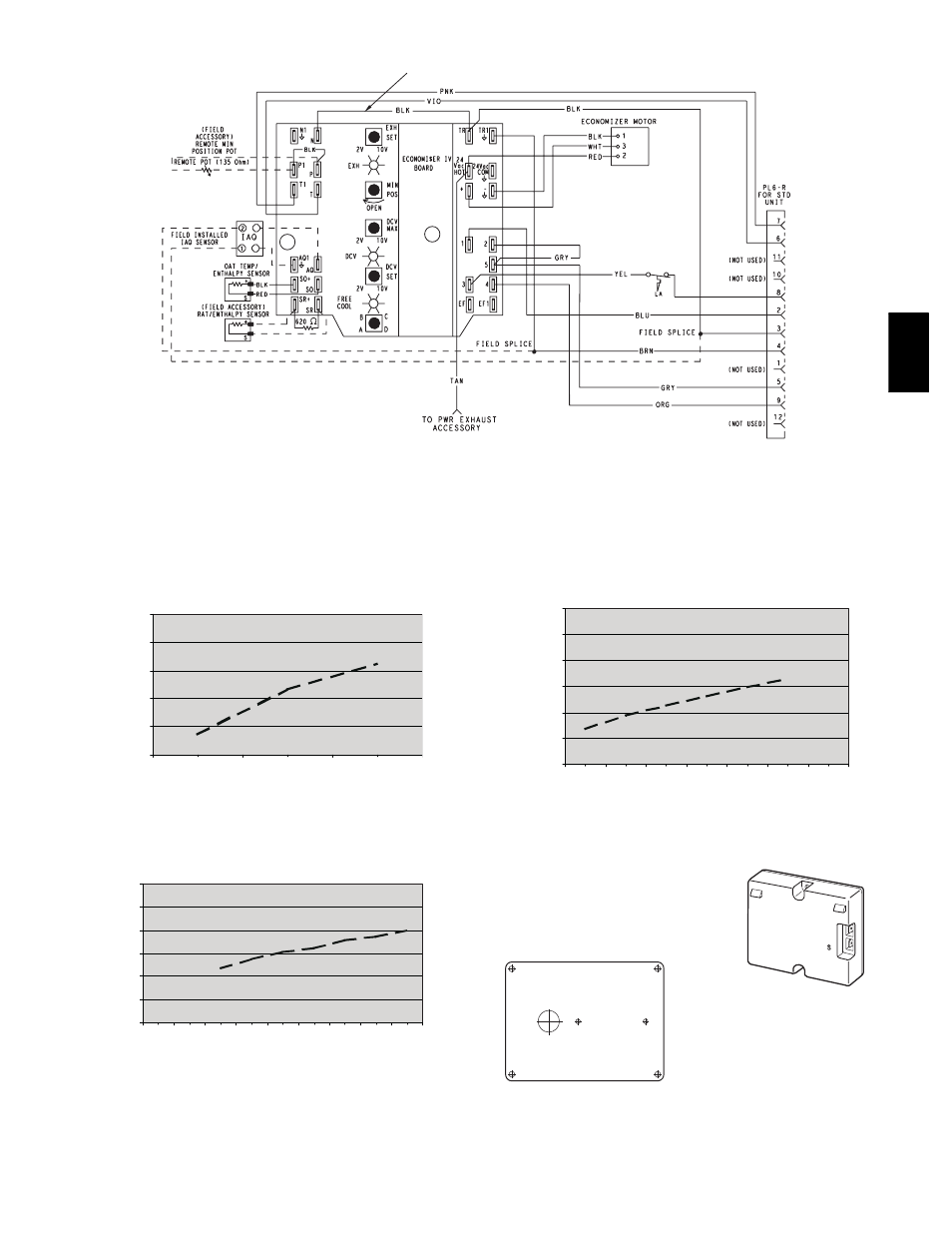

Fig. 29

--- EconoMi$er IV Wiring

0

500

1000

1500

2000

2500

0.05

0.15

0.25

STATIC PRESSURE (in. wg)

FLOW

IN

CUBIC

FEET

PER

MINUTE

(cfm)

C06030

Fig. 30

--- Barometric Flow Capacity

0

5

10

15

20

25

30

0.13 0.20 0.22 0.25 0.30 0.35 0.40 0.45 0.50

STATIC PRESSURE (in. wg)

FLOW

IN

CUBIC

FEET

PER

MINUTE

(cfm)

C06031

Fig. 31

--- Outdoor--Air Damper Leakage

0

1000

2000

3000

4000

5000

6000

0.05

0.10

0.15

0.20

0.25

0.30

0.35

STATIC PRESSURE (in. wg)

FLOW

IN

CUBIC

FEET

PER

MINUTE

(cfm)

C06032

Fig. 32

--- Return--Air Pressure Drop

+

C7400A1004

HH57AC078 ENTHALPY

SENSOR

MOUNTING PLATE

C06361

Fig. 33

--- Enthalpy Sensor and Mounting Plate

581B

,C
