3. Connections
3.7 Computer input
Input specification
TTL sync input : U
min
= 2.0 V
RGB input = 0.7 V
pp
± 3dB

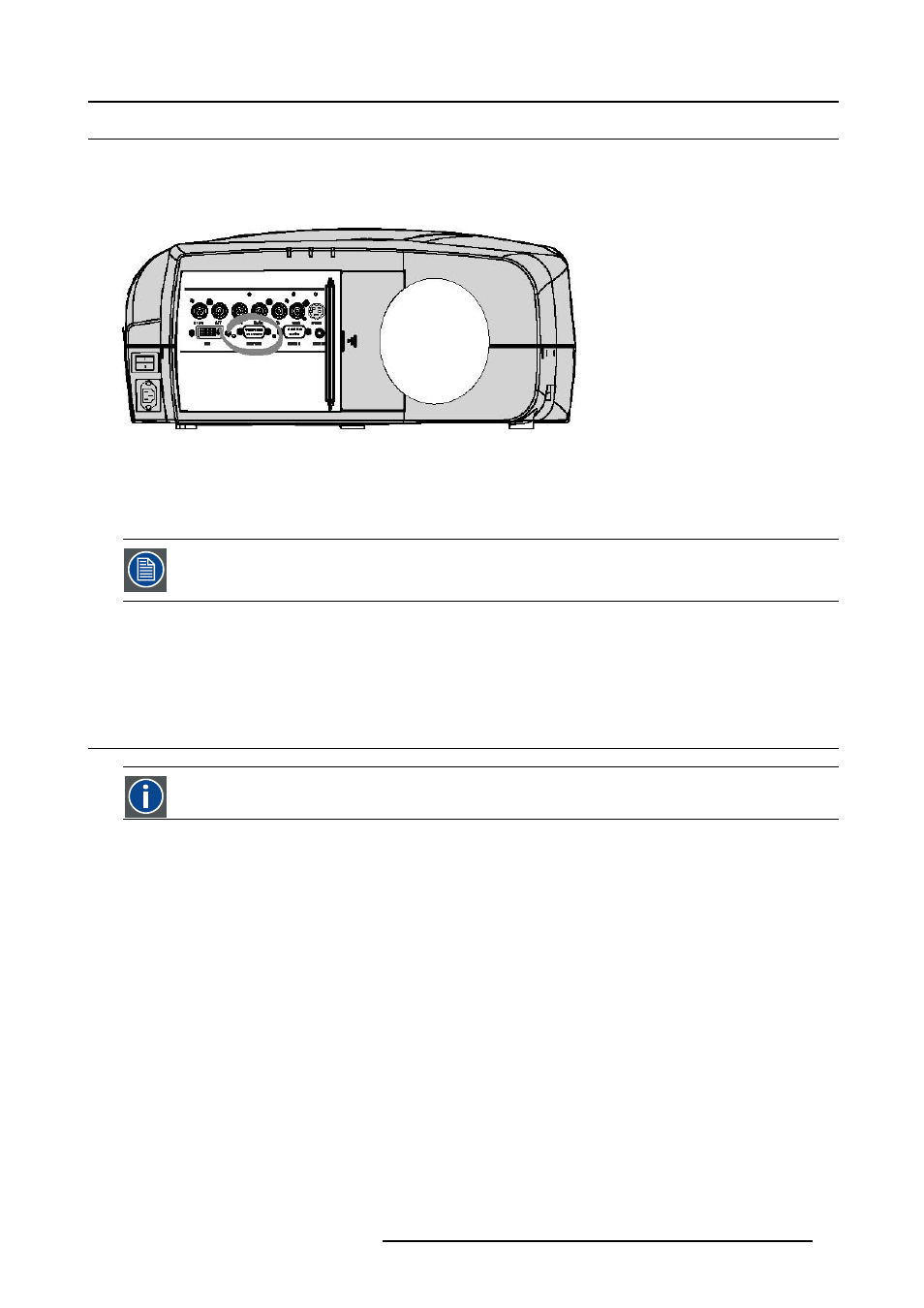

Image 3-9
What can be connected ?
• RGBHV
• RG
S
B
Composite sync only possible on Green
How to select a computer input ?
1. Press 2 on the RCU
Note: Another way for selecting this input is via the Menu.
3.8 Serial Digital Interface (Optional)
SDI
Serial Digital Interface
Input specifications
SDI input : BNC
SDI output : BNC (=loop through)
typical : 0.8 Vpp
75Ω terminated
output impedance: 75Ω
R5976367 BARCOIQ GRAPHICS 500 01/02/2007 25
