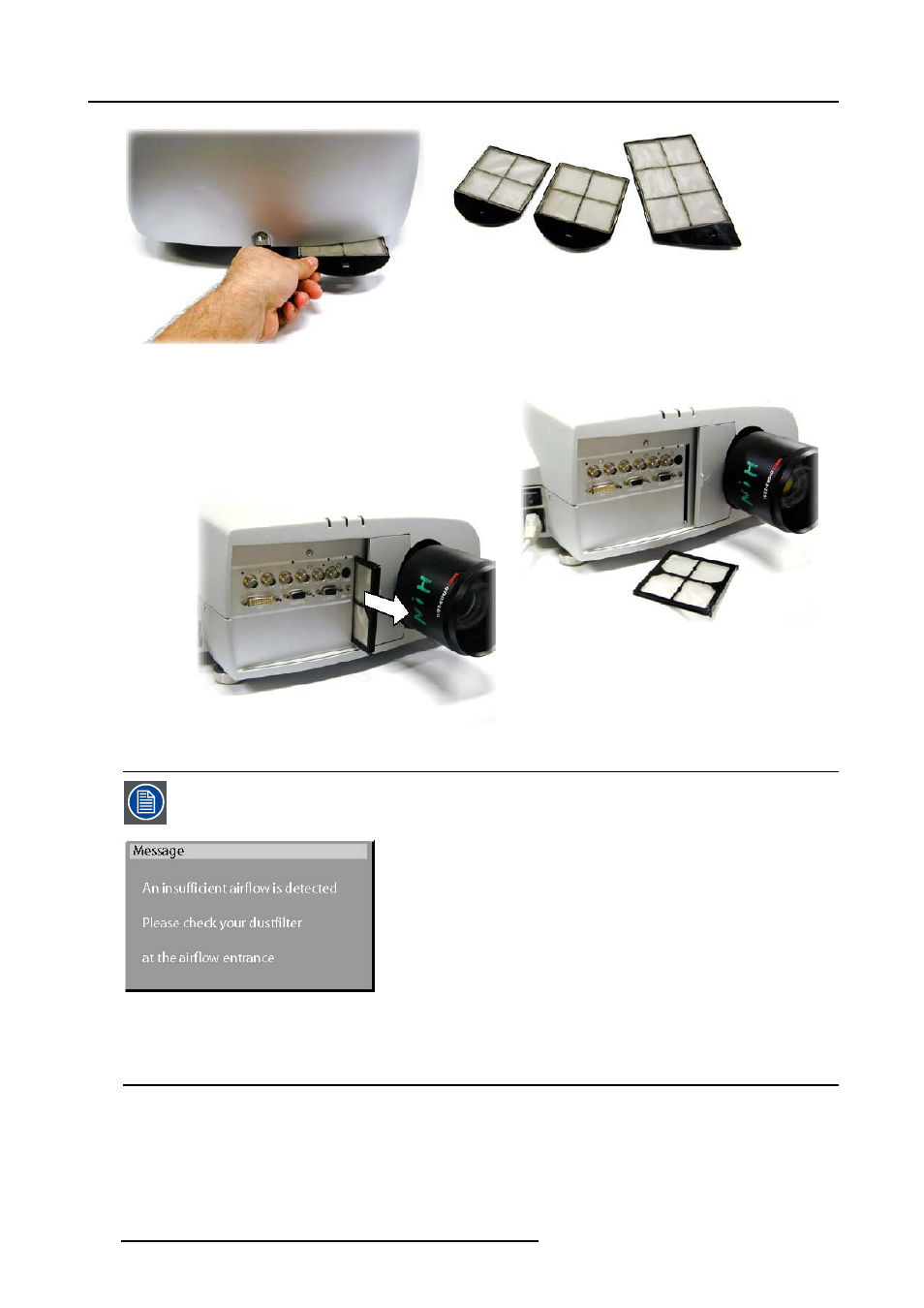

A. Cleaning the dustfilters
Image A-3
Lamp filter removal
Image A-4
lamp & X-Cube filters removed
Image A-5
Input filter removal
Image A-6
Input filter removed
If the airflow is falling under a predetermined treshold value a warning will be displayed on the screen.
Image A-7
At that time it is strongly recommended to replace or clean the dustfilter under the X-cube. Failing to do so,
will strongly reduce the lifetime of the LCD’s and the analyzers.
The manufacturer reserves itself the right to refuse warranty repair if the projector was working with dirty
dustfilters.
126
R5976367 BARCOIQ GRAPHICS 500 01/02/2007
