3. Connections
Which signal can be connected ?
Standard S-Video (S-VHS) with separate Y(luma) and C (chroma) signals.
How to select the S-Video input ?
1. Press 4 on the RCU
Note: Another way for selecting this input is via the Menu.
The projector allows the input of more S-Video signals (up to 3 composite video signals).
"S-Video extended configuration", page 28
This note is not valid for the Pro version:
The Audio&Video optional layer(3) allows the use of an additional S-Video input (referred to as S-Video4).
The selection of this optional input happens the same way as the standard input (key 4)
3.6 Digital Visual Interface (DVI) input
DVI
Digital Visual Interface is a display interface developed in response to the proliferation of digital flat panel displays.
The digital video connectivity standard that was developed by DDWG (Digital Display Work Group). This connection
standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins
that handles both digital and analog video. This standard uses TMDS (Transition Minimized Differential Signal) from
Silicon Image and DDC (Display Data Channel) from VESA (Video Electronics Standards Association).
DVI can be single or dual link.
Input specifications
Single link DVI
Differential input voltage: 200 mV - 800mV

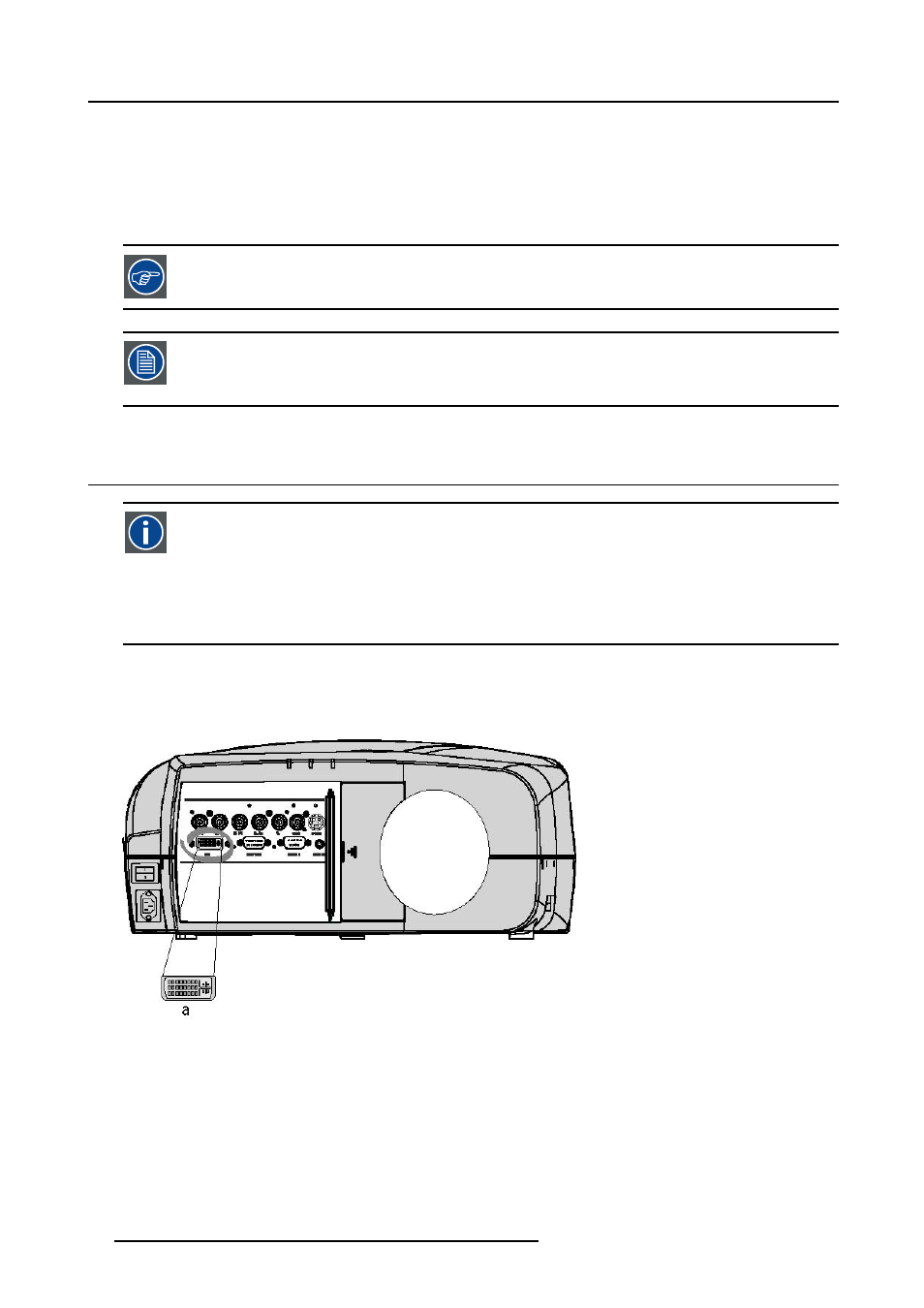

Image 3-8
a DVI-I type connector, analog link (4 pins at the right side of the connector) not supported
How to select the DVI Input ?
1. Press 5 on the RCU
Note: Another way for selecting this input is via the Menu.
24 R5976367 BARCOIQ GRAPHICS 500 01/02/2007
