8. If you are using natural gas or a fixed fuel propane

gas supply a 3/8 NPT flare is provided for LP tank.

Check for gas leaks as discussed in the “Checking for

Gas Leaks” Section of this manual on page 4.

9. Open control housing and connect flex line to the main

valve, then close the control housing door. Figure 8.

6. After insuring that all the contents are removed from the

inside of the grill, install the grill in the BHA surround by

slightly tilting the grill forward and placing it on the top

of the support bracket. See Figure 6.

7. Mount the grill to the BHA surround using four 1/4-20 x

1 1/4” screws. See Figure 7.

BHa & BHaX a

sseMBly

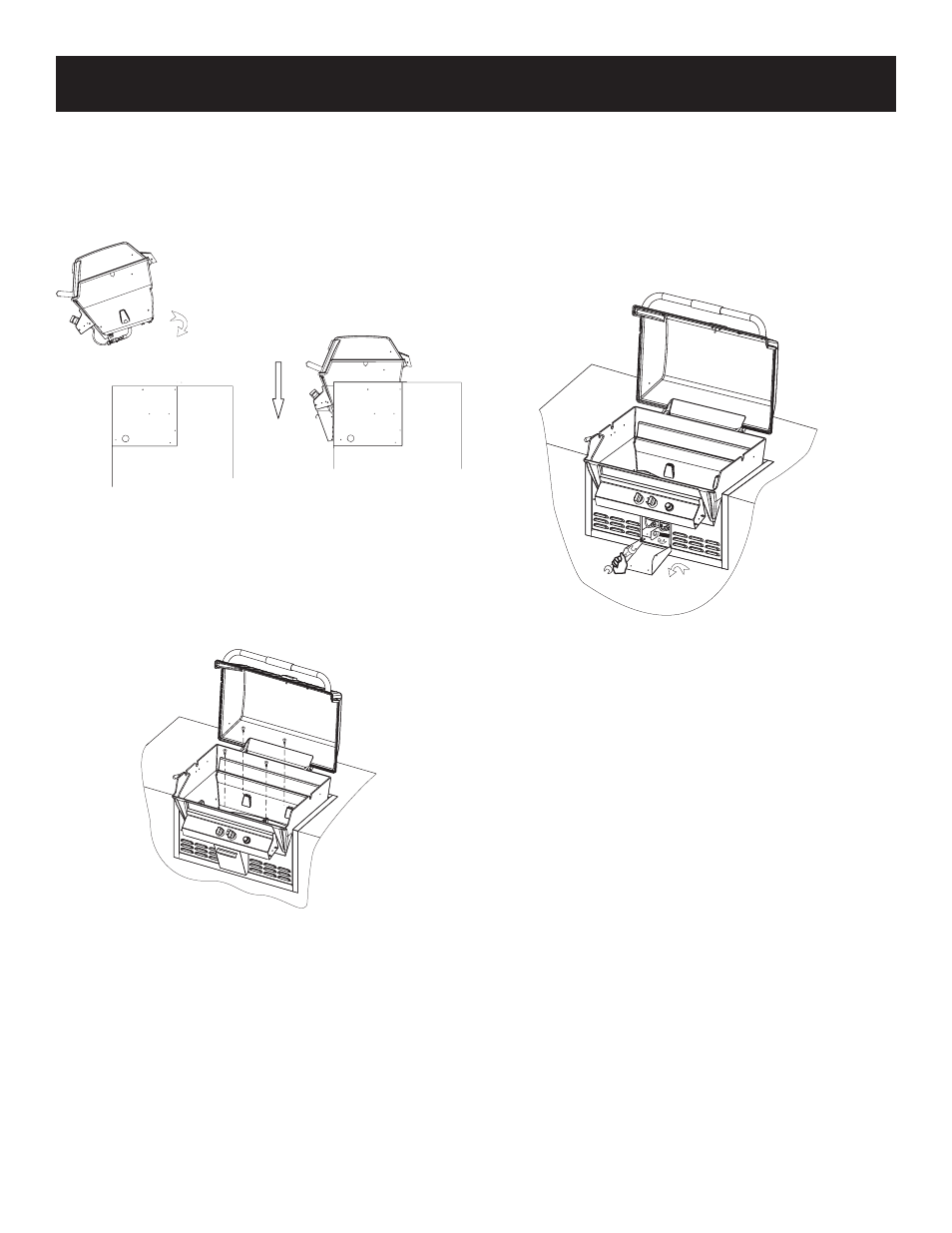

Figure 6

Figure 7

Figure 8

Refer to your Grill Head Installation Instructions to com-

plete installation of your Broilmaster grill.
