Page 13 B101502-1-0311
BBA T
ANK
C
ADDY
I
NSTALLATION
Recommended Tools: Phillips Screw Driver or an
electric screw driver.

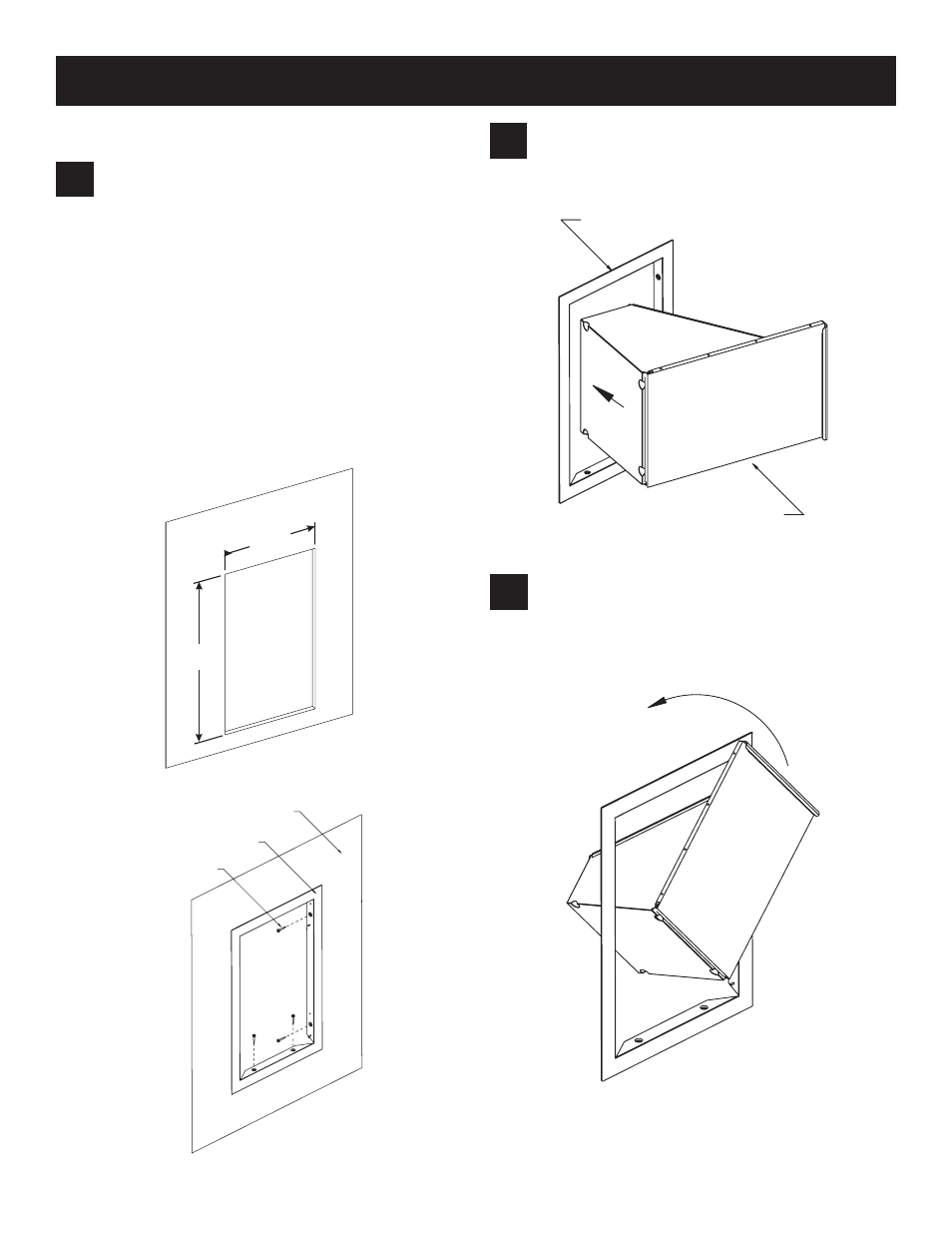

Make sure BBA Tank Caddy opening dimensions match
those in FIGURE 1. Place the BBA Frame Assembly in
the Built-In Enclosure.
Secure the BBA Frame to the Enclosure with eight (8)
8 x 3/4” Hex Head screws as shown in FIGURE 1
Note: The hinge pins on the BBA Frame will be
located near the bottom of the Built-In Enclosure when
properly installed. Also See the proper dimensions of
the opening in FIGURE 1
While positioned on its side, place the BBA Door
Assembly into the BBA Frame opening. FIGURE 2.
Once located inside the BBA Frame, rotate the BBA
Door to the upright position.
FIGURE 3.
2
1
3
2413/16”
13 15/16”
BUILD IN
ENCLOSURE
BBA FRAME
ASSEMBLY
SCREWS (8)
BBA FRAME ASSEMBLY
BBA DOOR ASSEMBLY
FIGURE 1
FIGURE 2
F
IGURE
3
