Page 7
B101502-1-0311
BHa-1 & BHaX-1 G
rill
s
urrOunD
e
XPlODeD
v
iew
& P
arts
l
ist

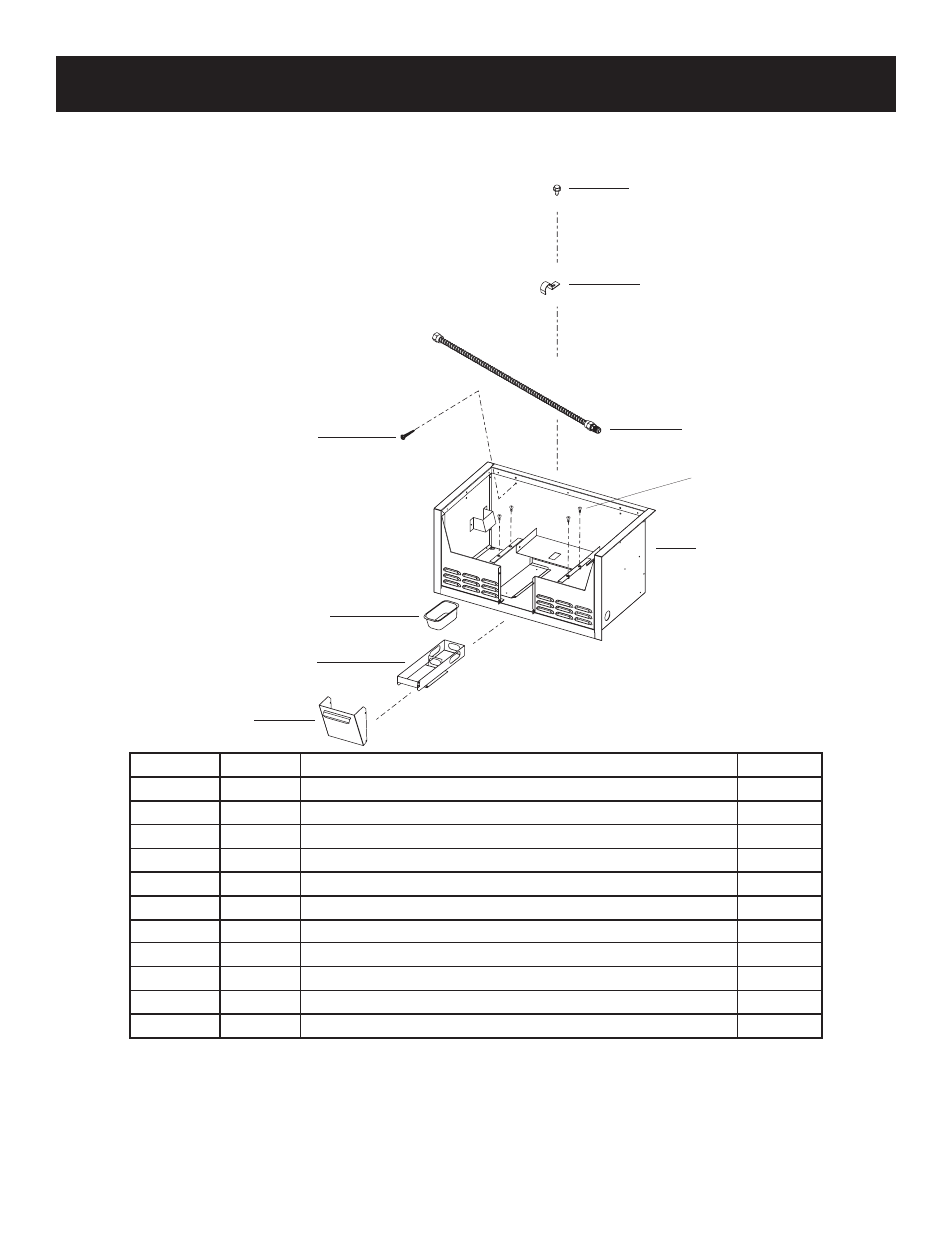

Verify that all parts listed on the exploded view of this manual have been included in this
Built-In Kit before beginning installation.
Caution: Use caution when handling parts, as they may contain sharp edges.
Work gloves are recommended to prevent injury.
Tools Required: Phillips Head Screw Driver (An electric screw driver or drill is recommended to ease installation)
4
3
2
1
5
6
7
8
9
Index No. Part No. Description
Quantity
1
R2737
10 x 1/2 Phillips Head Screw
1
2
B101206 Flexline Bracket
1
3
B101205 Flexline
1
4
B101200 BHA Assembly
1
4
B101529 BHAX Assembly
1
5
B101022 8 x 3/4” Hex Head Screw
8
6
B101178 Grease Tray
1
7
B101204 Control Housing Assembly - BHA
1
7
B101530 Control Housing Assembly - BHAX
1
8
B100113 1/4 - 20 x 1 1/4 Screw (use only with T3/P3 Sereis grill heads)
4
9
B060337 Grease Cup
2
All repair part orders should be placed through your local Broilmaster
®
dealer. To locate a dealer in your area, contact
Broilmaster Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate service, please
provide the following information when placing a repair part order: Model Number, Part Name, Part Number, and Quantity
of parts needed.
