Page 19: Arts
Page 19
B101502-1-0311
BDa s
inGle
D
OOr
e
XPlODeD
v
iew
anD
P
arts
l
ist
All repair part orders should be placed through your local Broilmaster
®
dealer. To locate a dealer in your area,
contact Broilmaster
®
Customer Service at 800-851-3153 • www.broilmaster.com. To ensure prompt and accurate
service, please provide the following information when placing a repair part order: Model number of your Single
Door, Part Name, Part Number, and Quantity of parts needed.

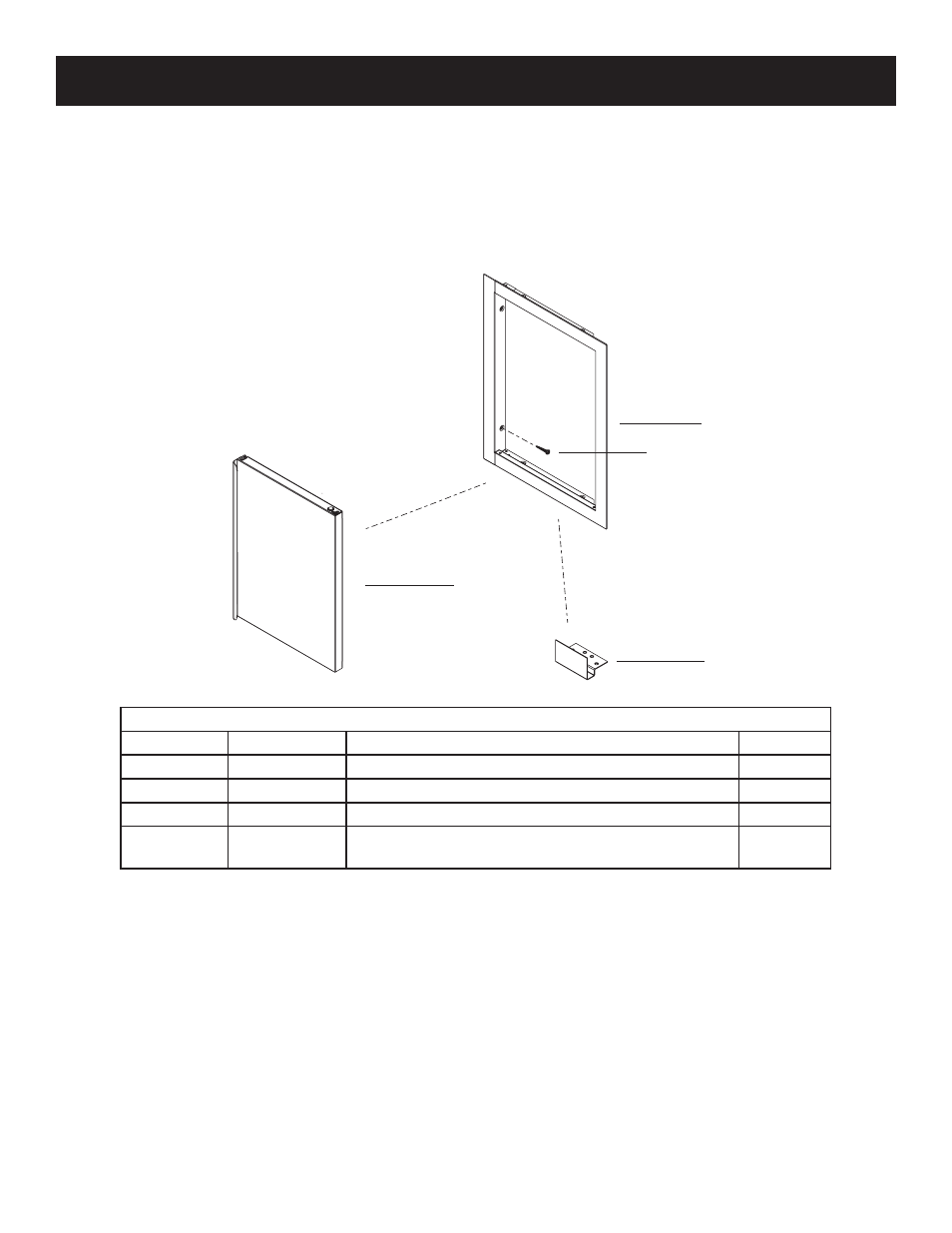

VERIFY THAT ALL PARTS LISTED IN THE EXPLODED VIEW ON THIS PAGE HAVE BEEN INCLUDED IN
THIS BUILT-IN KIT BEFORE BEGINNING THIS INSTALLATION.
CAUTION: USE CAUTION WHEN HANDLING PARTS, AS THEY MAY CONTAIN SHARP EDGES.
WORK GLOVES ARE RECOMMENDED TO PREVENT INJURY.
1
3
4
2
PARTS LIST
Index No.
Part No.
Description
Quantity
1
B101191
BDA Door Frame
1
2
B101022
8 x 3/4” Hex Head Screw
8
3
B101192
BDA Door
1
4
B101153
BDA Door Bracket (used on double door installation
only)
1
