nclOsure
c
OnstructiOn
G
uiDelines
Enclosure must be construction from non-combustible material.
If tile is used on the top surface of your enclosure, it may be necessary to enlarge openings at the top edges to allow the
frame pieces of the BHA and BSA to mount flush against the enclosure.
Screws for enclosure mounting have been supplied. Installer must measure for thickness and use appropriate hardware for
installation. If the enclosure is constructed from masonry materials, it may be necessary to substitute appropriate screws
and fasteners.

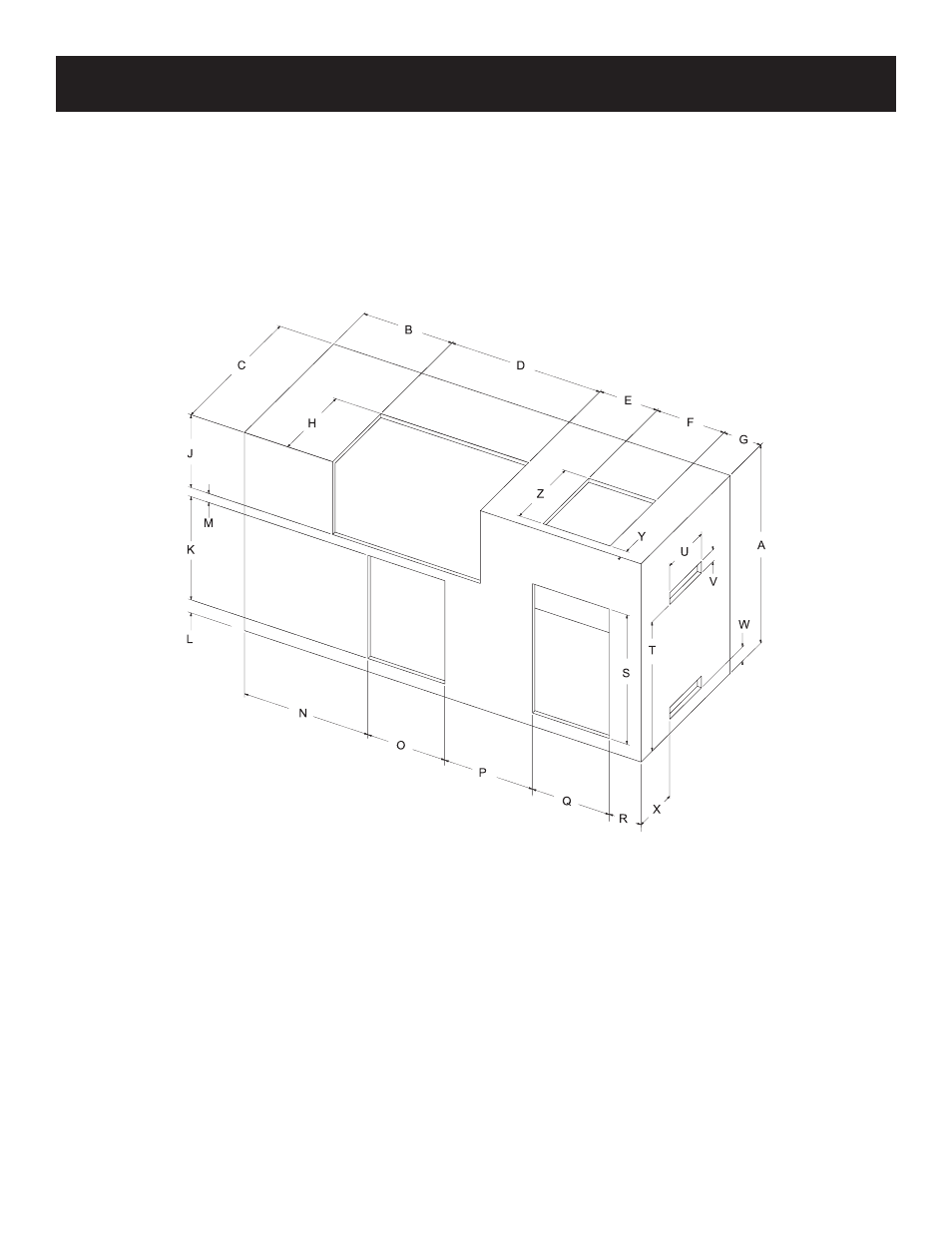

This diagram is only a basic plan for constructing an enclosure for your built-in kit. All construction and installation should
comply with all local building codes and requirements.
MINIMUM REQUIREMENTS
Key Dimension in Inches
Key Dimension in Inches
A
38” (Minimum)
O
14” (Single) - 27 1/2” (Double)
B
16” (Minimum)
P
15 7/8” (Single) - 9 1/8” (Double)
C
28” (Minimum)
Q
13 15/16”
D
26 13/16”
R
5” (Minimum)
E
10 11/32”
S
24 13/16”
F
12 3/16”
T
24 3/4”
G
6” (Minimum)
U
10”
H
15 3/8”
V
2 1/4”
J
14”
W
2 3/4”
K
19 13/16”
X
9”
L
2 1/2”
Y
1 13/16”
M
1 11/16”
Z
14 3/8”
N
22 3/8” (Single) - 15 5/8” (Double)
