Chapter 2
The Grand Tour
This chapter identifies the various components of your computer. Become
familiar with each component before you operate the computer.
Front with the display closed

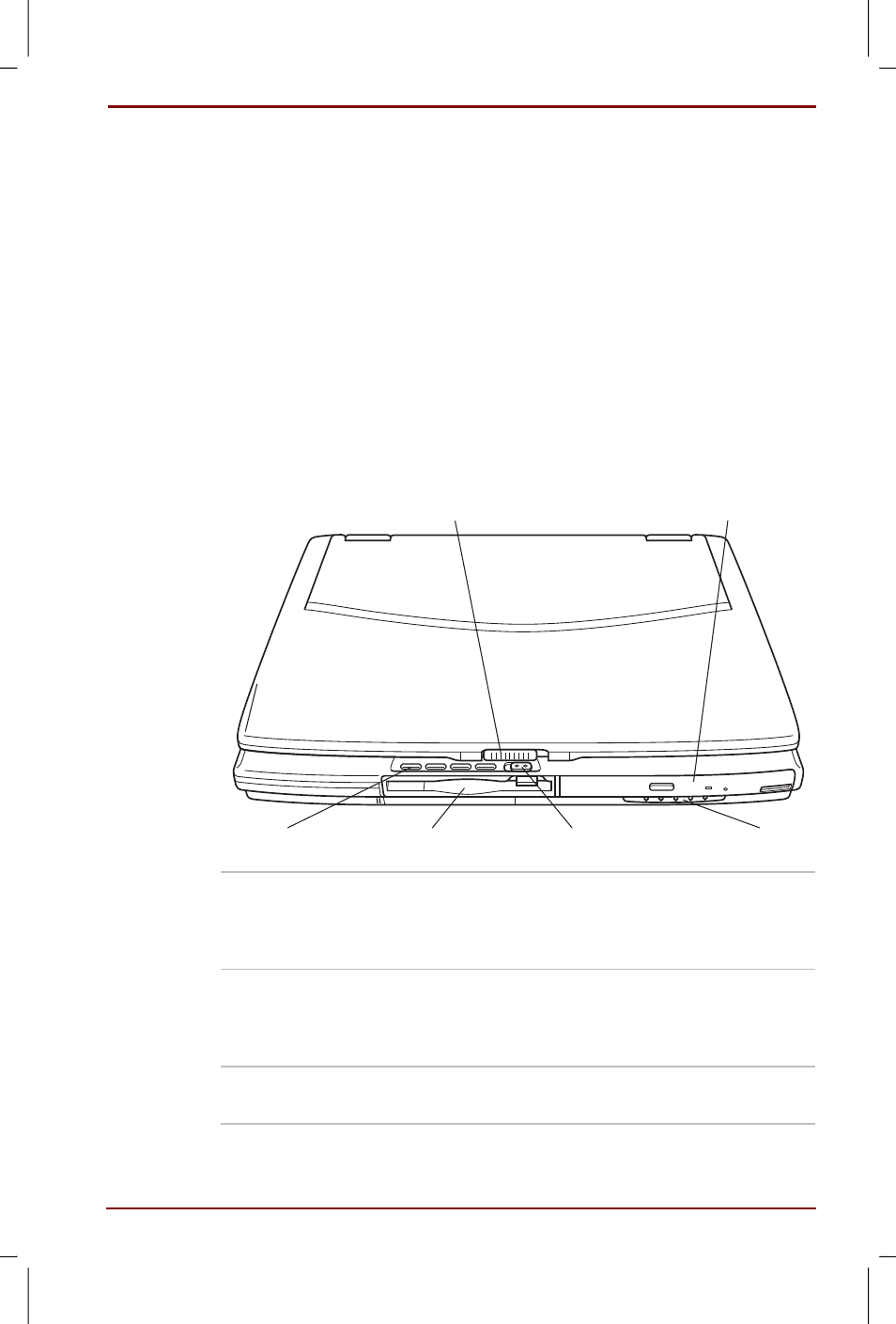

This figure shows the computer’s front with its display panel in the
closed position.
DISKETTE
DRIVE
CD CONTROL
BUTTONS
DISPLAY LATCH
CD POWER
BUTTON
DVD-ROM DRIVE
SYSTEM
INDICATORS
Diskette drive This drive lets you use both 1.44 MB double-
sided, high-density, double-track (2HD) and
720 KB double-sided, double-density, double-
track (2DD) disks.
System indicators The system indicators provide icons for
monitoring the status of DC IN, Power, Battery,
Built-in HDD and Diskette or DVD-ROM drive.
Details are given later in this chapter.
Display latch This latch secures the LCD panel in its closed
position. Slide the latch to open the display.
