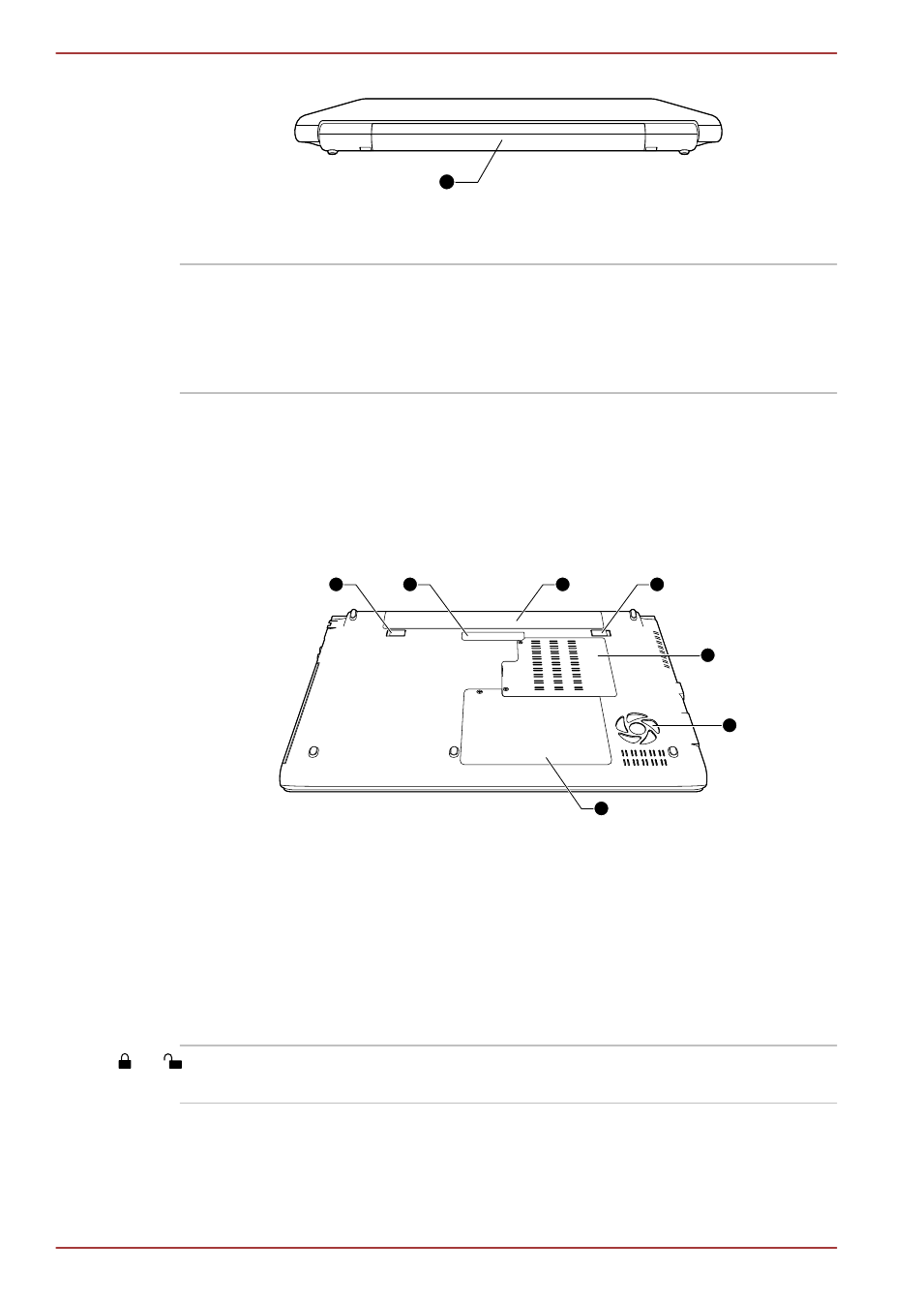

Figure2-6The back of the computer
1
1. Battery pack
Battery pack The battery pack provides power to the computer
when the AC adaptor is not connected. For more
detailed information on the use and operation of
the battery pack please refer to chapter 6,
Power
and Power-Up Modes .
Underside
The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.
Figure2-7The underside of the computer
1 2 4
7
3
5
6
1. Battery lock 5. Memory module slot cover
2. Docking port* 6. Cooling vents
3. Battery pack 7. HDD/SSD cover
4. Battery release latch
* Provided with some models.
Product appearance depends on the model you purchased.
Battery lock Slide the battery lock to release the battery pack
ready for removal.
