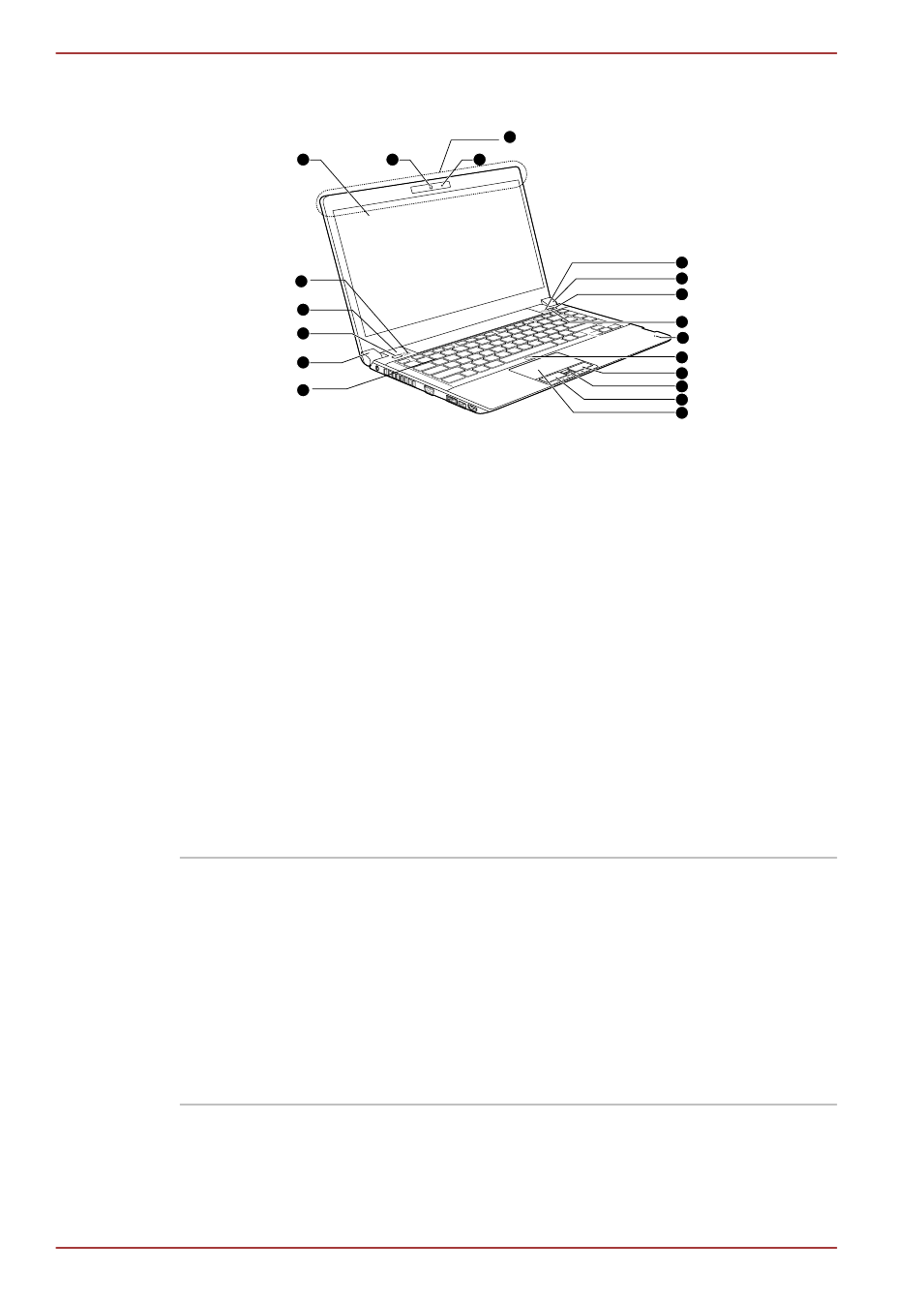

Figure2-8The front of the computer with the display panel open
13
11
12
12
10
2 1
17
16
15
3
6
5
7
8
4
14
18
9
1. Display screen 10. Touch Pad On/OFF button
2. Web Camera* 11. Fingerprint Sensor*
3. Web Camera LED* 12. Touch Pad control buttons
4. Bluetooth antenna, Wireless LAN
antennas, Wireless WAN antennas
(not shown)* 13. Touch Pad
5. Stereo speaker 14. Keyboard
6. Display hinge 15. Display hinge
7. TOSHIBA Presentation button 16. Power button
8. TOSHIBA eco button 17. LCD Sensor switch (not shown)
9. Microphone 18. Stereo speaker
* Provided with some models.
Product appearance depends on the model you purchased.
Display screen Please be aware that, when the computer is
operating on the AC adaptor, the image
displayed on the internal screen will be
somewhat brighter than when it operates on
battery power. This difference in brightness
levels is intended to save power when operating
on batteries. For more information on the
computer's display, please refer to the
Display
Controller and Video Mode section in appendix
B.
