Chapter 4:
Controls and displays

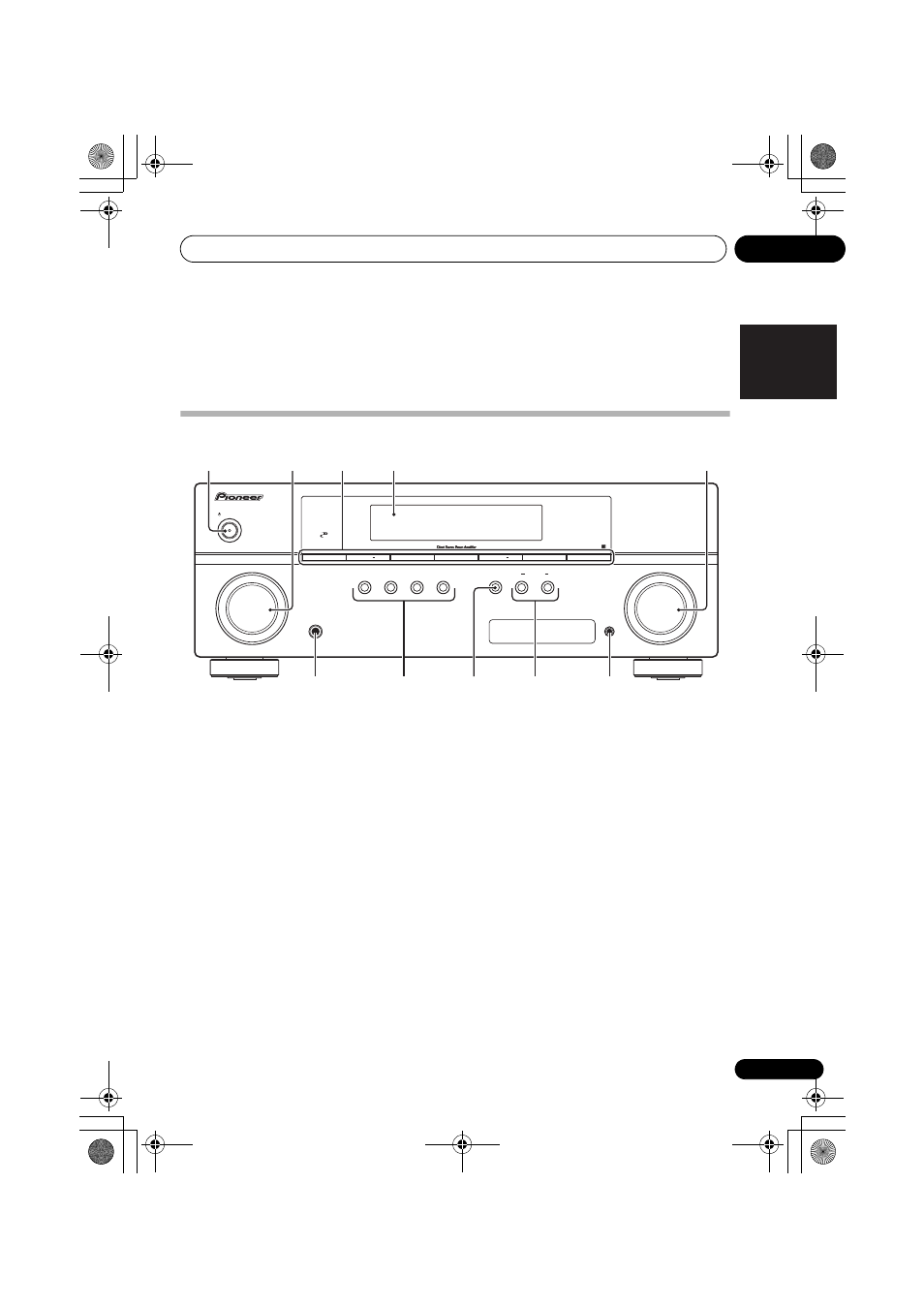

Front panel
1  STANDBY/ON
2 INPUT SELECTOR dial
Selects an input source.
3 Tuner control buttons
BAND
Switches between AM, FM ST (stereo) and
FM MONO radio bands (page 38).
TUNE +/–
Used to find radio frequencies (page 38).
TUNER EDIT
Use with
TUNE +/–, PRESET +/– and
ENTER to memorize and name stations for
recall
(page 38, 39).
PRESET +/–
Use to select preset radio stations
(page 38).
4 Character display
See Display on page 21.
5 MASTER VOLUME dial
6 PHONES jack
Use to connect headphones (page 32).
7 Listening mode buttons
AUTO SURROUND/STREAM DIRECT
Switches between Auto surround mode
(Auto playback on page 26) and Stream
Direct playback. Stream Direct playback
bypasses the tone controls for the most
accurate reproduction of a source
(page 28).
STEREO/A.L.C.
Switches between stereo playback, Auto
level control stereo mode (page 27) and
Front Stage Surround Advance modes
(page 28).
BAND
PHONES
INPUT
SELECTOR
STANDBY/ON
PHASE CONTROL
AUTO SURROUND/
STREAM DIRECT
STEREO/
A.L.C.
ADVANCED
SURROUND STANDARD
SURROUND MASTER
VOLUME SPEAKERS CONTROL
MULTI-ZONE
ON/OFF
PORTABLE
TUNER EDIT ENTER
AUDIO / VIDEO MULTI - CHANNEL RECEIVER VSX-519V
TUNE TUNE + PRESET PRESET +
1 2 3 5 4
6 10 7 9 8
