Connecting up
03
13
En
English
Français
Italiano
Español
Nederlands
Deutsch
Connecting other video components
This receiver has audio/video inputs and outputs suitable for connecting analog or digital video
recorders, including VCRs and HDD/DVD recorders.
1 Connect a set of audio/video outputs on
the recorder to the DVR/VCR AUDIO and
VIDEO inputs on this receiver.
Use a stereo RCA phono cable for the audio
connection and a standard RCA video cable for
the video connection.
2 Connect a set of audio/video inputs on
the recorder to the DVR/VCR AUDIO and
VIDEO outputs on this receiver.
Use a stereo RCA phono cable for the audio
connection and a standard RCA video cable
for the video connection.
3 If your video component has a digital
audio output, connect it to a digital input on
this receiver.

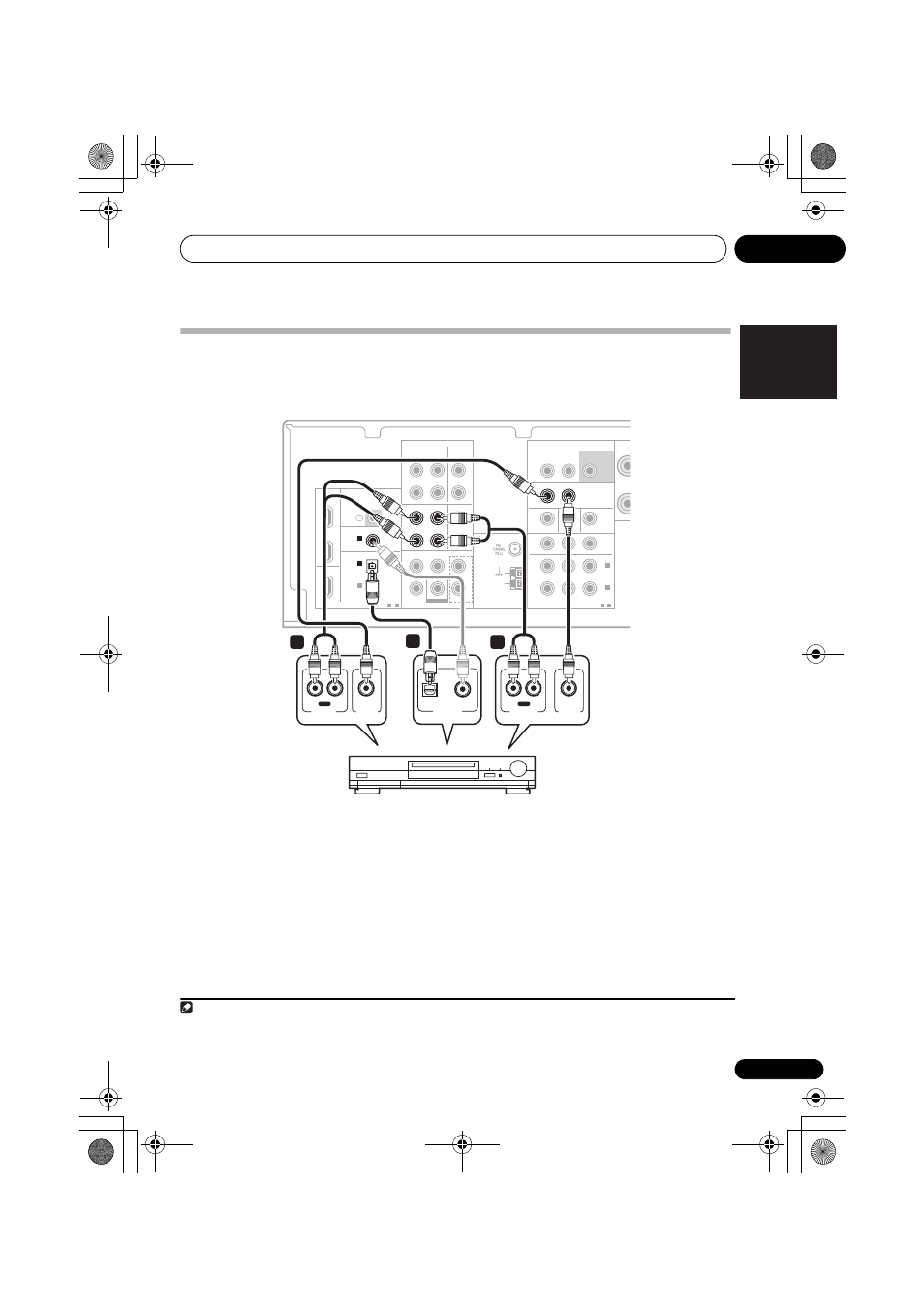

The example shows a recorder connected to the
DIGITAL OPTICAL IN 2 (DVR/VCR) input.
1
AUDIO
AUDIO
DIGITAL
COMPONENT VIDEO
BD/DVD MULTI CH IN
BD/DVD IN
HDMI
ANTENNA
AM
LOOP
FRONT
L
R
L
R
CENTER
SURROUND
COAXIAL
(CD)
IN
1
(CD-R/TAPE)
IN
1
1
-
2
(DVR/VCR)
IN
2
(BD/DVD)
IN
1
(TV/SAT)
IN
2
OPTICAL
ASSIGNABLE
IR
ASSIGNABLE
1
-
2
ASSIGNABLE
OUT
OUT
Y
P
B
P
R
IN
ZONE2 OUT
MONITOR OUT BD/DVD IN
TV/SAT IN
R
SUBWOOFER
PRE OUT
L
R
DVR/VCR
TV/SAT
OUT
IN
DVR/VCR
VIDEO
L
R
OUT
TV/SAT
IN
BD/DVD
IN
OUT
IN
IN
IN
CD-R/TAPE
CD
SUBWOOFER
IN
L
R
DIGITAL
OUT
IN
DVR/VCR
OUT
IN
DVR/VCR
VIDEO
COAXIAL
OPTICAL
(CD)
IN
1
(DVR/VCR)
IN
2
R
L
VIDEO IN
AUDIO IN
IN
R
L
AUDIO OUT
PLAY
OUT
VIDEO OUT
REC
DIGITAL OUT
OPTICAL
COAXIAL
3
2
1
DVR, VCR, LD player, etc.
This receiver
Note
1 If your video component only has an coaxial digital output, you can connect it to the coaxial input on this receiver using an
coaxial cable. When you set up the receiver you’ll need to tell the receiver which input you connected the component to (see
Choosing the input signal on page 32).
