[VSX-D514 only]
• When connecting, make sure that all components are switched off and unplugged.
• Do not use the signal converter and supplied cords for any other purpose than that
described here.
• When connecting the signal converter to the receiver, use the supplied red/black speaker
cords.

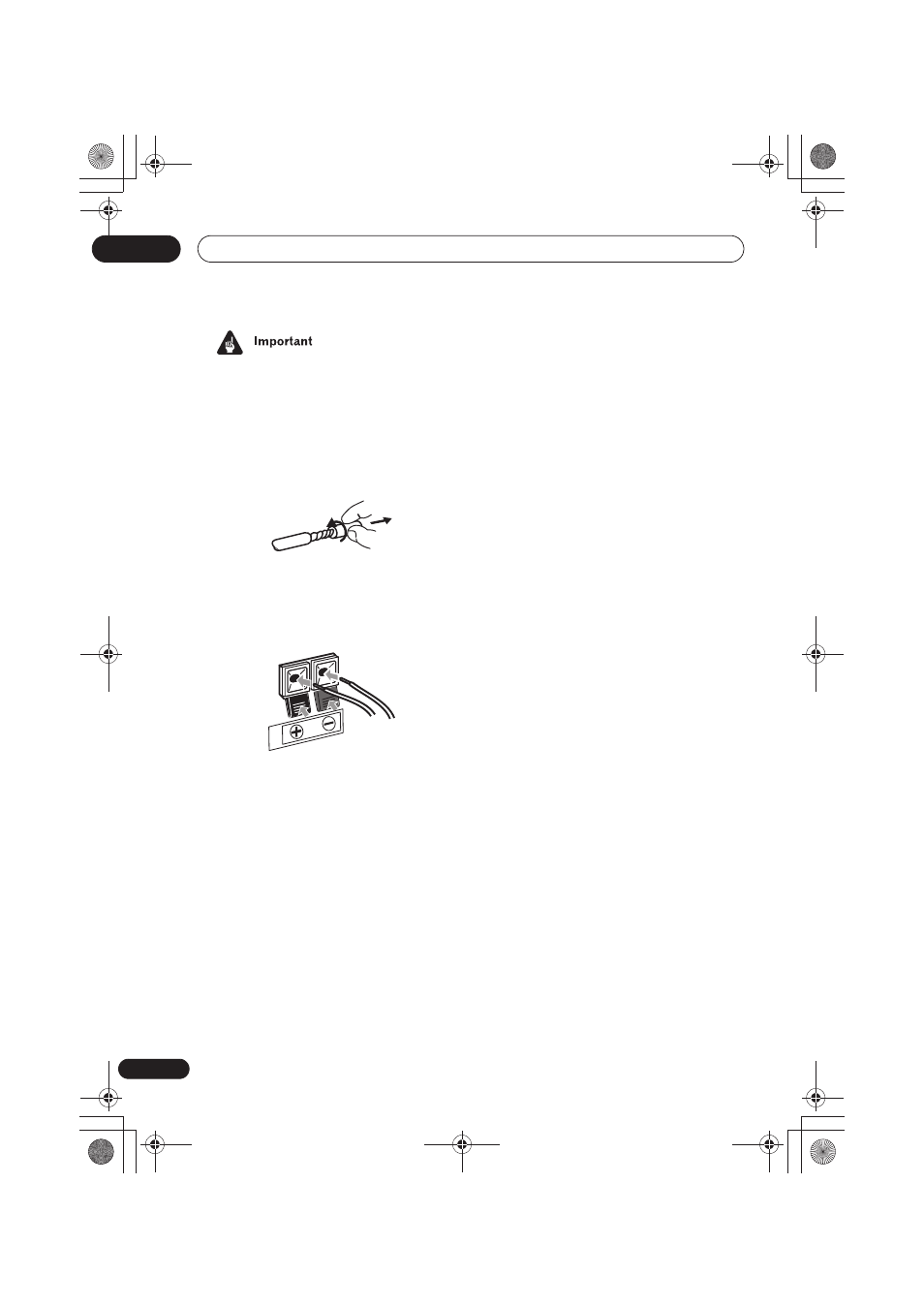

1 Twist and pull off the protective shield
on each supplied speaker cord.
2 Connect the speaker cords to
SURROUND INPUT terminals on the signal
converter. Insert the red wire into the red
(+) tab and the black wire into the black
(-) tab.
3 Connect the SURROUND INPUT on the
signal converter to the surround speaker
terminals on the AV receiver (VSX-D514),
using the supplied red/black speaker
cords.
4
Connect the WIRELESS IN L/R jacks on
the transmitter to the OUT L/R jacks on the
front panel of the signal converter, using
the supplied RCA stereo cord.
5
Connect the supplied AC adapter to
the DC IN inlet on the rear panel of the
transmitter, then plug into a power
outlet.
6
Plug the system and wireless speaker
AC power cords into a power outlet.
