Connections
[VSX-C402 only]
• When connecting, make sure that all components are switched off and unplugged.

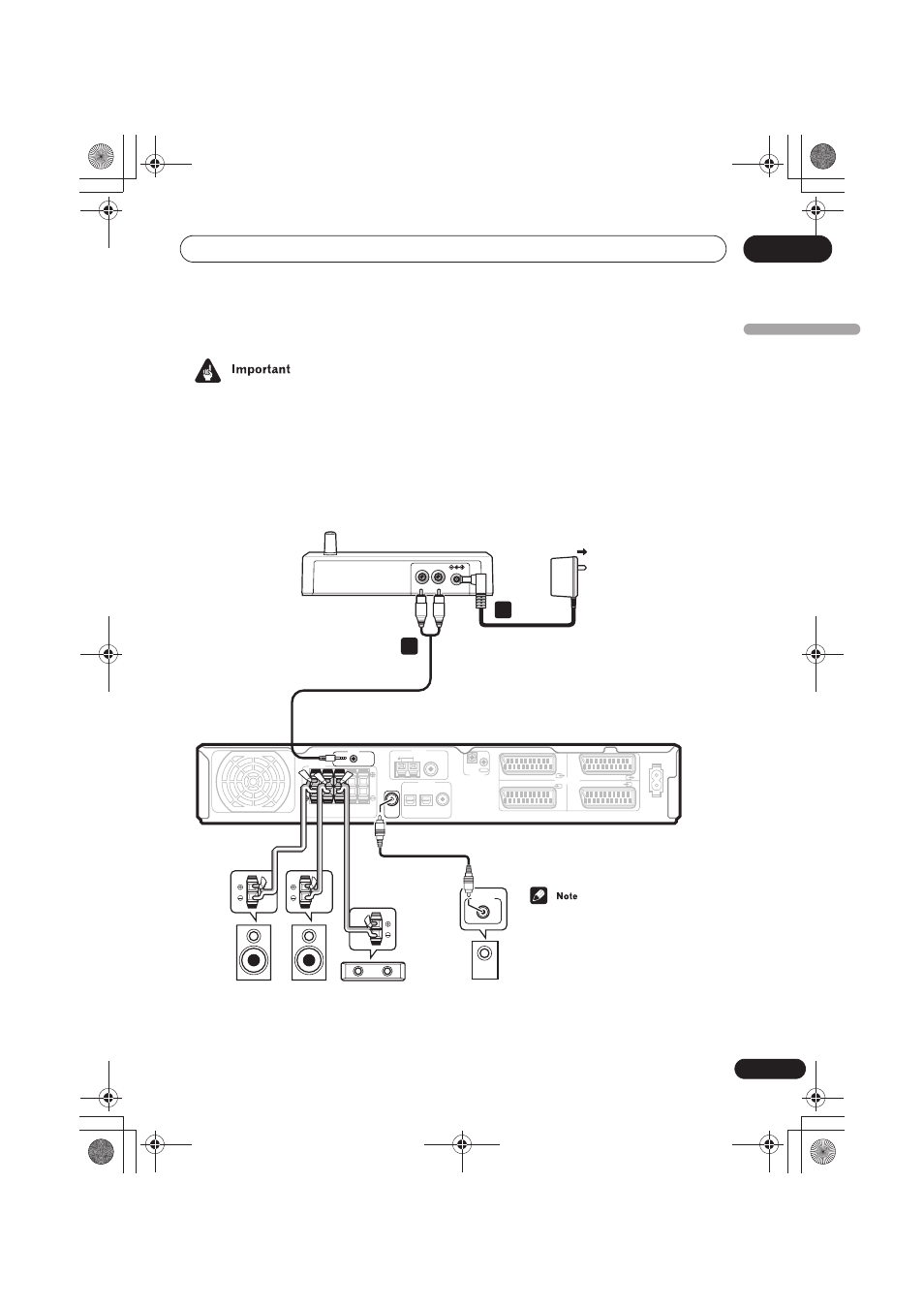

1 Connect the WIRELESS IN L/R jacks on
the transmitter to the PREOUT
(SURROUND) jacks on the rear panel of
the AV receiver (VSX-C402), using the
supplied RCA mini cord.
2 Connect the supplied AC adapter to
the DC IN inlet on the rear panel of the
transmitter, then plug into a power
outlet.
3
Plug the system and wireless speaker
AC power cords into a power outlet.
COAX
CONTROL
AV CONNECTOR
AC IN
DVD IN STB IN
VIDEO IN/OUT DVR/TV IN/OUT
FM UNBAL 75Ω
AM LOOP
ANTENNA
IN
OUT
SUB
WOOFER OUT
STB (DVD)
OPT1
DVR/TV (DVD)
OPT2
DVD (STB)
DIGITAL IN
CENTER L R L R
FRONT SURROUND
SPEAKERS
SURROUND
PREOUT
R
WIRELESS
IN L
VSX-C402
To power outlet
2
1
Transmitter
LINE LEVEL
R L C SW
When using the wireless speaker,
do not connect any speakers to the
surround speaker terminals.
