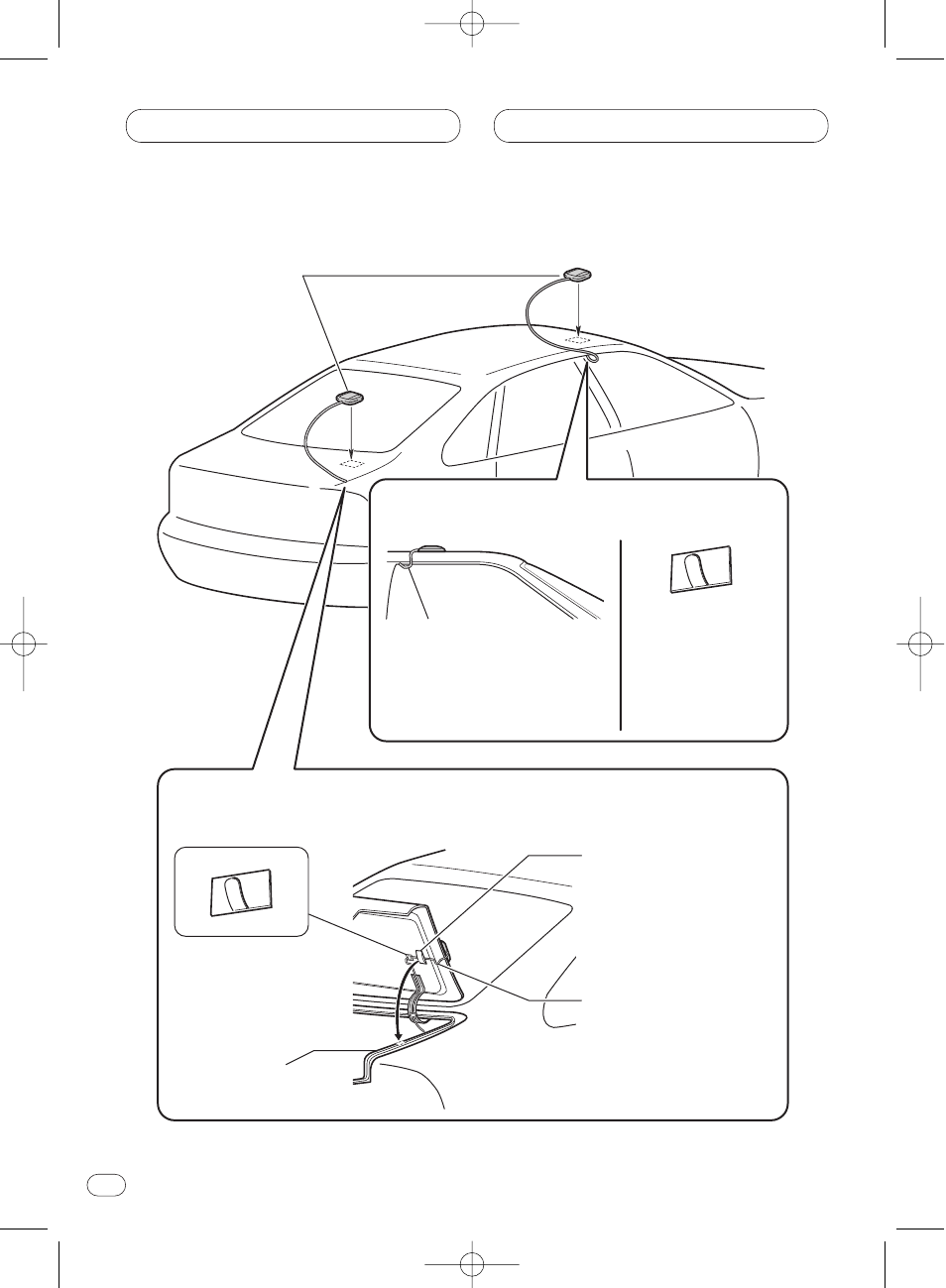

When installing the aerial outside the vehicle (on the body)
Put the GPS aerial in a position as level as possible, such as on the roof or boot lid. (The GPS aerial is
fastened with a magnet.)
GPS aerial
When routing the lead in from the top of
the door
When routing the lead in from inside the boot
Rubber packing
Clamps
Use clamps to secure the
lead where necessary
inside the vehicle.
Clamps
Use clamps to
secure the lead
where necessary
inside the vehicle.
Make a U-shaped loop in the lead
on the outside to prevent
rainwater from flowing along the
lead into the interior of the vehicle.
Make a U-shaped loop in
the lead outside the rubber
packing to prevent
rainwater from flowing
along the lead into the
interior of the vehicle.
Waterproof pad
Make sure the waterproof
pad contacts the top of the
rubber packing.
Installation
En
19
