6
En
4

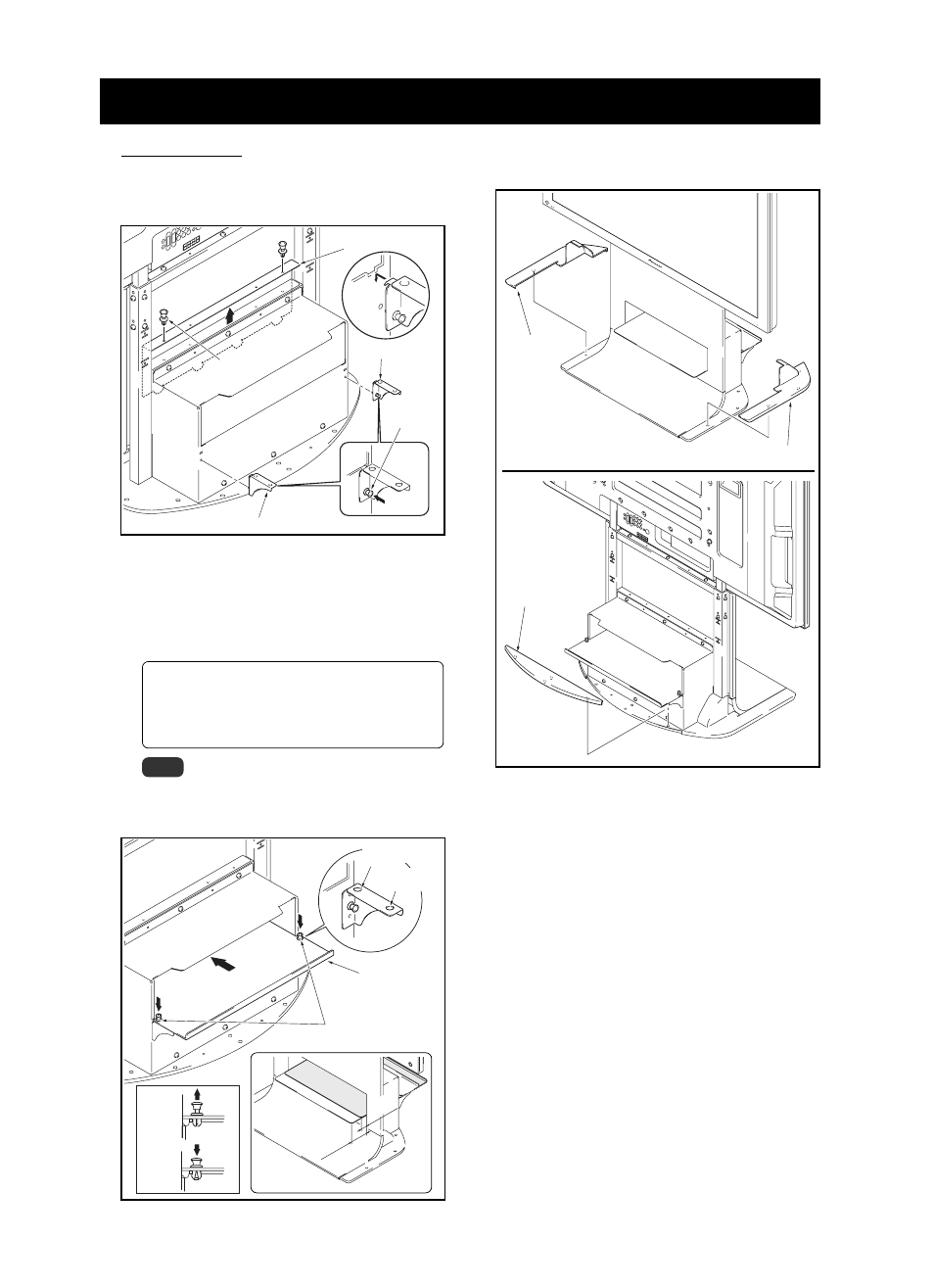

When using a shelf.
A shelf can be attached to the stand.
1 Remove the shelf cover and then attach the shelf supports
L and R to the stand.
Shelf cover
Push rivet
Hole for front
position use
Shelf support L
Push in
2 Push the shelf panel in from behind and fix it in place with
the push rivet.
The shelf panel installation position be selected from
two levels: either the front or the back.
Set it accorrding to the device you have.
When changing its position, you can easily remove it
by pulling up the knob on the top of the push rivet.
I nterior dimensions of the shelf opening: 420 mm
[16-17/32 inch] (effective width) [17-5/32 inch] > x 102 mm [4-1/32 inch] (height)
Depth of the shelf: 349 mm [13-3/4 inch]
Bearing capacity: up to 10 kg [20.1 lbs]
Note
Be careful when installing anything other than a media
receiver (particularly an AV amplifier etc.) on this shelf,
because it may block heat discharge etc. For details, see
the instruction manual for each device.
Front
position
Back
position
Front side
Shelf support R
Hole for back
position use
Shelf panel
Push rivet
Push rivet
Unlocked
position
Locked
position
Installation and assembly instructions
5
Installing base covers L, R and rear.
Insert them along the base.
Base cover L
Base cover R
Base cover rear
