4
En

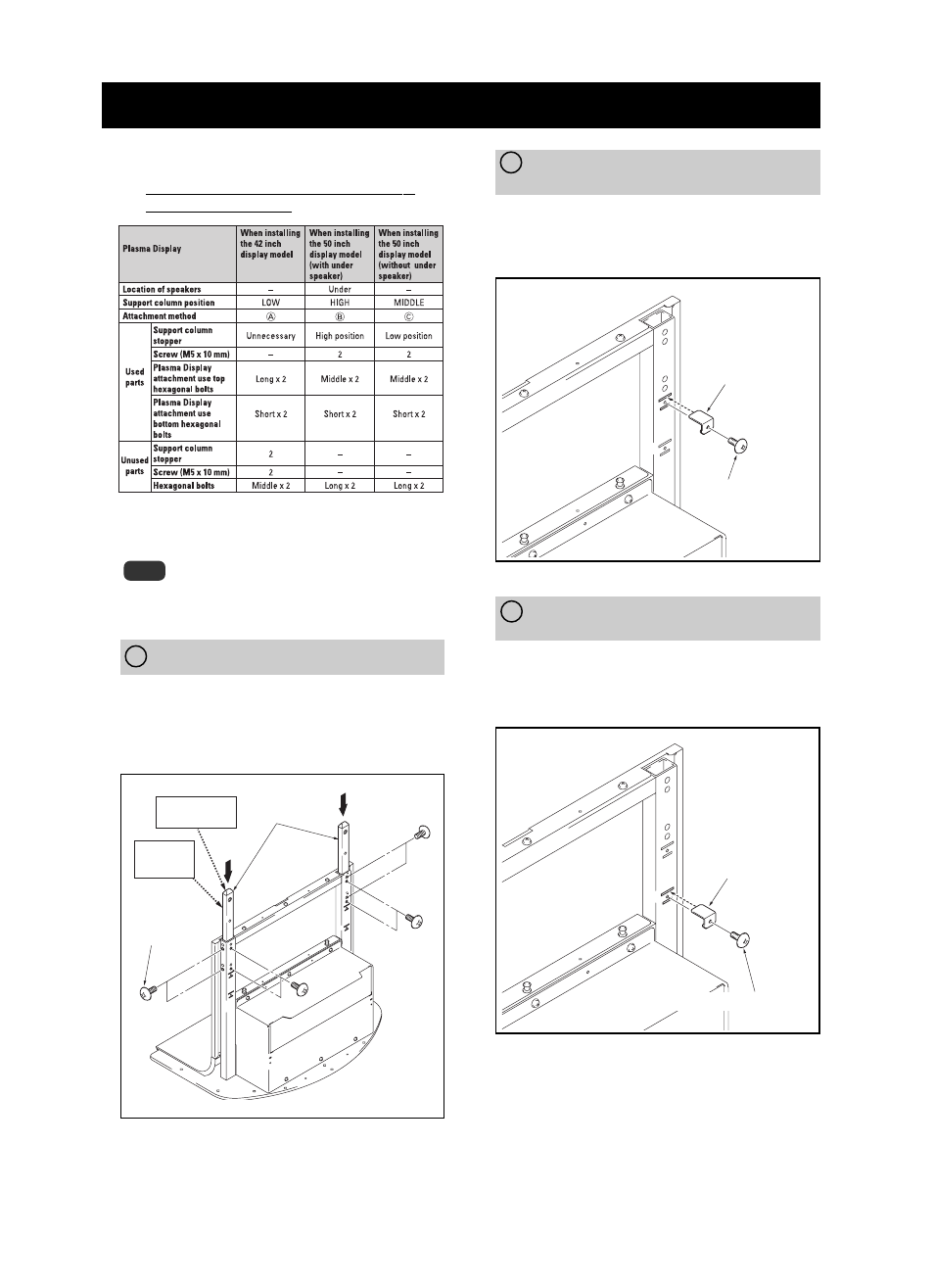

Installation and assembly instructions
1
Attaching the support columns to the stand. B When installing the 50 inch display model
(with under speaker)
Attach the support column stoppers to the high position notches
on the back of the stand and fix them in place with screws (M5
x 10 mm [13/32 inch]). (2 locations on the right and left)
The same applies to support column attachment method
A.
Support column
stopper
Screw
(M5 x 10 mm [13/32 inch])
The attachment procedure varies according to the type
and form of the Plasma Display to be attached. Perform
this attachment using either procedure
A, B or C.
Note
Be sure to carefully store the unused support column stopper,
the screws, the bolts, the hexagonal wrench, and the Operating
Instructions together.
A When installing the 42 inch display model
Insert the support columns into the stand and fix them in
place with screws (M5 x 10 mm [13/32 inch]). (8 locations)
Install each support column so that the side with the symbol
’ is forward and the end with the plastic end cap (pointed) is
upwards.
Table of support column position and parts
for each Plasma Display
Support column
stopper
Screw (M5 x 10 mm [13/32 inch])
C When installing the 50 inch display model
(without under speaker)
Attach the support column stoppers to the low position notches
on the back of the stand and fix them in place with screws (M5
x 10 mm [13/32 inch]). (2 locations on the right and left)
The same applies to support column attachment method
A.
Side with the
symbol
’ is
forward.
End with end cap
points upwards.
Support column
Screw
(M5 x 10 mm
[13/32 inch])
