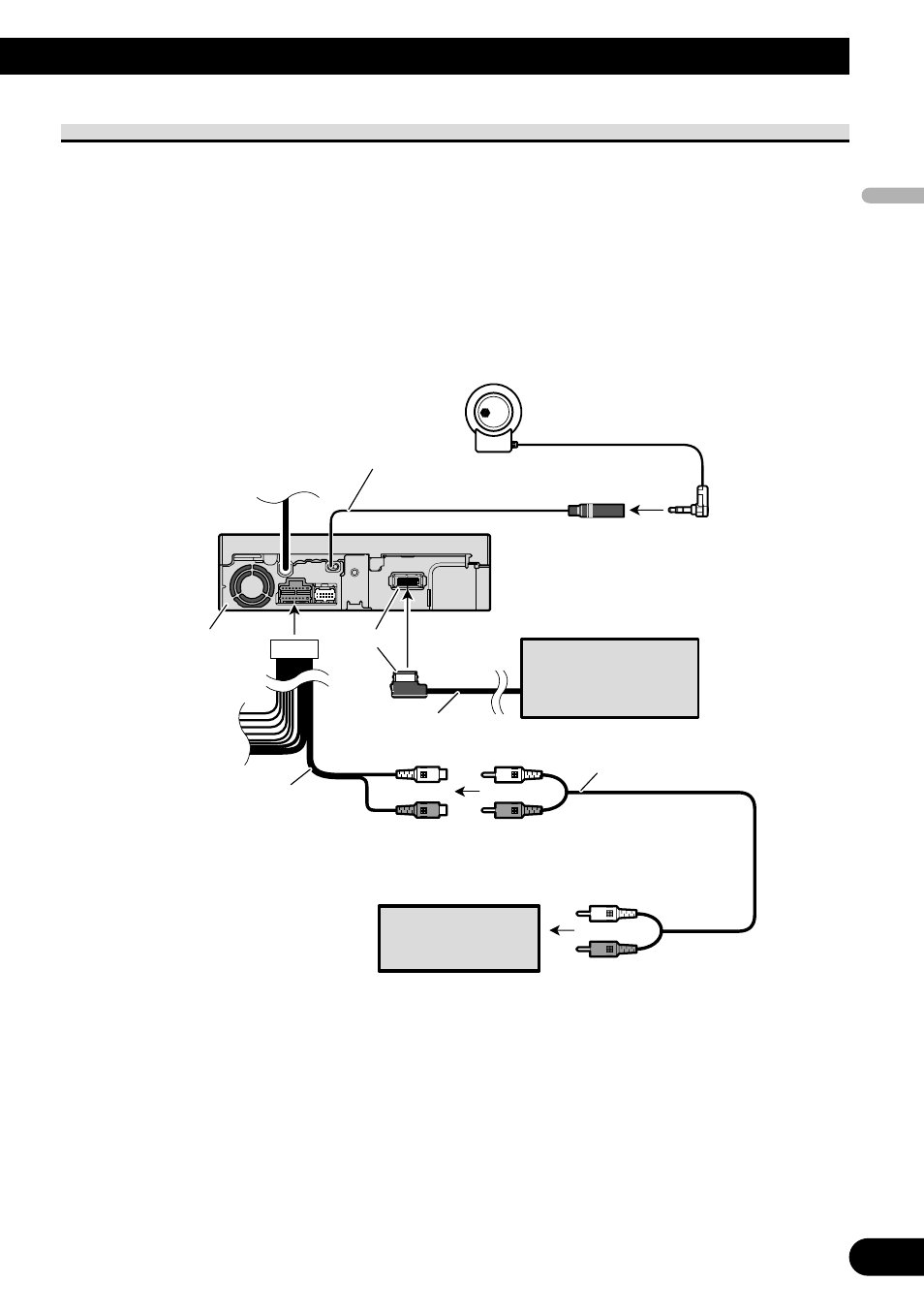

When connecting with a car stereo with RCA audio input
Fig. 4
Navigation unit
(e.g. AVIC-900DVD)
(sold separately)
26 pin cable
Yellow This product
Car stereo with
RCA input
Guide speaker output
(GUIDE SP OUTPUT)
Guide speaker
(e.g. CD-TS37GP)
(sold separately)
15 cm
If you use this unit with a navigation
unit (e.g. AVIC-900DVD), be sure to
connect a guide speaker to this unit’s
guide speaker output terminal.
Audio output
(AUDIO OUTPUT)
15 cm
RCA cable
(sold separately)
When connecting with a car
stereo with FM reception
capability, use a FM modulator
(e.g. CD-V61FM).
