Pioneer AVX-7600 - Manual (Page 6)

5

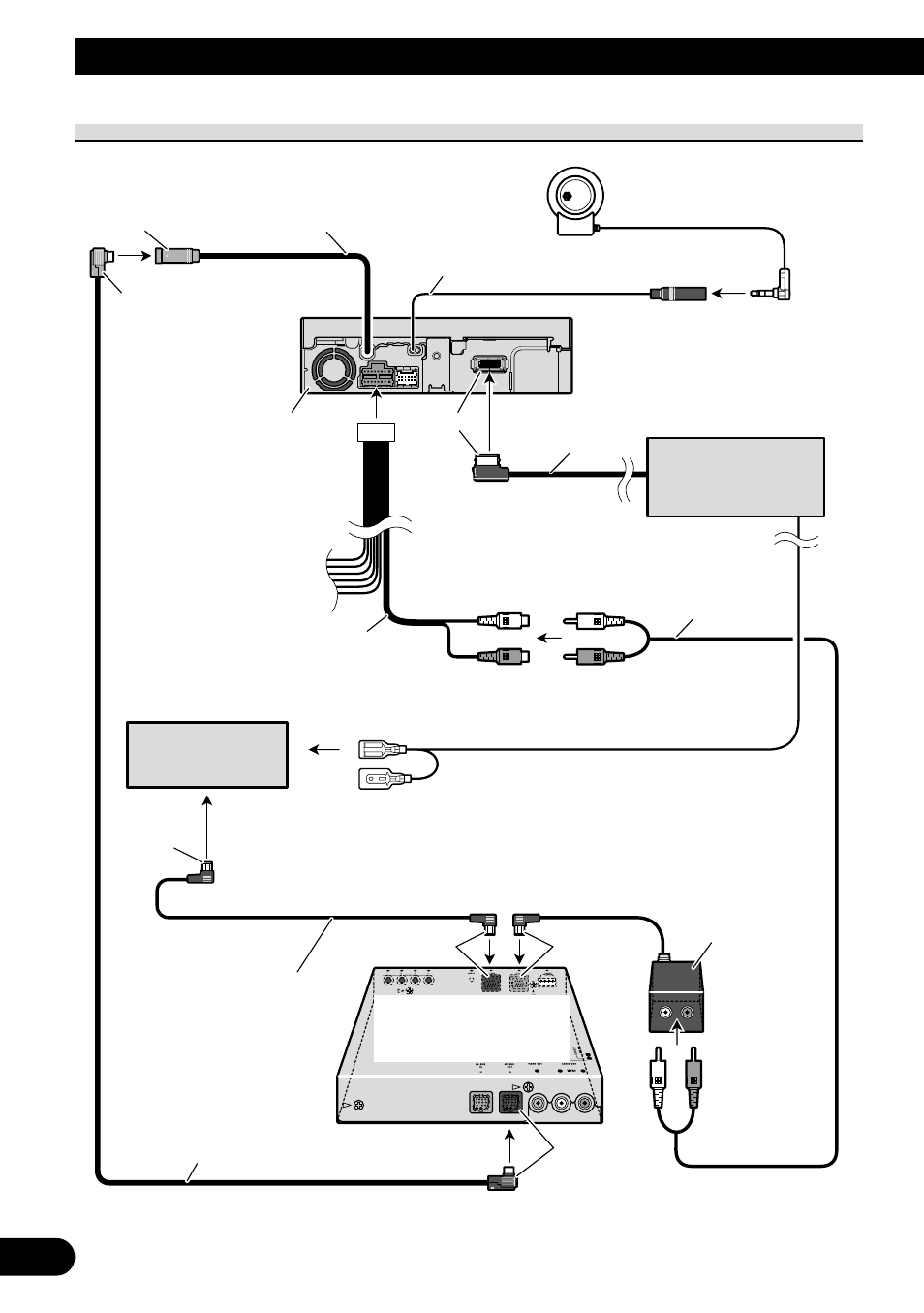

Connecting the Units
When connecting with a Pioneer head unit
Fig. 3
RCA to IP-BUS
inter connector
(e.g. CD-RB10)
(sold separately)
Hide-away TV tuner
(e.g. GEX-P6400TVP)
(sold separately)
AV-BUS input (Blue)
Navigation unit
(e.g. AVIC-900DVD)
(sold separately)
26 pin cable
Yellow
AV-BUS cable (supplied
with TV tuner)
IP-BUS cable (supplied
with TV tuner)
40 cm
Black Blue
Black
Blue
Blue
This product
Head unit
(sold separately)
Guide speaker output
(GUIDE SP OUTPUT)
Guide speaker
(e.g. CD-TS37GP)
(sold separately)
15 cm
If you use this unit with a navigation
unit (e.g. AVIC-900DVD), be sure to
connect a guide speaker to this unit’s
guide speaker output terminal.
To IP-BUS input (Blue)
Yellow/black
Audio output
(AUDIO OUTPUT)
15 cm
RCA cable
(sold separately)
