Fig. 2
4
Note:
• The position of the parking brake switch depends
on the vehicle model. For details, consult the
vehicle Owner’s Manual or dealer.

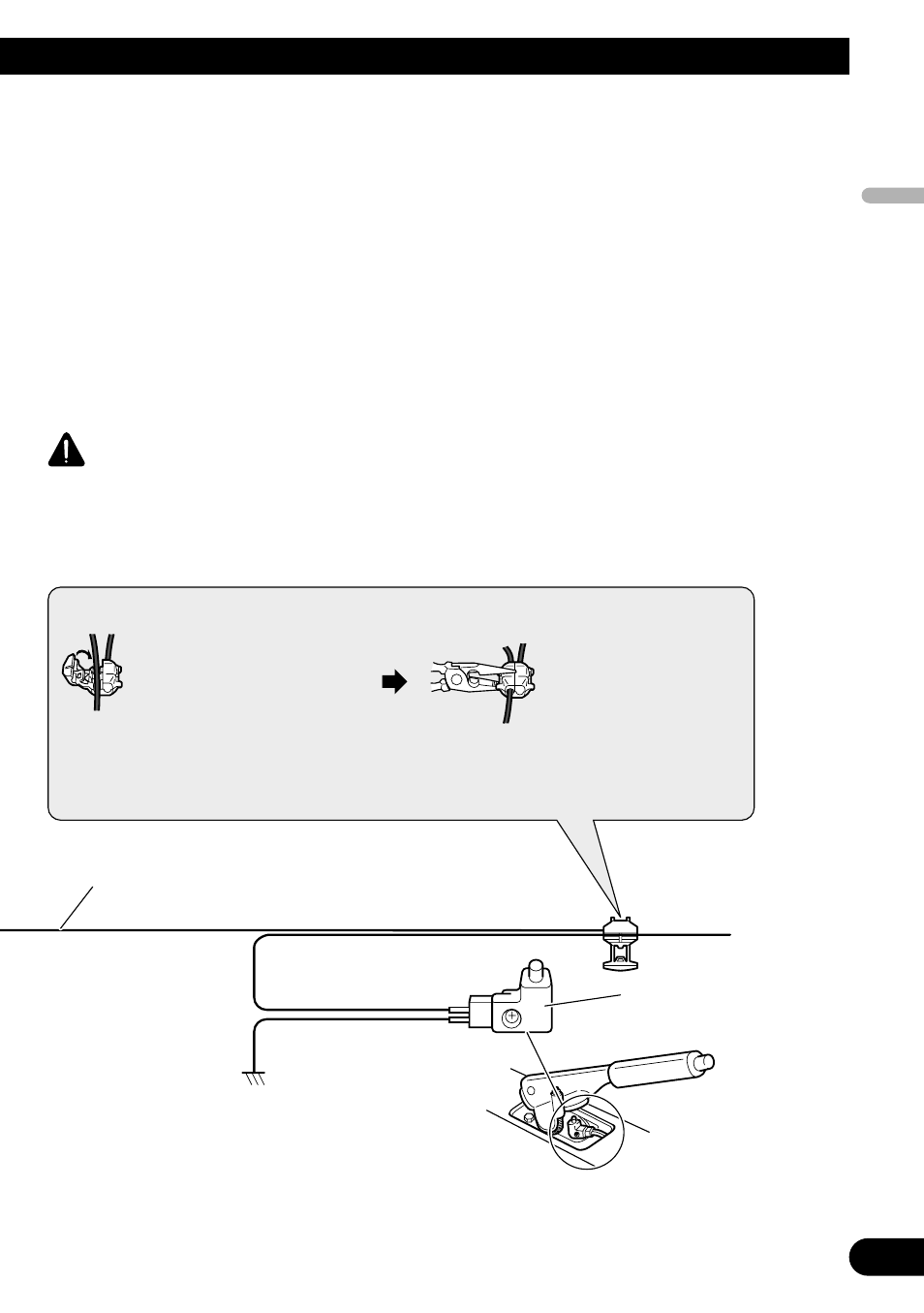

Connection method
Clamp the lead. 1. 2. Clamp firmly with
needle-nosed
pliers.
WARNING
Parking brake
switch Power supply side
Ground side
Light green
Used to detect the ON/OFF status of the parking brake.
This lead must be connected to the power supply side of the parking
brake switch.
LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO
DETECT PARKED STATUS AND MUST BE CONNECTED TO THE
POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER
CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE
LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.
